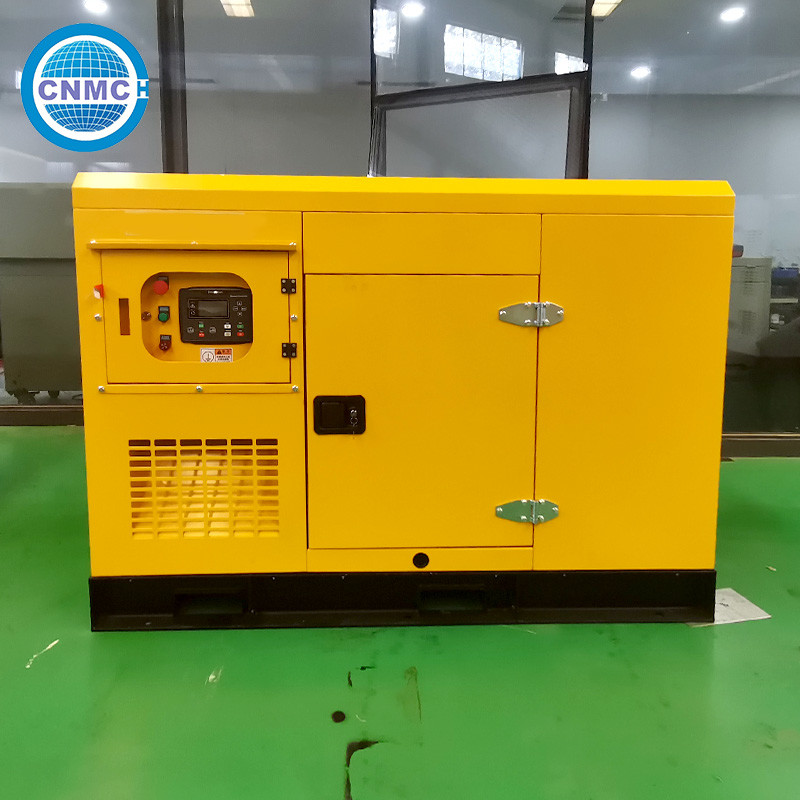

Practical Genset 3 Phase 4 Wire , 50kw Electric 50kva Diesel Generator

Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xDimension | 2200*940*1450mm | Net Weight | 1000kg |
---|---|---|---|
Phase | 3 Phase 4 Wire | Rated Frequency | 50Hz/60Hz |
Rated Power | 50KW/62.5KVA | Rated Speed | 1500rpm/1800rpm |
Rated Voltage | 400/230V | Starting System | Electric Starting |
Highlight | Practical Genset 3 Phase,Genset 3 Phase 4 Wire,Electric 50kva Diesel Generator |
Super Silent 50kw 3 Phase Electric Generator Diesel Power Genset 50kva Diesel Generator
Jining China Machinery Import And Export Company which is one of the largest diesel generator set manufacturers in China.
Our production capacity amounts to 9000 sets per year. We are specialized in making 20kva to 3000kva diesel generator sets under the brands of CUMMINS, PENTA, PERKINS, DEUTZ, DAEWOO, MTU, SHANGCHAI, FAWD, WEICHAI, JICHAI and other engines to equip with STAMFORD, MARATHON, LEROY SOMER, MECC ALTE, SIMENS, ENGGA... Our gensets mainly use DEEPSEA and SMARTGEN control panel.
According to your requests, they can be open type, silent type, mobile type and container type.
Our goal is to provide our users the best and most effective power solution. Customer needs is the direction of our efforts, customer satisfaction is our pursuit.
Any needs in land or marine emergency, backup and primary electric power, please don't hesitate to contact us.
Cummins Diesel Generator 50KVA
Genset Technical Data | |
Genset Model | WP-C50GF |
Rated Voltage | 208/220/230/240V |
Rated frequency | 60HZ |
P.F(COS) | 0.8 |
Prime Power | 45KVA |
Standby Power | 50KVA |
Diesel Engine Technical Data | |
Engine Model | Cummins 4BT3.9-G2 |
No. of Cylinders | 6 cylinders, Vertical in line |
Aspiration | Turbocharged |
Bore×Stroke | 102mm x120mm |
Displacement | 3.9L |
Compression ratio | 17.3:1 |
Prime/Standby Power/Speed | 40KW/44KW / 1800rpm |
Speed Governor | electrical |
Cooling System | Forced water cooling cycle |
Fuel Consumption at 100% Load | 221g/kwh@1800rpm |
Alternator Data | |
Optional brands | Stamford/Leroy Somer/Marathon/WellPower |
Prime power | 45KVA |
Frequency/speed | 60Hz/1800RPM |
Exciter type | Single bearing, Brushless, Self-excited with AVR |
Power factor | 0.8 |
Voltage adjust range | ≥5% |
Voltage regulation NL-FL | ≤±1% |
Insulation Grade | H |
Protection Grade | IP23 |
Control Panel | |
Optional brands | Deespea/Smartgen/ComAp |
1.Q: What is your MOQ of this item?
A:1 Set
2.Q: What is the lead time?
A:7 working days after received the 30%T/T deposit
3.Q: Is it all right to make customer's own brand name?
A:We can be your OEM manufacture with your authorization of brand.
4.Q: Where is your Loading Port?
A:Qingdao or others
5.Q: What are your payment terms?
A:30% TT as deposit,70% TT before Shipment.
6.Q: What is your company's available production capacity?
A:100 Sets per month
7.Q:What's the warranty time of diesel generators?
A:12 Months or 1000 working hours
