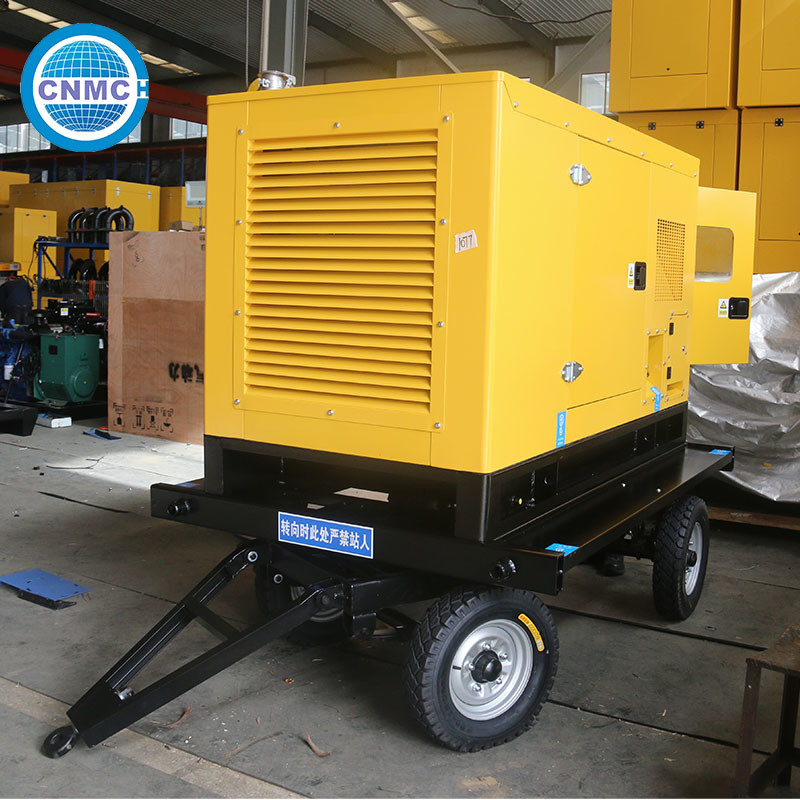

Trailer Mounted Diesel Generator 50KW 62.5KVA Electric

  • Trailer Mounted Diesel Generator 50KW 62.5KVA Electric
  • Trailer Mounted Diesel Generator 50KW 62.5KVA Electric
  • Trailer Mounted Diesel Generator 50KW 62.5KVA Electric
  • Trailer Mounted Diesel Generator 50KW 62.5KVA Electric
  • Trailer Mounted Diesel Generator 50KW 62.5KVA Electric
  • Trailer Mounted Diesel Generator 50KW 62.5KVA Electric
  • Trailer Mounted Diesel Generator 50KW 62.5KVA Electric
  • Trailer Mounted Diesel Generator 50KW 62.5KVA Electric
Place of Origin China
Brand Name CNMC
Certification EPA/CE/ISO
Model Number CN50GF
Minimum Order Quantity 1 set
Price USD 2500-3000/set
Packaging Details wooden case packing
Delivery Time 7 days
Payment Terms L/C, T/T
Supply Ability 1000 sets per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brakes Yes Frequency 50/60Hz
Fuel Capacity 10L Fuel Type Gasoline
Lighting LED Noise Level Low
Power Rating High Power Source Electric
Safety Features Yes Size 2.5m X 1.5m X 1.2m
Trailer Type Generator Voltage 220V
Warranty 1 Year Weight 200kg
Wheels 4
Highlight

Trailer Diesel Generator

,

Diesel Generator 50KW

,

Electric Trailer Mounted Diesel Generator
Leave a Message
Product Description

Hot Sale Chinese Factory Producing Trailer Type 50 KW 62.5 KVA Diesel Generator Set



Main Assemblies:

  • 1, Diesel Engine (Cummins Brand)
  • 2, Generator/Alternator (With AVR)
  • 3, Standard Control Panel (Ordinary Type, LCD Type, ATS Type )
  • 4, Common Base with Canopy(Including Base Oil Tank)

Standard Accessories:

  • 1, Starting Battery and Connector Wire
  • 2, The Vibration Reduction Rubber Gasket
  • 3, Silencer
  • 4, Exhaust Elbow
  • 5, 8-hour Oil Tank
  • 6, Spare Part Case
  • 7, Technical Data
  • 8, Water Tank Radiator,The belt-driving Cooling Fan ,Fan Safety Shield
  • 9, Dry-type Air Filter
  • 10, Fuel Filter
  • 11, Lubricating Oil Filter
  • 12, Starting Motor
  • 13, Self-charging Generator
  • 14, Frequency Meter/Water-thermometer/Oil Pressure Gauge/Battery Voltmeter

Optional Accessories:

  • 1, Preheating Start System
  • 2, Diesel Engine Thermal Protection System
  • 3, Jacket Heater
  • 4, Speeding, High Temperature, High Oil Temperature, Low Pressure Alarm System
  • 5, Breaker
  • 6, Antifreeze Liquid
  • 7, Ground Wire
  • 8, Water Temperature Safety Device
  • 9, Machine Oil

Service Conditions:

  • -- Ambient Temperature: -25°C~40°C
  • -- Altitude: not exceed 1000 Meter
  • -- Rated Voltage: 230/380V or any voltage between 220-440V
  • -- Rated Frequency: 50Hz/60Hz
  • -- Insulation Class: B/F/H
  • -- Working Duty: S1(Continuous)
  • -- Humidity: Lower than 95%
Model   CN50GF
Standby Power KVA 68.75
KW 55
Prime Power KVA 62.5
KW 50
Frequency Hz 50
Voltage V 230/400
Rated speed rpm 1500
Cummins 4BTA3.9-G2: in-line, 4 cylinder, 4 cycle, turbocharged and after-cooler diesel engine
Bore X Stroke (mm) 102x120
Displacement (L) 3.9
Compression ratio 16.5:1
Rated speed (rpm) 1500/1800
Prime power (kW) 50/60
Standby power (kW) 55/65
Fuel injection pump AD injection pump
Governor GAC electric governor / RSV mechanical governor
Steady speed droop ≤1% (Electrical governor) / ≤5% (Mechanical governor)
Lubricant capacity (L) 11
Coolant capacity (L) 7.9 (engine only)
Net weight (kg) 350
Gross weigh (kg) 370
Overall dimension (LXWXH) (mm) 765X582X908
Coolant intake size ￠58 mm
Coolant outlet size ￠45 mm
Flywheel/Flywheel housing SAE3#/ SAE3#
Cooling system Forced water cooling cycle
Performance data
Standard air intake temperature 25℃
Air intake pressure (kPa) 100
Standard light diesel 0# / -10# light diesel
Fuel intake temperature 40
Air intake restriction (mmHg) 251
Exhaust back pressure (mmHg) 76
Lubrication oil 15W40-CF4 Upgrade
