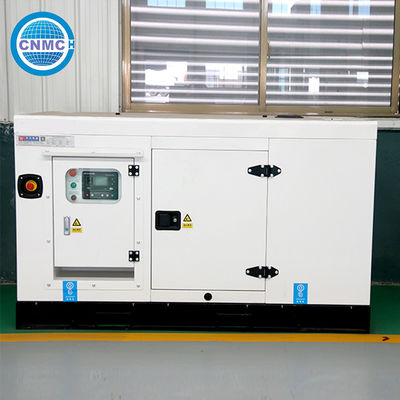

Single Phase Silent Type Generator Set 1800RPM 10KVA Soundproof
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cooling System | Air Cooled | Dimension | 2200*940*1450mm |
|---|---|---|---|
| Frequency | 50Hz | Fuel Tank Capacity | 25L |
| Fuel Type | Diesel | Noise Level | Low |
| Phase | Single | Power Rating | 10KVA |
| Product Name | Silent Type Generator | Speed | 1800 RPM |
| Starting System | Electric | Voltage | 220V |
| Warranty | 1 Year | Weight | 900kg |
| Highlight | Single Phase Silent Type Generator,Silent Type Generator 1800 RPM,10KVA Silent Diesel Generator Set |
||
Product Description
China Manufacture Hot Sale 10Kva Super Silent Diesel Generator 10Kw Generator Diesel Soundproof
Our products had been approved by CE, EPA, CARB,Canada CSA standard, EII emission standard,GS standard, and ISO9001:2000. Products served to EU,North America, Middle East, Africa, Australia,Russia and so on, over 70 countries and regions,especially providing service for global well-known brand.
Product Information
| Generator | Model | JD7500T |
| Rated Output kVA(kW) | 5(5kW) | |
| Max. Output kVA(kW) | 5.5(5.5kW) | |
| Power Factor cos | 1 | |
| 100% Copper Coil | √ | |
| AVR | √ | |
| AC Load (Volts) | 230/240 | |
| Phase, Frequency | Single,50Hz | |
| Rated.Amperage | 21.7 | |
| Engine | Starting Method | Electric |
| Engine Type | 1-cylinder,vertical ,4-stroke,air-cooled diesel engine,direct injection | |
| Engine Model | JD188FAE | |
| Displacement cc | 456 | |
| Horse Power hp | 10 | |
| Fuel Tank Capacity (L) | 15 | |
| 100% Load (Hrs) | 6 | |
| Engine Oil Capacity | 1.65L | |
| dBA at 23ft (7m) | 73 | |
| Control Panel |
Panel Type | General |
| AC VoltMeter | √ | |
| Low Oil Alert Lamp | √ | |
| Socket | Optional | |
| Others | Structure type | Silent |
| Battery | 12V 30AH | |
| Socket | Negotiate | |
| Wheel Kits | 4x4" wheels | |
| Packing | Net Weight (kgs) | 150 |
| Gross Weight (kgs) | 160 | |
| Packing(L*W*H,mm) | 2200*940*1450 | |
| Q'ty(20GP/40HQ) | Negotiate | |
| Warranty | Year / Hours | 1 / 250 |
