IP23 Stable Super Quiet Diesel Generator , Industrial Weichai Marine Generator

  • IP23 Stable Super Quiet Diesel Generator , Industrial Weichai Marine Generator
Place of Origin China
Brand Name CNMC
Certification EPA/CE/ISO And So On
Model Number CN200GF
Minimum Order Quantity 1 SET
Price negotiable
Delivery Time 5-8work day
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100set one week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model Number CN200GF License Freeware
Alternator Brand Stamford/Marathon/Leroy Somer Engine Brand WEICHAI
Insulation Class H Model WEICHAI Diesel Generator
Noise Level ≤65dB(A) Protection Grade IP23
Rated Voltage 380V/400V/415V Starting System Electric/Manual
Highlight

IP23 Super Quiet Diesel Generator

,

Stable Super Quiet Diesel Generator

,

Industrial Weichai Marine Generator
Leave a Message
Product Description

Top Quality Weichai Engine Silent Genset Diesel Generator 200kva Generator Set

High power 200kva open type diesel generator set with ATS and base fuel tank open type generator

Product Requirements:

1. Working environment: the altitude is not higher than 1000 m; ambient environment temperature is -5℃~+40℃.

2. Noise requirement: low power range:(not higher than 500kW), the noise is required within 65~75dB(A)/7m; high power range:(above 500kW) noise is required t within 75~90dB(A)/7m.

3. Safety measures: rain, sand, rust and corrosion proof.

4. Performance guarantee: Stable operation; and prime generating set can operate on load for 500 hours continuously, and non-fault time averages at 2000-3000 hours.




 CNMC Gensets’Advantages

1. Adopt world-famous engines and alternators with high reliability;

2. Prime generating sets can work continuously on load for 500 hours, withnon-fault time averaging at 2000-3000 hours, and fault restoration time averaging at 0.5 hour.

3. Intelligent monitoring, parallel and grid-connected technology realize the generating set power the most perfect black start seamless connection with city electricity.

4. Advanced weatherdust and sand proof design, marvelous spray coating technology and excellent tankenable generating sets to adapt to extremely hostile environment such as ultra-high and low temperature, high salt content and high humidity.

Tailored product designs and material selection can meet the requirements of various industries and fields.



200kva diesel generating set technical specifications
Technical parameters of generator set:
Unit model: CN200GF Steady state voltage adjustment rate (%): ≤± 1
Output power: 160Kw Voltage fluctuation rate (%): ≤ ± 0.5
Power factor: COSΦ = 0.8 (lagging) Transient voltage adjustment rate (%): + 20 ～ －15
Output voltage: 400V / 230V Voltage stabilization time (s): ≤1
Output current: 900A Steady state frequency adjustment rate (%): ≤ ± 1
Rated frequency: 50Hz Frequency fluctuation rate (%): ≤ ± 0.5
Rated speed: 1500rpm Transient frequency adjustment rate (%): + 10 ~ -7
Fuel grade: (standard) 0 # light diesel (normal temperature) Frequency stabilization time (S): ≤3
Dimensions: 3450×1620×2150(L×W×H mm) Fuel consumption (100% load): 207g / kW · h
Weight: 4650kg Acoustic noise (LP7m): ≤100dB (A)
Technical parameters of diesel engine:
Brand/origin: Weichai Cooling method: closed water circulation cooling
model: KPV550 Oil supply method: direct injection
Number of cylinders / Dare to mention structure: 12/ V Type Governor Type: Electric
Bore stroke: 135 × 155 mm Air inlet system: Turbo
Compression ratio: 16: 1 Overload capacity: 110%
Start mode: DC 24V Electric start Speed: 1500rpm
Technical parameters of generator:
Brand: Copper Brushless Motor Protection level: IP22
Model: CN200GF Wiring mode: Three-phase four-wire, Y-connection
Rated power: 160kW Adjustment method: AVR (Automatic Voltage Regulator)
Rated voltage: 400V / 230V Output frequency: 50Hz
Insulation class: H class Output factor: COSΦ = 0.8 (lag)
The standard configuration of the generator set is as follows:
ØDirect injection internal combustion engine (diesel);
Ø AC synchronous generator (single bearing);
ØSuitable for ambient temperature 40 ℃ -50 ℃ radiator water tank, belt driven cooling fan, fan safety shield;
Ø Power generation output air switch, standard control screen;
Ø Unit steel common base (including: unit vibration damping rubber pad);
Ø Dry air filter, fuel oil, lubricating oil filter, start motor, and equipped with self-charging generator;
Ø Random information: original technical documents of diesel engines and generators, instructions for generator sets, testreports, etc.

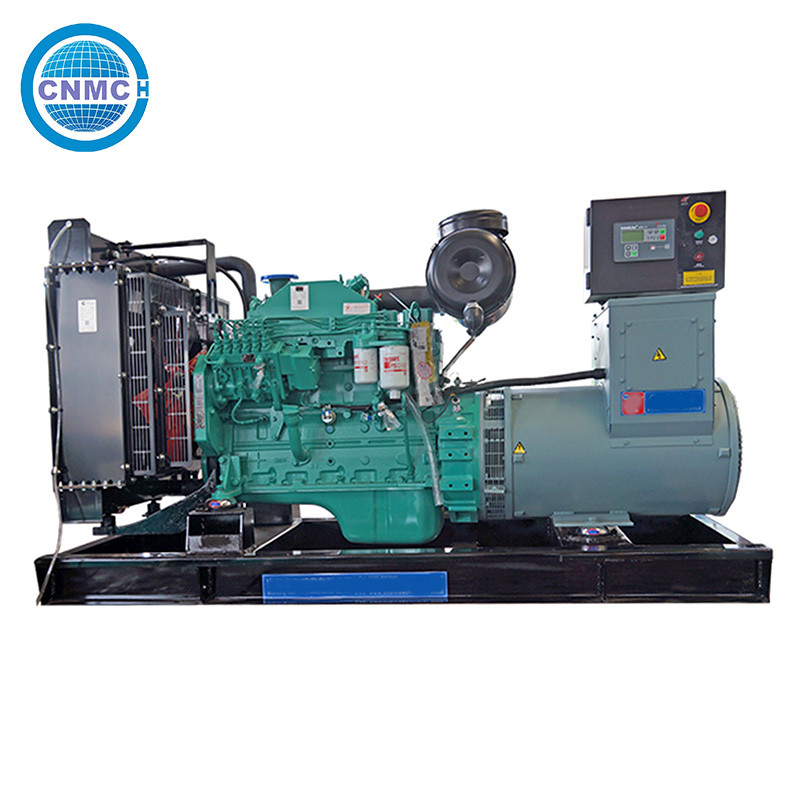

IP23 Stable Super Quiet Diesel Generator , Industrial Weichai Marine Generator 0



Specification
Generator Supply Scope
Engine
Brand new water cooled diesel engine
Alternator
100% copper wire brushless alternator, single bearing, IP21/22, H insulation class
Base Frame
Heavy duty steel base frame
Radiator
40℃ for open type, 50℃ for soundproof type
Vibration Damper
Vibration damper between Engine/Alternator and base frame
Silencer
Industrial silencer with flexible bellow and elbow
Filters
Standard Air filter, Oil filter, Fuel filter and oil-water separator
Battery
Electric start and 24V charger. 12/24V storage batteries
Fuel Tank
Average 8 hours base fuel tank
Tool Kits & Manuals
Standard tool kits and complete operation/maintenance/manuals for Generator/Engine/Alternator/control panel, etc.

IP23 Stable Super Quiet Diesel Generator , Industrial Weichai Marine Generator 1IP23 Stable Super Quiet Diesel Generator , Industrial Weichai Marine Generator 2

IP23 Stable Super Quiet Diesel Generator , Industrial Weichai Marine Generator 3

Search By Type>>
Open Type
Silent type
Trailer Type
Containerized Type
/

IP23 Stable Super Quiet Diesel Generator , Industrial Weichai Marine Generator 4IP23 Stable Super Quiet Diesel Generator , Industrial Weichai Marine Generator 5

Now we have 60 technicians, 25 engineers and 8 senior engineers. We have 12 branches in China and 20 offices in Africa, Southeast Asia.
new factory covers 30,000 m³, located in shandong, the largest city in central China. Titan products are submit to CE, GS, IS08525, GB/T2820-97 and quality certified by IS09001 and ISO14001 management. We are OEM factory of Cummins, Perkins, MTU,
Doosan, MAN, Liebherr, Googol, Stamford, Marathon, Leroy somer and Engga etc.
