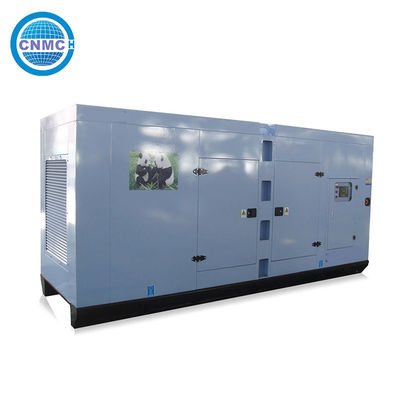

Durable Silent type Diesel Generator Super 50Hz Waterproof For Home

  • Durable Silent type Diesel Generator Super 50Hz Waterproof For Home
Place of Origin China
Brand Name CNMC
Certification EPA/CE/ISO And So On
Model Number CN80GF
Minimum Order Quantity 1
Packaging Details Plywood,plastic film packing
Delivery Time 5-8 work day
Payment Terms T/T
Supply Ability 100+set+one week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 80kva Diesel Generator Alternator Shanhua,Stamford, Marathon, Leroy Somer
Control Panel Deepsea,SmartGen Continuous Operating Time 8 Hours
Cooling System Air-cooled Frequency Rating 50Hz
Product Name Silent Type Generator Starting System Electric
Voltage Rating 220V Warranty 1 Year
Highlight

Durable Diesel Generator Super Silent

,

Diesel Generator Super Silent 50Hz

,

Waterproof Silent Generator For Home
Leave a Message
Product Description
Single And Three Phase Generators 20kva 30kva 40kva 50kva 60kva 80kva Electric Home Silent Genset Diesel Generator Set
TECHNICAL PERFORMANCE

1. Noise control: The noise can be controlled within 60~75 dB(A) by control exhaust noise, mechanical noise and combustion noise which generates during operation, cooling fan and exhaust channel noise, and intake noise.
The super silent Gen-set within 15kVA has a minimum noise of 60 dB(A) at 1 meter.
The super silent Gen-set within 15-30kVA has a minimum noise of 62 dB(A) at 1 meter.
The super silent Gen-set within 30-50kVA has a minimum noise of 65 dB(A) at 1 meter.
2.Working voltage: 50Hz: 380V-440V; 60Hz: 190V-240V, 380V-480V.
CUSTOMIZED SOLUTIONS

1. The canopy design for super silent Gensets can be customized according to user requirements, such as space, transportation, installation, dust-proof, rain-proof and snow-proof, etc.
2. The design of base frame (including base fuel tank) can be customized according to actual needs such as large-capacity fuel tank, which can meet running time of 500 hrs at most. We also provide customized forklift holes, lifting slings, lifting beams, etc. For easy to installation and movement, etc.
4. The design of air inlet and outlet and their passages can be customized according to the actual application environment and user needs.
5. Customize remote monitoring system and operating system.

OUR ADVANTAGES

1. CNMC use world-famous engines, such as Perkins from UK, Cummins from USA and MTU from Germany.
2. As well as alternators, such as Stamford from UK, Marathon from USA and Meccalte from Italy
3. We also use Deepsea controller for our control panel, which is original from UK.
4. Our latest design is Europe style, which is elegant and high-end.
5. We take use of powder painting to deal with our canopy surface, which could be rustproof, fume proof and fade proof. All screws outside of canopy are stainless to make sure CNMC generators clean, beautiful and strong, even if it has worked for a long time.
6. CNMC canopy makes use of unique deep bucket design to reduce the noise level with high quality flame-retardant and sound-absorbing sponge, as well as take in air from above, which will avoid taking dust from the ground, to keep clean of inner side, thus extend lifespan of generators.
7. We design self-governed controller box to monitor CNMC generator. When we start the generator, we don’t need to open the generator door, which could make sure the low noise and keep safe for user. Electrical design is complied with national standard, neat and clear. Every cable marks its terminal number, convenient for check and maintenance. We use micro circuit breaker to take place of fuse to avoid not finding fuse problem.
8. Hanging rod as standard specification at the top of generator, which is very considerate to assemble and move.
9. Below 100kva generators, forklift grooves are also standard, which is also more convenient to move it.
10. Super silent type generators are with 4 doors: double side, double doors, which make the operating space bigger. This considerate design offers our customers convenience for keep and maintenance.
11. CNMC generators also equip a lock for control panel to prevent unprofessional operation. Fuel inlet is set inside of generator to keep safe.
12. CNMC generators are equipped bottom fuel tank for 8 hours running capacity.
13. Emergency stop button is set in the middle pillar. It could shut down the generator to avoid accidents.
14. CNMC batteries are maintenance free with reliable quality. We equip the battery switch for generator to avoid leakage.
15. CNMC radiators are copper, more reliable to keep high efficiency of heat dispersion.
16. Yellow, white, blue and red are optional for generators’ color
17. European style heat shield cover is as optional specification to reduce the temperature of generator.
18. Automatic transfer switch is also optional according to customer’s choice. It could make sure power supply continuously.

Durable Silent type Diesel Generator Super 50Hz Waterproof For Home 0

CNMC silent type gensets could be divided into two kinds: portable type and super silent type, as follows:

Portable type is suitable for Kubota and Lees series generators.

The power range is 8-40kVA. This type is with fashionable design, tight structure and easy to move,

which is widely used in home use.

Super silent type is suitable for Cummins, Perkins, Doosan, MTU and Mitsubishi series generators.

The power range is 8-4000kVA. Unique “panzer base frame” design is higher and stronger,

which is fit for industrial and commercial use. Besides, LEES make use of variety design to reduce the noise,

which has obvious effect.

Durable Silent type Diesel Generator Super 50Hz Waterproof For Home 1

Durable Silent type Diesel Generator Super 50Hz Waterproof For Home 2

Durable Silent type Diesel Generator Super 50Hz Waterproof For Home 3

Durable Silent type Diesel Generator Super 50Hz Waterproof For Home 4

Durable Silent type Diesel Generator Super 50Hz Waterproof For Home 5

Durable Silent type Diesel Generator Super 50Hz Waterproof For Home 6
