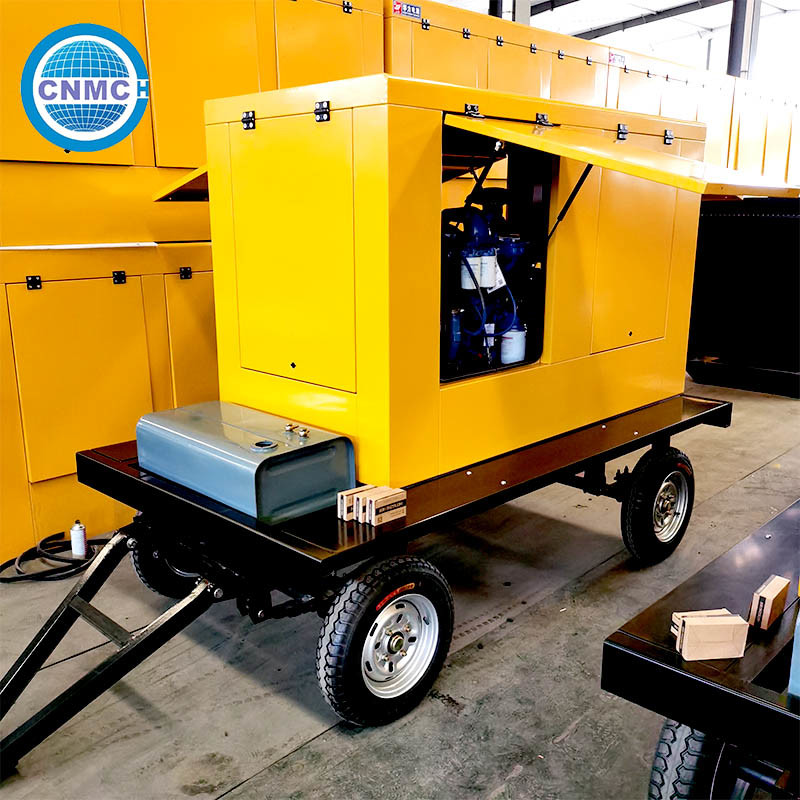

Yellow Silent RICARDO Diesel Generator 25KVA 30KVA 20KW For Marine
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cooling System | Air/Water | Frequency | 50/60Hz |
|---|---|---|---|
| Fuel Type | Diesel | Noise Level | 90dB(A) |
| Product Name | RICARDO Diesel Generator | Speed | 1500/1800rpm |
| Starting System | Electric/Manual | Warranty | 1 Year |
| Highlight | Yellow RICARDO Diesel Generator,Silent RICARDO Diesel Generator,20KW Silent Diesel Generators |
||
Product Description
30KVA Yellow Silent Diesel Generators Marine Used Generators 20kw 25kva Diesel Generator Price
Detailed description
The novel design for gensets
Output:6.5kw-1600kw
Reliability quality and performance
Famous diesel engine
Warranty on global
Diesel generator set Silent / Soundproof type – Open type
Safety – Stability – Economy - Sufficient power
1. Our cooperate with famous diesel engine – Cummins, Perkins, Weichai, MTU
2. Brushless alternator -- Stamford, Leroy Somer, Marathon, JET.
3. Solid steel outer skin – 2MM to 4MM steel
4. High density sound-absorbing material -- sound insulation, fireproofing
5. New design of turn-back type for air inflow & air outlet which can reduce the noise and advance engine efficiency.
6. Beautiful & practicably design, Bottom hole for fork, Water outlet & oil outlet
7. Double open door on both sides of the gensets. Spacious doors can check for every part of the engine and alternator.
Diesel generator set Silent / Soundproof type – Open type
Our gensets compliance with all main standards, such as : GB/T2820, ISO8528,IEC34, CE, EPA Tier4
standards
Prime output power: 8kw-1600 kw (10kva-1600kva)
Rated voltage: 120V/240V, 220/380V, 230V/400V, 254V/440V etc.
Phase/connecting: 3 phase, 4wire.
Rated frequency: 50Hz@1500rpm, 60Hz@1800rpm
Alternator excited type: Brushless, self excited or PMG
Insulation: Class H
Protection: IP21~IP23
Voltage regulation: AVR automatic control
Altitude above sea level: ≤1000 meters
Ambient air temperature: ≤40°C
Relative air humidity: ≤ 90%
Controller syste
1. PLC-800 model Standard control panel, including digital genset control model:HGM170, voltmeter, frequency meter, ampere meter, water temperature gauge, oil temperature gauge, oil pressure gauge, emergency button, preheating button, battery voltage gauge, running calculagraph, fuel level meter, circuit breaker
2. PLC-8000 (AMF) model Standard control panel, including digital LED genset control model:HGM6120, key switch, fuel level meter, Power indicator lamp, circuit breaker
Optional: Automatic transfer switch (ATS)
| Model | 400V / 50Hz / 1500RPM | Diesel Engine | Silent type Dimension (L*W*H)(mm*mm*mm) | ||
| Standby | Prime | Model | Brand | ||
| (KVA/KW) | (KVA/KW) | ||||
| YD-12 | 12/9.6 | 11/8.8 | YSAD380G | YANGDONG | 1860*900*1000 |
| YD-15 | 15 /12 | 13.5/10.8 | YD480G | 1900*900*1000 | |
| YD-25 | 25/20 | 22.5/18 | YSD490G | 2100*950*1100 | |
| YD-30 | 30/24 | 27.5/22 | Y4100G | 2200*990*1250 | |
| YD-38 | 37.5/30 | 35/28 | Y4102G | 2200*990*1250 | |
| Model | 120V - 240V 60Hz / 1800RPM | Diesel Engine With EPA tire 4 | Silent type Dimension (L*W*H)(mm*mm*mm) | ||
| Standby | Prime | Model | Brand | ||
| (KVA/KW) | (KVA/KW) | ||||
| YD-18 | 17.5/14 | 16/13 | YD385ZLD (EPA) | YANGDONG | 1860*900*1000 |
| YD-25 | 25/20 | 22.5/18 | YD480ZLD (EPA) | 1900*900*1000 | |
| YD-30 | 30/24 | 27.5/22 | YND485ZLD (EPA) | 2100*950*1100 | |
| YD-44 | 44/35 | 40/32 | YSD490ZLD (EPA) | 2200*990*1250 | |
| YD-46 | 46/37 | 42.5/34 | YSD490ZLD (EPA) | 2200*990*1250 | |
