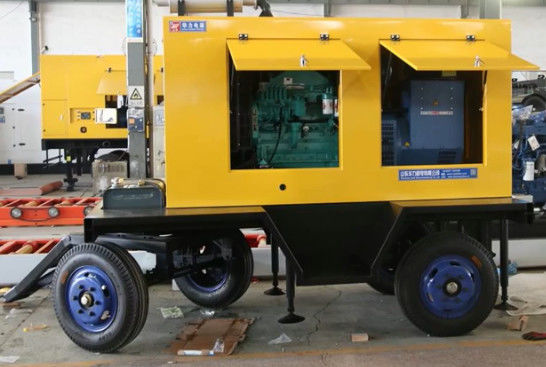

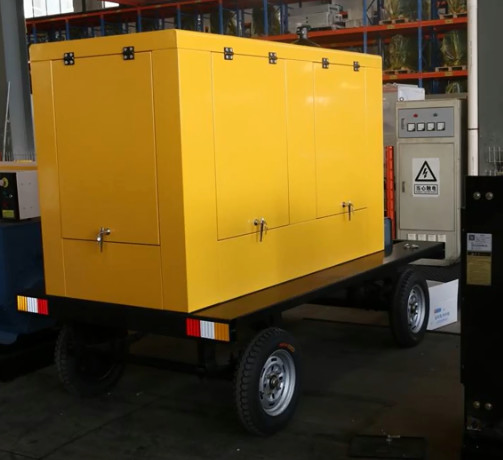

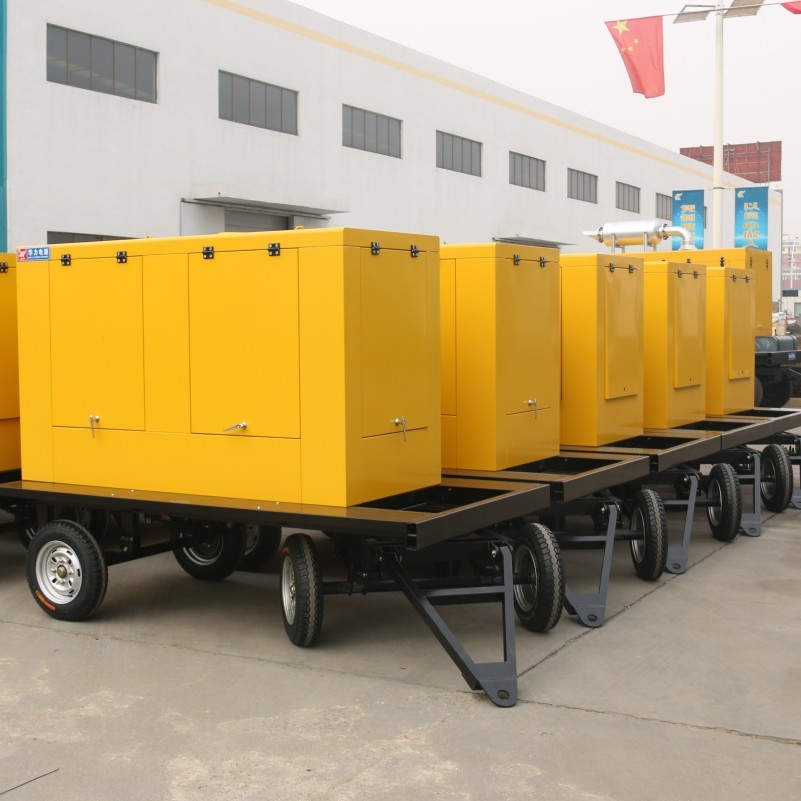

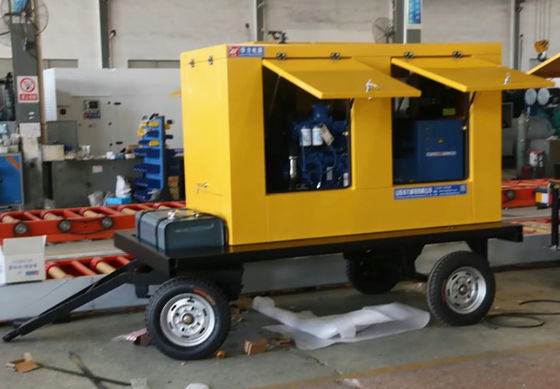

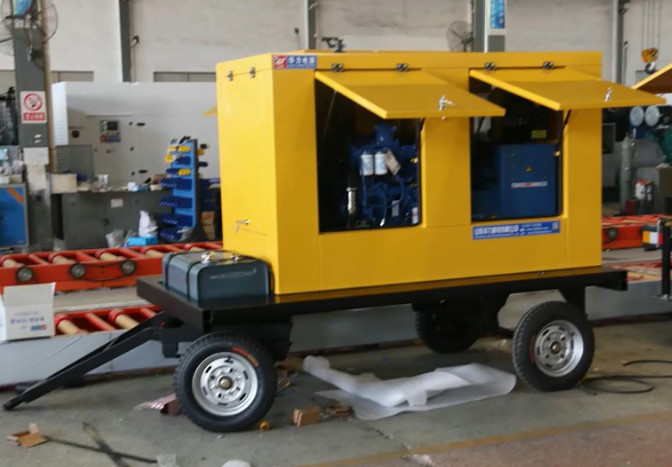

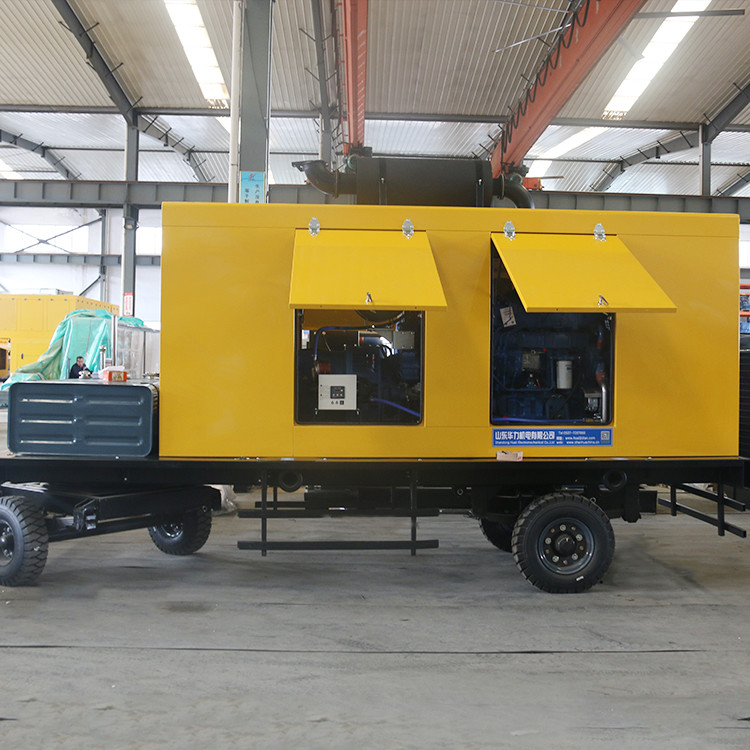

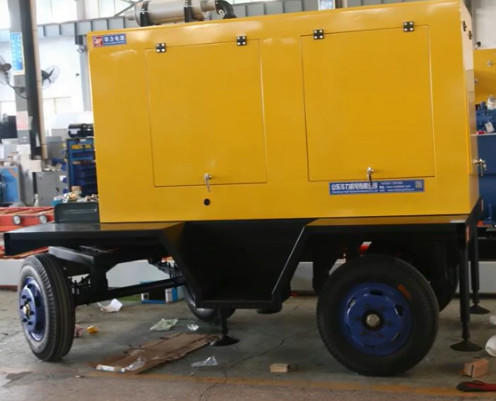

Mobile Trailer Gasoline Power Generator Aluminum Heavy Duty Stable

  • Mobile Trailer Gasoline Power Generator Aluminum Heavy Duty Stable
  • Mobile Trailer Gasoline Power Generator Aluminum Heavy Duty Stable
  • Mobile Trailer Gasoline Power Generator Aluminum Heavy Duty Stable
  • Mobile Trailer Gasoline Power Generator Aluminum Heavy Duty Stable
  • Mobile Trailer Gasoline Power Generator Aluminum Heavy Duty Stable
  • Mobile Trailer Gasoline Power Generator Aluminum Heavy Duty Stable
Place of Origin China
Brand Name CNMC
Certification EPA/CE/ISO And So On
Model Number CN600GF
Minimum Order Quantity 1 set
Price USD 2500-3000/set
Packaging Details wooden case packing
Delivery Time 7 days
Payment Terms L/C, T/T
Supply Ability 1000 sets per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Trailer Diesel Genertor Type Trailer
Engine International Brand Engine And Chinese Brand Engine Options Automatic Transfer Switch
Generator Type Household Power Portable Trailer Diesel Generator Color Customers' Request
Controller Smartgen DeepSea Keyword Gnerator
Control Panel LCD Digital Display Use Industrial And House
Body Aluminum Brakes Disc
Frame Steel Fuel Capacity Large
Lighting LED Power Output High
Power Source Electric Safety Features High
Suspension Heavy Duty Towing Capacity High
Trailer Type Generator Warranty Extended
Weight Capacity Heavy Wheels Heavy Duty
Highlight

Gasoline Power Generator Aluminum

,

Gasoline Power Generator Heavy Duty

,

Stable Mobile Trailer Generator
Leave a Message
Product Description

Chinese Manufacturer Mobile Trailer Generator 20KW 30kw 50kw 100kw 150kw 700kw Silent Electric Diesel Generator

Diesel generator Specifications
1. Powered by reliable engines
2. Branded alternator
3. Open type, silent type or super silent type generator
4. ISO, CE certified

Genset specs:
Engine Brands: Powered by Cummins,Powered by Perkins,Powered by Lovol,Powered by Deutz,Powered by Doosan, Powered by Mitsubishi, Powered by Kubota or other reliable Chinese engines such as Fawde and Laidong.
Rated output: 2 to 2,000kW/2 to 2,500kVA
Rated voltage: L-N 110 to 277V, L-L 220 to 480V
Rated frequency: 50/60Hz
Cooling method: closed water-cooled or air-cooled
Starting method: electric start or recoil start
Rated speed: 1,500/1,800/3,000/3,600rpm
Noise level: 56 to 75dB, 7 meters away

Alternator:
Brands: By Stamford, By Leroy Somer, By Mecc Alte and Keypower brushless alternator
Rated output: 8 to 2,000kW/10 to 2,500kVA
Rated voltage: L-N 110 to 277V, L-L 220 to 480V
Rated frequency: 50/60Hz
Phase: 3-phase, 4-wire or 1-phase, 2-wire
Connection: y or other type connection
Rated speed: 1,500/1,800rpm
Excitation: harmonic excitation or phase compound or brushless
Voltage regulation: AVR automatic
1.0% voltage regulation in static conditions (maximum)
Protection class: IP23
Control panel: Deepsea, ComAp, Smartgen




600kw diesel generator (optional engine brands, alternator brands and Control panel)




Rated power

Engine

Alternator

Control panel

20 kw~1300kw

Cummins

Stamford
Leroy somer
Marathon
Mecc alte
ABB
Chinese alternators

Deepsea
ComAp
Smartgen

8kw~1600kw

Perkins

68kw~504kw

20 kw~500kw

Deutz

220 kw-2400kw

MTU

600kw-1800 kw

Mitsubishi

50kw-650kw

Doosan

2kw~2500kw

Chinese engine



Product Description
Powered by Cummins engine KT38-GA genset 750kva silent 600kw diesel generator price



Engine Model

KT38-GA

Engine manufacturer

CUMMINS

Number of Cylinders

12 cylinders

Cylinders arrangement

60°Vee

Cycle

4 stroke

Aspiration

Turbocharged and aftercooled

Bore×Stroke

159mm x159mm

Displacement

37.8L

Compression ratio

14.5:1

Prime Power/Speed

711KW/1500RPM

Standby Power/Speed

789KW/1500RPM

Speed Governor

Electrical

Cooling System

Forced water cooling cycle

Steady speed droop

≤1%

Total lubrication system capacity

50L

Coolant capacity (engine only)

123.8L

Fuel Consumption at 100% Load

214g/kw.h

Starter Motor

DC24V

Alternator

DC24V

Powered by Cummins engine KT38-GA genset 750kva silent 600kw diesel generator price
Alternator brand

Stamford, Marathon, Leroy Somer, Mecc-alte, TWGII…

Prime power

600KW

Frequency/speed

50HZ/1500rpm (60Hz/1800rpm)

Exciter type

Single bearing, Brushless, Self-excited

Power factor

0.8

Voltage adjust range

≥5%

Voltage regulation NL-FL

≤±1%

Insulation Grade

H

Protection Grade

IP23

600kw diesel generator (Control panel)
Brand

The control module gives digital readouts of:
Generator voltage;
Output frequency;
Engine speed;
Battery voltage;
Engine hours run.
The control module has indicators for failure
information:
Overspeed/underspeed,
Emergency stop
Low oil pressure;
High water temperature
Failure to start
Battery charger failure
Automatic shutdown occurs under:
Low engine oil pressure;
High engine water temperature;
Overspeed/underspeed;
Failure to start after three attempts.

Optional-addtional parts
Engine

Fuel System

Cooling system

Exhaust system

Coolant Heater
Lube oil heater
Electronic governor
Engine oil temperature

External Tank
Water Separator

50-60 Radiator,
Remote radiator
Cooling tower

Heavy Duty air filter
Silencer Enclosures

Alternator

Control System

Others

Voltage Connections

Anti Condensation
Heater
Permanent
Magnet Generator-PMG
Drop CT-for paralleling

Remote Control Panel
Auto Transfer Switch
ATS-Control Panel
Paralleling System
Electricity Output Cabinet

Rainproof Type
Soundproof Type
Containerized Type
Trailer Type
Spare Parts

480/277V
440/254V
416/240V
400/230V
380/220V
240/139V
220/127V
208/120V

High Voltage of 6.3kv, 6.6kv, 10.5kv, 13.8kv etc are available
