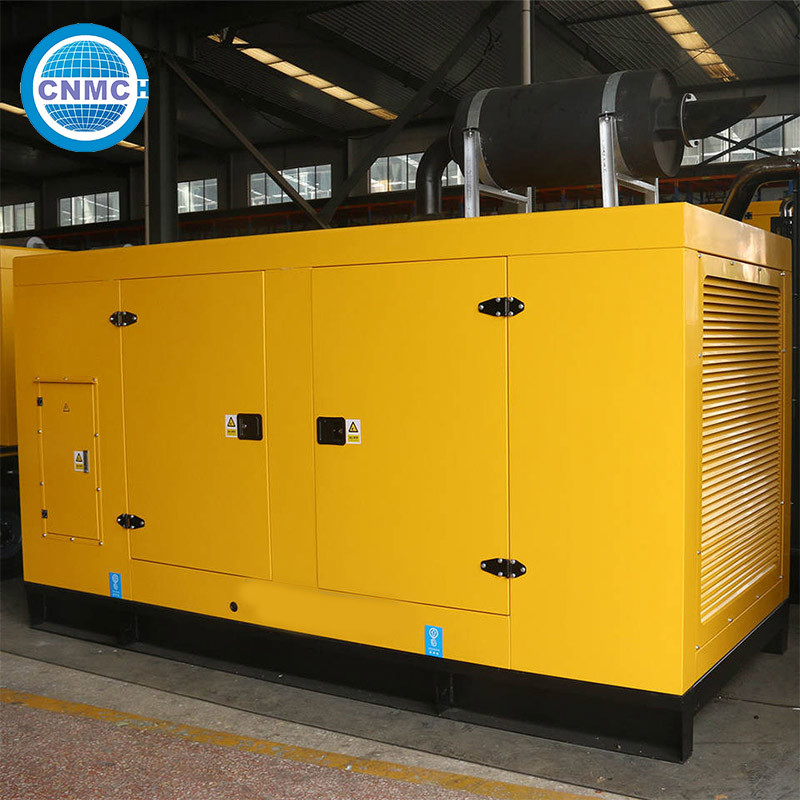

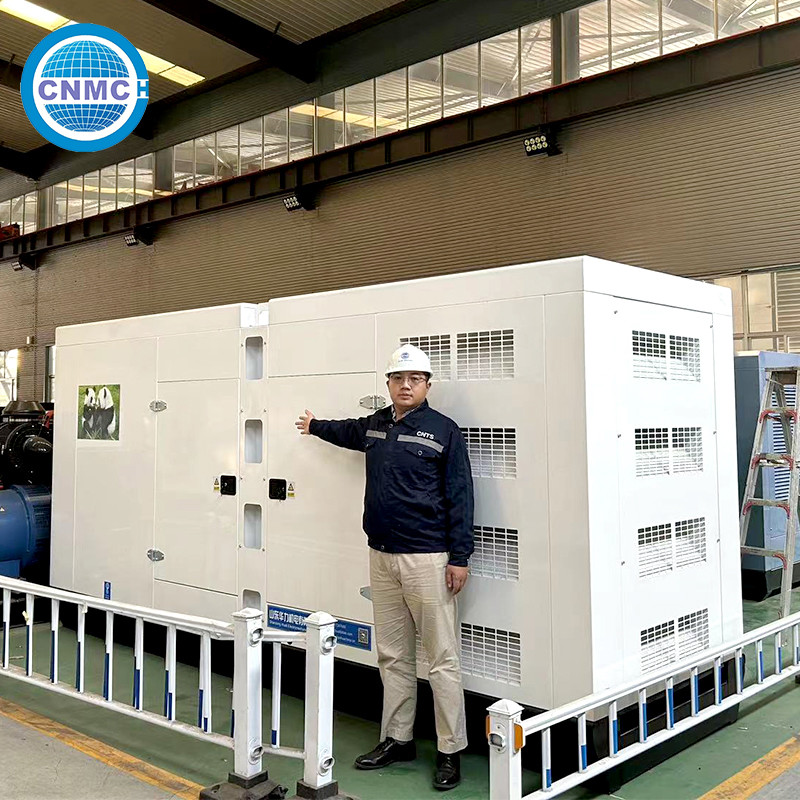

Soundproof CUMMINS Diesel Generator 3 Phase 200Kva 160Kw Automatic

  • Soundproof CUMMINS Diesel Generator 3 Phase 200Kva 160Kw Automatic
  • Soundproof CUMMINS Diesel Generator 3 Phase 200Kva 160Kw Automatic
  • Soundproof CUMMINS Diesel Generator 3 Phase 200Kva 160Kw Automatic
Place of Origin CHINA
Brand Name RICARDO
Certification CE
Model Number CN200GF
Minimum Order Quantity 1 set
Price usd 2500-3000/set
Packaging Details wooden case
Delivery Time 7-10 work days
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 1000

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Control System Automatic Control Cooling System Water Cooling
Frequency 50/60Hz Fuel Diesel
Fuel Consumption ≤205g/kw.h Model CUMMINS Diesel Generator
Noise Level ≤90dB Speed 1500/1800rpm
Starting System Electric Start Warranty 1 Year
Highlight

Soundproof CUMMINS Diesel Generator

,

CUMMINS Diesel Generator 3 Phase

,

Automatic Soundproof Diesel Generator
Leave a Message
Product Description

3 Phase 50Hz 200 Kva Soundproof Diesel Genset Super Silent 160 Kw Diesel Generator Price



CNMC  which is one of the largest diesel generator set manufacturers in China mainland.

Our production capacity amounts to 9000 sets per year. We are specialized in making 20kva to 3000kva diesel generator sets under the brands of CUMMINS, PENTA, PERKINS, DEUTZ, DAEWOO, MTU, SHANGCHAI, FAWD, WEICHAI, JICHAI and other engines to equip with STAMFORD, MARATHON, LEROY SOMER, MECC ALTE, SIMENS, ENGGA... Our gensets mainly use DEEPSEA and SMARTGEN control panel.

According to your requests, they can be open type, silent type, mobile type and container type.

Our goal is to provide our users the best and most effective power solution. Customer needs is the direction of our efforts, customer satisfaction is our pursuit.

Any needs in land or marine emergency, backup and primary electric power, please don't hesitate to contact us.



Genset Technical Data
Genset Model CN200GF
Rated Voltage 400/230VCan be adjusted)
Rated Frequency 60HZ
P.F(COS) 0.8
Prime Power 220KVA
Standby Power 200KVA



Cummins Engine Data
Engine Model NT855-GA
Number of Cylinders 6 cylinders, Vertical in line,Turbocharged
Bore×Stroke 140mm x152mm
Displacement 14L
Compression ratio 14.5:1
Prime Power/Speed 450KW / 1800rpm
Standby Power/Speed 500KW / 1800rpm
Speed Governor electrical
Cooling System Forced water cooling cycle
Fuel Consumption at 100% Load 205g/kwh@1500rpm
Alternator Data
Optional brands Stamford/Leroy Somer/Marathon
Frequency/speed 60HZ/1800RPM
Exciter type Single bearing, Brushless, Self-excited with AVR
Power factor 0.8
Voltage adjust range ≥5%
Voltage regulation NL-FL ≤±1%
Insulation Grade H
Protection Grade IP23
Control Panel
Optional brands Deespea/Smartgen/ComAp
