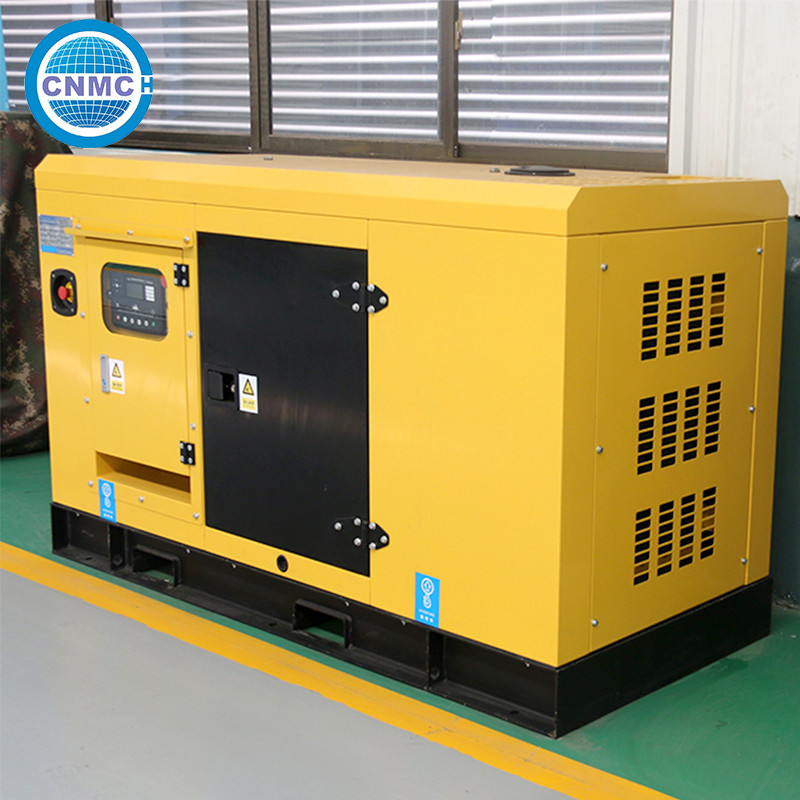

CE Practical CUMMINS Diesel Generator 100kva 80kw Super Silent
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | CN100GF | Warreny | 3 Months-1year |
|---|---|---|---|
| Rated Voltage | 400V | Speed | 3000/3600rpm |
| Engine Brand | Cummins | Alternator Brand | Shanhua |
| Phase | 1 Phase 3 Phase | Packaging Details | Standard Packing:Plastic Cover + Plywood Box |
| Generator Type | Silent Type | Weight | 1000kg |
| Highlight | CE CUMMINS Diesel Generator,Practical CUMMINS Diesel Generator,80kw Cummins 100kva Diesel Generator |
||
Product Description
100kVA CUMMINS Diesel Generator Super Silent Diesel Generators 80kw Portable Diesel Generators
PRODUCT INFORMATION
Prime power:
This rating is for the supply of continuous electrical power (at variable load). There is no limit on the annual hours of operation and 10% overload power can be supplied for 1 hour in 12.
Standby power:
This rating is for the supply of continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted.
General Features:
1. Every generator set is subjected to a comprehensive test program which includes 50% load, 75% load,100% load, 110% load and the checking and proving of all control and safety shut-down functions;
2. 24V DC start motor;
3. Equipped 24V high performance maintenance-free lead-acid starting batteries and connecting with cables;
4. Equipped with industrial silencer and flexible exhaust hose;
5. Designed to Comply with ISO8528/GB2820;
6. Powered by Original UK PERKINS engine, Stamford/Leroy Somer/Meccalte/Marathon alternator and DeepSea/ComAp/SmartGen control panel
Product Paramenters
| Rated power(KW/KVA) | 80/100 | Standby Output(KW/KVA) | 88/110 |
| Rated voltage(V) | 110/220/380 | Rated current(A) | 181A |
| Engine Model(Original) | R6105AZLD/121KW | Alternator Model | CP-274C/80KW |
| Cylinder number | 6 | bore*stroke(mm) | 105*125 |
| Fuel consumption(g.kw/h) at full load | 218 | Compression ratio | 16:1 |
| Starting system | Electric starter | Power factor Cos% | 0.8 |
| Rated power(KW/KVA) | 40kw / 50kva | Standby Output(KW/KVA) | 44kw / 55kva |
| Rated voltage(V) | 110/220/380 | Rated current(A) | 76A |
| Engine Model(Original) | ZH4105ZD/56kw | Alternator Model | CP-224D/40kw |
| Cylinder number | 4 | bore*stroke(mm) | 100*115 |
| Fuel consumption(g.kw/h) at full load | 225 | Compression ratio | 16:1 |
| Starting system | Electric starter | Power factor Cos% | 0.8 |
| Rated power(KW/KVA) | 16kw/20kva | Standby Output(KW/KVA) | 17.6kw/22kva |
| Rated voltage(V) | 110/220/380 | Rated current(A) | 28.8A |
| Engine Model(Original) | PC4JB1/22KW | Alternator Model | STF184E/16kw |
| Cylinder number | 4 | bore*stroke(mm) | 100*115 |
| Fuel consumption(g.kw/h) at full load | 258 | Compression ratio | 16:1 |
| Starting system | Electric starter | Power factor Cos% | 0.8 |
