60Hz 220kw RICARDO Diesel Generator Industrial Air Cooled Durable

  • 60Hz 220kw RICARDO Diesel Generator Industrial Air Cooled Durable
  • 60Hz 220kw RICARDO Diesel Generator Industrial Air Cooled Durable
Place of Origin CHINA
Brand Name CUMMINS
Certification CE
Model Number CN220GF
Minimum Order Quantity 1 set
Price usd 2500-3000/set
Packaging Details wooden case
Delivery Time 7-10 work days
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 1000

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Cooling System Water/Air Cooled Fuel Consumption ≤205g/kw.h
Fuel Type Diesel Noise Level ≤90dB(A)
Rated Frequency 50HZ/60HZ Rated Power 20-1000KW
Rated Speed 1500/1800rpm Starting System Electric/Manual
Warranty 1 Year
Highlight

220kw RICARDO Diesel Generator

,

RICARDO Diesel Generator Air Cooled

,

Durable Diesel Generator Industrial
Leave a Message
Product Description

new Factory Direct 60hz 220kw Silent Diesel Generator Industrial Power diesel Generator Price

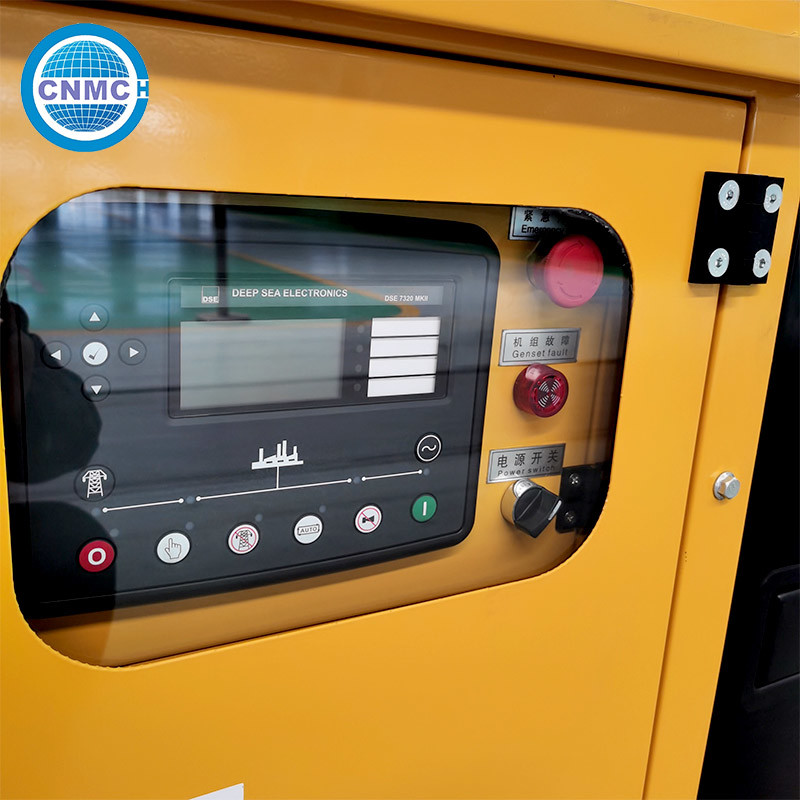

Optional Automatic Control Digital System

1) Brand: Deepsea, Harsen, Smartgen, etc.
2) Adopt Genset controller with LCD display, taking microprocessor as the core.
3) The monitor and display on the voltage, current, frequency, active power, apparent power, power factor of the generated
electricity /grid electricity.
4) The monitor and display on the genset’s water temperature, oil pressure, rotational speed, battery voltage, running hours,
accumulative total power and number of starts.
5) Protection alarm and fault automatic storage on high water temperature, low oil pressure, double speeding, over current, over
voltage, over frequency and phase failure etc.

Generators set model
CN220GF
Speed mode
Electronic
Prime power(KW)
220
Full load fuel consumption rate(g/kwh)
192.8
Standby power(KW)
242
Fuel model
Normal temperature
Genset capacity (KVA)
250
Coolant flow(m3/min)
/
Related speed (RPM)
1500
Gas volume(m3/min)
/
Related voltage (V)
400
Smoke exhaust(m3/min)
/
Rated current (A)
396
Speed mode
/
Related frequency(Hz)
50
cooling method
Closed water cooling
Rated power factor
0.8
Oil capacity(L)
38.6
Phase
3
Coolant capacity (L)
61
Reference weight(Kg)
2500
reference weight(Kg)
1510(Dry weight)
Reference size (L × W × H)
3150*1000*1780(mm)
Alternator model
HLF-220
Engine model
NTA855-G1A
Rated voltage (V)
400
Engine related power(KW)
264
Rated frequency(Hz)
50
Engine standby powe(KW)
291
Rated speed(RPM)
1500
Engine structural features
Four-stroke, turbocharged
Power factor
0.8
Cylinders / arrangement
6 cylinders/In-line
Phase and wiring
Three phase Y type
Bore × stroke(mm)
140×152
efficiency(%)
95.19
Displacement(L)
14
Excitation method
Brushless excitation
Compression ratio
14.5:1
Insulation class
H
Start method
Electric
Protection level
IP21

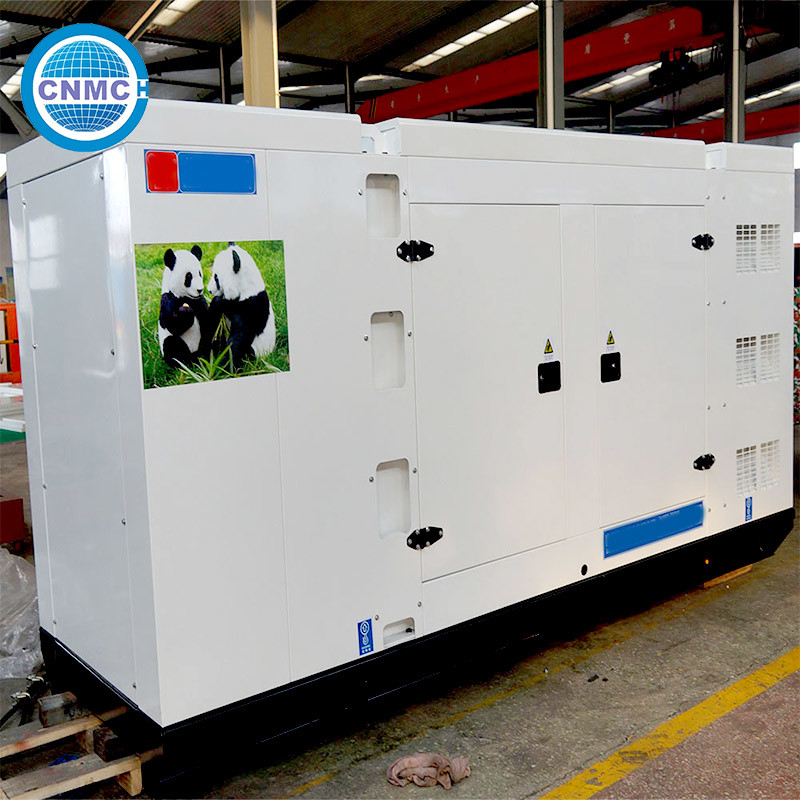

60Hz 220kw RICARDO Diesel Generator Industrial Air Cooled Durable 060Hz 220kw RICARDO Diesel Generator Industrial Air Cooled Durable 1



60Hz 220kw RICARDO Diesel Generator Industrial Air Cooled Durable 2

60Hz 220kw RICARDO Diesel Generator Industrial Air Cooled Durable 3
