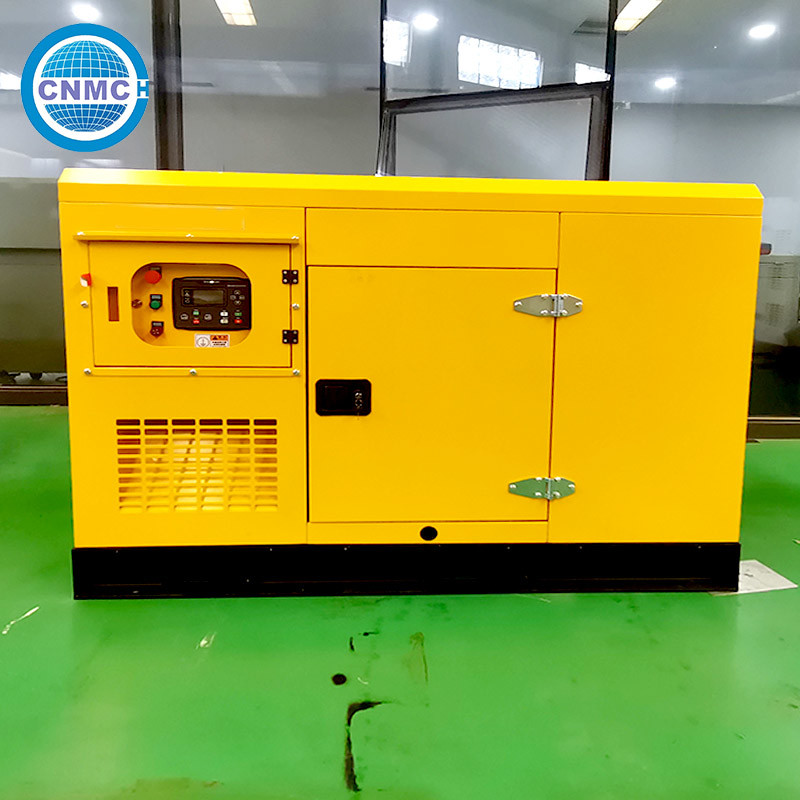

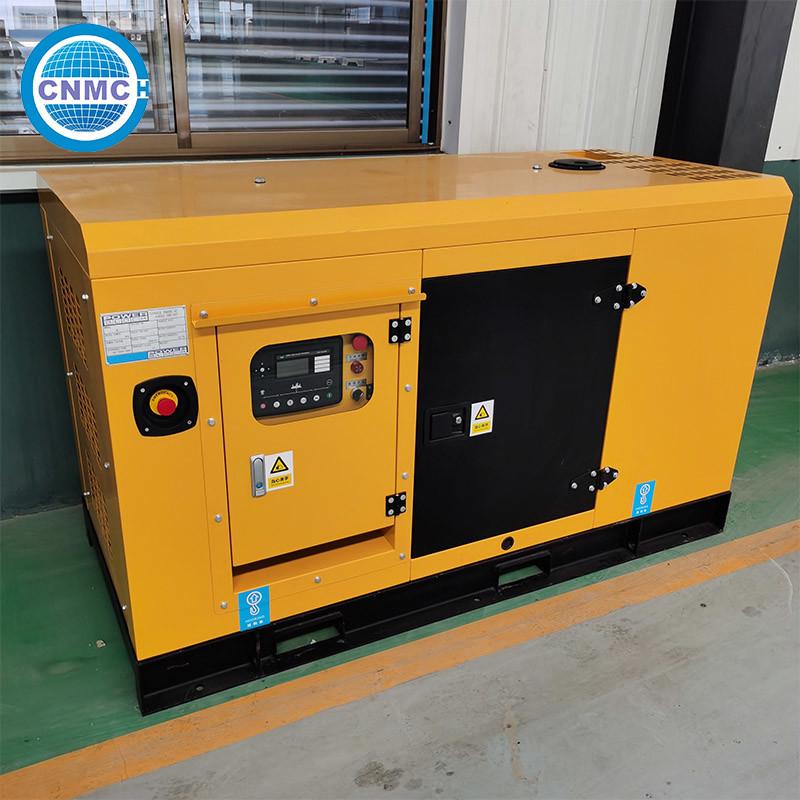

Super Silent RICARDO Diesel Generator 1500rpm 1800rpm Practical

  • Super Silent RICARDO Diesel Generator 1500rpm 1800rpm Practical
  • Super Silent RICARDO Diesel Generator 1500rpm 1800rpm Practical
Place of Origin CHINA
Brand Name RICARDO
Certification CE
Model Number CN500GF
Minimum Order Quantity 1 set
Price usd 2500-3000/set
Packaging Details wooden case
Delivery Time 7-10 work days
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 1000

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connection Type 3 Phase 4 Wire Dimension 4000mm*1800mm*2200mm
Fuel Consumption 205g/kw.h Model RICARDO Diesel Generator
Net Weight 2200kg Noise Level <90dB(A)
Rated Frequency 50Hz/60Hz Rated Speed 1500rpm/1800rpm
Rated Voltage 400V/230V Starting Method Electric Start
Highlight

RICARDO Diesel Generator 1500rpm

,

RICARDO Diesel Generator 1800rpm

,

Practical Super Silent Generator
Leave a Message
Product Description

Super Silent Diesel Generator Powered By Electric Famous In China 500kva 400kw Price

Genset Features:

1. Genuine Cummins industrial diesel engine

2. Radiator 50°C max, fans are driven by belt, with safety guard

3. Genuine stamford. Leroy somer, marathonm, engga alternator

4. Choice of manual/auto and AMF control panels and protection systems

5. Digital auto-start panel

6. Anti Vibration Suspension Absorber

7. Dry type air filter, fuel filter, oil filter

8. 10-hour operation base tank

9.Mould case circuit breaker

10. 24V DC start motor and storage battery

11. 24V charge alternator

12. 24V batteries, rack and cable

13. Rippl;e flex echaust pipe, exhaust siphon, flange, and muffler

14. Comply with ISO and CE standards

15. All generator sets are gone through rigorous testing before beging released to the market place, including 50% load, 75% load, 100% load and all protection function(over speed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)



Engine Features:

1. Genuine Cummins industrial disel engine

2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection

3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler

4. Machinery or electronic governing

5. Fuel injection pump

6. Electric motor starting system

7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner

8. Low discharge, and low fuel consumption

9. Installed conveniently and maintain easily



Alternator Features:

1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, ENGGA

2. Brushless, 4 poles, rotation magnet

3. IP21-23(NEMA1) enclose is standard for all industrial alternators

4. H class insulation system

5. AVR self-regulated, voltage regulation rate: ≤±1%

6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts

7. Wide range of flange adaptors and single bearing disc coupling

8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528

9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof



Genset Model Prime Power Standby Power Engine Fuel Consumption Cylinder No. Displacement Bore X Stroke
KW KVA KW KVA (g/kwh) (L ) (mm)
CN30GF 20 25 24 30 4B3.9-G ≤229 4 3.9 102*120
CN35GF 24 30 28 35 4BT3.9-G ≤214 4 3.9 102*120
CN56GF 40 50 45 56 4BTA3.9-G ≤215 4 3.92 102*120
CN63GF 45 56 50 63 4BTA3.9-G ≤215 4 3.92 102*120
CN70GF 50 63 56 70 6BT5.9G1 ≤215 6 5.88 102*120
CN106GF 78 98 85 106 6BT5.9G ≤215 6 5.88 102*120
CN125GF 90 113 100 125 6BT5.9G2 ≤215 6 5.88 102*120
CN150GF 104 130 120 150 6BT5.9G2 ≤215 6 5.88 102*120
CN165GF 120 150 132 165 6CTA8.3-G2 ≤210 6 8.3 114*135
CN200GF 140 175 160 200 6CTA8.3-G2 ≤210 6 8.3 114*135
CN225GF 160 200 180 225 6CTAA8.3-G2 ≤210 6 8.3 114*135
CN275GF 200 250 220 275 6LTAA8.9-G2 ≤210 6 8.3 114*135
CN313GF 220 275 250 313 NTA855-G1A ≤206 6 14 140*152
CN350GF 250 313 275 350 NTA855-G2 ≤207 6 14 140*152
CN400GF 280 350 310 400 NTA855-G4 ≤208 6 14 140*152
CN413GF 300 375 330 413 NTAA855-G7 ≤206 6 14 140*152
CN450GF 320 400 360 450 NTAA855-G7A ≤206 6 14 140*152
CN500GF 360 450 400 500 KTA19-G3 ≤203 6 18.9 159*159
CN550GF 400 500 440 550 KTA19-G4 ≤203 6 18.9 159*159
CN605GF 440 550 484 605 KTAA19-G6 ≤204 6 18.9 159*159
CN625GF 450 563 500 625 KTAA19-G7 ≤204 6 18.9 159*159
CN700GF 500 625 560 700 KTA38-G ≤206 12 37.8 159*159
CN712GF 520 650 570 712 QSK19-G3 ≤206 6 19 159*159
CN800GF 580 720 640 800 KTA38-GA ≤209 12 37.8 159*159
CN825GF 600 750 660 825 KTA38-G2 ≤210 12 37.8 159*159
CN888GF 640 800 710 888 KTA38-G2B ≤210 12 37.8 159*159
CN975GF 720 900 780 975 KTA38-G2A ≤210 12 37.8 159*159
CN1075GF 800 1000 860 1075 KTA38-G5 ≤202 12 37.8 159*159
CN1375GF 1000 1250 1100 1375 KTA50-G3 ≤215 16 50.3 159*159
CN1375GF 1100 1375 1310 1650 KTA50-G8 ≤215 16 50.3 159*159
CN1650GF 1200 1500 1340 1675 KTA50-GS8 ≤215 16 50.3 159*159
CN1675GF 1350 1688 1500 1875 QSK60-G3 ≤215 16 60 159*159
CN1875GF 1500 1875 1650 2063 QSK60-G3 ≤215 16 60 159*190
CN2063GF 1600 2000 1800 2250 QSK60-G4 ≤215 16 60 159*190




Super Silent RICARDO Diesel Generator 1500rpm 1800rpm Practical 0Super Silent RICARDO Diesel Generator 1500rpm 1800rpm Practical 1
