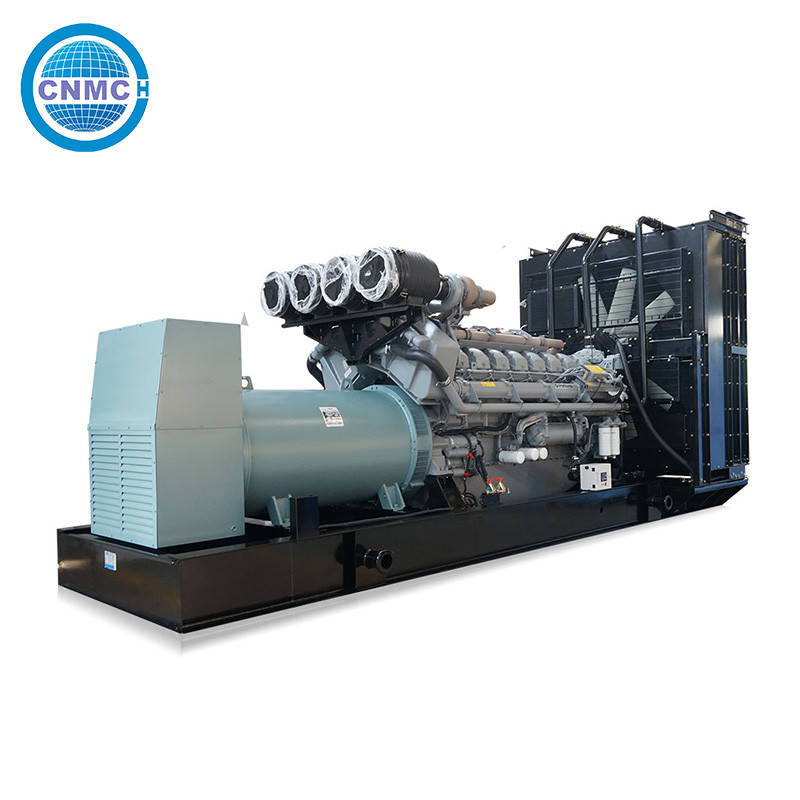

EPA Durable Industrial Diesel Generator , Weatherproof Energy Generating Sets

Place of Origin China
Brand Name CNMC
Certification EPA/CE/ISO And So On
Model Number CN500GF
Minimum Order Quantity 1 SET
Price negotiable
Delivery Time 5-8work day
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100set one week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Font Creation, Font Editing, Font Management, Font Conversion, Font Optimization, Font Preview, Font Export Model Number CN500GF
Product Name Open Type Generator Documentation Online
Glyphs Unicode, OpenType, Multiple Master, TrueType, PostScript Input Formats TTF, OTF, PS, EPS, UFO, BDF, FON, PFB, AFM, PFA, PCF, SFD, NFNT, BDF
Language English Output Formats OpenType, TrueType, WOFF, WOFF2, EOT, SVG
Platform Windows, Mac OS X, Linux Support Email, Forum
Type Software Version Latest
Highlight

EPA Industrial Diesel Generator

,

Durable Industrial Diesel Generator

,

Weatherproof Energy Generating Sets

Leave a Message
Product Description

500 kva diesel power plant 400 kw industrial generator set 400kw diesel generator

High power 500kw open type diesel generator set with ATS and base fuel tank open type generator

The engine has the feature of low fuel consumption, good power performance, safety and good reliability. This series
generator set is used as prime or standby power supply in fieldwork, building, supermarket, industrial and mining factory, oil
field, highway, harbour countryside and so on.



500KW diesel generating set technical specifications
Technical parameters of generator set:
Unit model: HLC560GF Steady state voltage adjustment rate (%): ≤± 1
Output power: 500Kw Voltage fluctuation rate (%): ≤ ± 0.5
Power factor: COSΦ = 0.8 (lagging) Transient voltage adjustment rate (%): + 20 ~ -15
Output voltage: 400V / 230V Voltage stabilization time (s): ≤1
Output current: 900A Steady state frequency adjustment rate (%): ≤ ± 1
Rated frequency: 50Hz Frequency fluctuation rate (%): ≤ ± 0.5
Rated speed: 1500rpm Transient frequency adjustment rate (%): + 10 ~ -7
Fuel grade: (standard) 0 # light diesel (normal temperature) Frequency stabilization time (S): ≤3
Dimensions: 3450×1620×2150(L×W×H mm) Fuel consumption (100% load): 207g / kW · h
Weight: 4650kg Acoustic noise (LP7m): ≤100dB (A)
Technical parameters of diesel engine:
Brand/origin: Cummins Cooling method: closed water circulation cooling
model: KPV550 Oil supply method: direct injection
Number of cylinders / Dare to mention structure: 12/ V Type Governor Type: Electric
Bore stroke: 135 × 155 mm Air inlet system: Turbo
Compression ratio: 16: 1 Overload capacity: 110%
Start mode: DC 24V Electric start Speed: 1500rpm
Technical parameters of generator:
Brand: Copper Brushless Motor Protection level: IP22
Model: HLC560GF Wiring mode: Three-phase four-wire, Y-connection
Rated power: 500kW Adjustment method: AVR (Automatic Voltage Regulator)
Rated voltage: 400V / 230V Output frequency: 50Hz
Insulation class: H class Output factor: COSΦ = 0.8 (lag)
The standard configuration of the generator set is as follows:
ØDirect injection internal combustion engine (diesel);
Ø AC synchronous generator (single bearing);
ØSuitable for ambient temperature 40 ℃ -50 ℃ radiator water tank, belt driven cooling fan, fan safety shield;
Ø Power generation output air switch, standard control screen;
Ø Unit steel common base (including: unit vibration damping rubber pad);
Ø Dry air filter, fuel oil, lubricating oil filter, start motor, and equipped with self-charging generator;
Ø Random information: original technical documents of diesel engines and generators, instructions for generator sets, testreports, etc.

EPA Durable Industrial Diesel Generator , Weatherproof Energy Generating Sets 0



Specification
Generator Supply Scope
Engine
Brand new water cooled diesel engine
Alternator
100% copper wire brushless alternator, single bearing, IP21/22, H insulation class
Base Frame
Heavy duty steel base frame
Radiator
40℃ for open type, 50℃ for soundproof type
Vibration Damper
Vibration damper between Engine/Alternator and base frame
Silencer
Industrial silencer with flexible bellow and elbow
Filters
Standard Air filter, Oil filter, Fuel filter and oil-water separator
Battery
Electric start and 24V charger. 12/24V storage batteries
Fuel Tank
Average 8 hours base fuel tank
Tool Kits & Manuals
Standard tool kits and complete operation/maintenance/manuals for Generator/Engine/Alternator/control panel, etc.

EPA Durable Industrial Diesel Generator , Weatherproof Energy Generating Sets 1EPA Durable Industrial Diesel Generator , Weatherproof Energy Generating Sets 2

EPA Durable Industrial Diesel Generator , Weatherproof Energy Generating Sets 3

/

EPA Durable Industrial Diesel Generator , Weatherproof Energy Generating Sets 4EPA Durable Industrial Diesel Generator , Weatherproof Energy Generating Sets 5

Now we have 60 technicians, 25 engineers and 8 senior engineers. We have 12 branches in China and 20 offices in Africa, Southeast Asia.
new factory covers 30,000 m³, located in shandong, the largest city in central China. Titan products are submit to CE, GS, IS08525, GB/T2820-97 and quality certified by IS09001 and ISO14001 management. We are OEM factory of Cummins, Perkins, MTU,
Doosan, MAN, Liebherr, Googol, Stamford, Marathon, Leroy somer and Engga etc.
