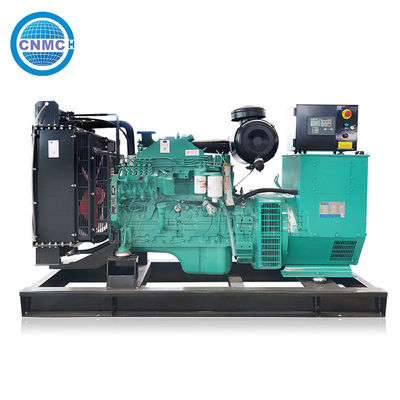

Practical Open Type Generator Multipurpose 3 Phase 60kva 50kw

Place of Origin China
Brand Name CNMC
Certification EPA/CE/ISO And So On
Model Number CN60GF
Minimum Order Quantity 1 SET
Price negotiable
Delivery Time 5-8work day
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100set one week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Features Font Editing, Font Conversion, Font Generation Model Number CN60GF
Speed 1500rpm/1800rpm Compatibility Adobe Photoshop, Adobe Illustrator, CorelDraw
Font Format OpenType Fonts Unicode
Glyphs Unlimited Language English
License Freeware

Practical Open Type Generator


Open Type Generator Multipurpose


3 Phase Genset Open Type

Leave a Message
Product Description

60 Kva 60kva 50kw Open Generator Set 50kva Diesel Generator 3 Phase 60kw Popular


High power 60kva open type diesel generator set with ATS and base fuel tank open type generator

With the development of society and the continuous improvement of people's material living standard, there are more and more power demands in different situations, such as data centers, modern office buildings, poly-silicon production plants, mining sites etc.. Commonly used low-voltage 400V AC diesel generator sets have large transmission lines, large line losses, which are difficult to lay out with high cost. In many cases, it is difficult to meet real demand. At this situation, high-voltage generator sets can fully reflect its value.

As prime or standby power supply for diesel generator sets, the capacity requirements are getting larger and larger.A few big power diesel generator sets need to be connected to the single unit or connected to the grid to meet the power requirements of the load. As Gensets quantity increases, it is necessary to build a separate machine room, and the distance from the actual use load is getting farther and farther. There are transmission defects in the parallel operation of multiple low-voltage diesel generator sets. In order to be safer and more reliable, the use of high-voltage Genset is undoubtedly the best choice.

The development and improvement of big power diesel engines, large-capacity high-voltage alternators and control system technology have made the advantages of high-voltage diesel generator sets gradually appear, and the market demand is strong, which has become a main solutions of emergency power supply for large-capacity, long-distance transmission, high intelligence and high reliability.

High-voltage Gensets are widely used in high-end service industries such as telecommunications, metallurgy, airports, mining sites, ocean islands, large data centers, large-scale urban complexes, black start for medium and large-scale power plants, and prime or backup power systems for high-end manufacturing.

Application field:

It is applied in hospitals, banks, communication, airports, radio stations, hotels, factories and enterprises as the emergency power and fire extinguishing power.

60kva diesel generating set technical specifications
Technical parameters of generator set:
Unit model: CN60GF Steady state voltage adjustment rate (%): ≤± 1
Output power: 48Kw Voltage fluctuation rate (%): ≤ ± 0.5
Power factor: COSΦ = 0.8 (lagging) Transient voltage adjustment rate (%): + 20 ~ -15
Output voltage: 400V / 230V Voltage stabilization time (s): ≤1
Output current: 900A Steady state frequency adjustment rate (%): ≤ ± 1
Rated frequency: 50Hz Frequency fluctuation rate (%): ≤ ± 0.5
Rated speed: 1500rpm Transient frequency adjustment rate (%): + 10 ~ -7
Fuel grade: (standard) 0 # light diesel (normal temperature) Frequency stabilization time (S): ≤3
Dimensions: 3450×1620×2150(L×W×H mm) Fuel consumption (100% load): 207g / kW · h
Weight: 4650kg Acoustic noise (LP7m): ≤100dB (A)
Technical parameters of diesel engine:
Brand/origin: Cummins Cooling method: closed water circulation cooling
model: KPV550 Oil supply method: direct injection
Number of cylinders / Dare to mention structure: 12/ V Type Governor Type: Electric
Bore stroke: 135 × 155 mm Air inlet system: Turbo
Compression ratio: 16: 1 Overload capacity: 110%
Start mode: DC 24V Electric start Speed: 1500rpm
Technical parameters of generator:
Brand: Copper Brushless Motor Protection level: IP22
Model: CN60GF Wiring mode: Three-phase four-wire, Y-connection
Rated power: 48kW Adjustment method: AVR (Automatic Voltage Regulator)
Rated voltage: 400V / 230V Output frequency: 50Hz
Insulation class: H class Output factor: COSΦ = 0.8 (lag)
The standard configuration of the generator set is as follows:
ØDirect injection internal combustion engine (diesel);
Ø AC synchronous generator (single bearing);
ØSuitable for ambient temperature 40 ℃ -50 ℃ radiator water tank, belt driven cooling fan, fan safety shield;
Ø Power generation output air switch, standard control screen;
Ø Unit steel common base (including: unit vibration damping rubber pad);
Ø Dry air filter, fuel oil, lubricating oil filter, start motor, and equipped with self-charging generator;
Ø Random information: original technical documents of diesel engines and generators, instructions for generator sets, testreports, etc.

Practical Open Type Generator Multipurpose 3 Phase 60kva 50kw 0


Generator Supply Scope
Brand new water cooled diesel engine
100% copper wire brushless alternator, single bearing, IP21/22, H insulation class
Base Frame
Heavy duty steel base frame
40℃ for open type, 50℃ for soundproof type
Vibration Damper
Vibration damper between Engine/Alternator and base frame
Industrial silencer with flexible bellow and elbow
Standard Air filter, Oil filter, Fuel filter and oil-water separator
Electric start and 24V charger. 12/24V storage batteries
Fuel Tank
Average 8 hours base fuel tank
Tool Kits & Manuals
Standard tool kits and complete operation/maintenance/manuals for Generator/Engine/Alternator/control panel, etc.

Practical Open Type Generator Multipurpose 3 Phase 60kva 50kw 1Practical Open Type Generator Multipurpose 3 Phase 60kva 50kw 2

Practical Open Type Generator Multipurpose 3 Phase 60kva 50kw 3


Practical Open Type Generator Multipurpose 3 Phase 60kva 50kw 4Practical Open Type Generator Multipurpose 3 Phase 60kva 50kw 5

Now we have 60 technicians, 25 engineers and 8 senior engineers. We have 12 branches in China and 20 offices in Africa, Southeast Asia.
new factory covers 30,000 m³, located in shandong, the largest city in central China. Titan products are submit to CE, GS, IS08525, GB/T2820-97 and quality certified by IS09001 and ISO14001 management. We are OEM factory of Cummins, Perkins, MTU,
Doosan, MAN, Liebherr, Googol, Stamford, Marathon, Leroy somer and Engga etc.

Practical Open Type Generator Multipurpose 3 Phase 60kva 50kw 6
