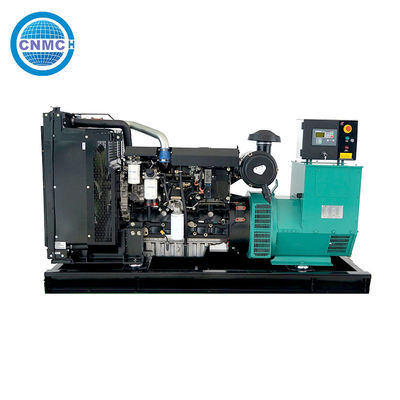

400V 230V Open Type Generator Multifunctional 200Kva With ATS

Place of Origin China
Brand Name CNMC
Certification EPA/CE/ISO And So On
Model Number CN200GF
Minimum Order Quantity 1 SET
Price negotiable
Delivery Time 5-8work day
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100set one week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Model Number CN200GF Place Of Origin Chian Shandong
Weight 2000kg Type Open
Speed 1500rpm/1800rpm Rated Voltage 400/230V
Power Factor 0.8/1 Product Name Open Type Generator
Rating 4.5/5 Stars Font Conversion Yes
Font Creation Yes Font Editing Yes

400V Open Type Generator


230V Open Type Generator


Multifunctional Open Type Genset

Leave a Message
Product Description

Best Selling Products Camping Equipment OEM Logo Printed 200 Kva Generator For Sale

High power 200kva open type diesel generator set with ATS and base fuel tank open type generator

Application field:

It is applied in hospitals, banks, communication, airports, radio stations, hotels, factories and enterprises as the emergency power and fire extinguishing power.

200kva diesel generating set technical specifications
Technical parameters of generator set:
Unit model: CN200GF Steady state voltage adjustment rate (%): ≤± 1
Output power: 160Kw Voltage fluctuation rate (%): ≤ ± 0.5
Power factor: COSΦ = 0.8 (lagging) Transient voltage adjustment rate (%): + 20 ~ -15
Output voltage: 400V / 230V Voltage stabilization time (s): ≤1
Output current: 900A Steady state frequency adjustment rate (%): ≤ ± 1
Rated frequency: 50Hz Frequency fluctuation rate (%): ≤ ± 0.5
Rated speed: 1500rpm Transient frequency adjustment rate (%): + 10 ~ -7
Fuel grade: (standard) 0 # light diesel (normal temperature) Frequency stabilization time (S): ≤3
Dimensions: 3450×1620×2150(L×W×H mm) Fuel consumption (100% load): 207g / kW · h
Weight: 4650kg Acoustic noise (LP7m): ≤100dB (A)
Technical parameters of diesel engine:
Brand/origin: Cummins Cooling method: closed water circulation cooling
model: KPV550 Oil supply method: direct injection
Number of cylinders / Dare to mention structure: 12/ V Type Governor Type: Electric
Bore stroke: 135 × 155 mm Air inlet system: Turbo
Compression ratio: 16: 1 Overload capacity: 110%
Start mode: DC 24V Electric start Speed: 1500rpm
Technical parameters of generator:
Brand: Copper Brushless Motor Protection level: IP22
Model: CN200GF Wiring mode: Three-phase four-wire, Y-connection
Rated power: 160kW Adjustment method: AVR (Automatic Voltage Regulator)
Rated voltage: 400V / 230V Output frequency: 50Hz
Insulation class: H class Output factor: COSΦ = 0.8 (lag)
The standard configuration of the generator set is as follows:
ØDirect injection internal combustion engine (diesel);
Ø AC synchronous generator (single bearing);
ØSuitable for ambient temperature 40 ℃ -50 ℃ radiator water tank, belt driven cooling fan, fan safety shield;
Ø Power generation output air switch, standard control screen;
Ø Unit steel common base (including: unit vibration damping rubber pad);
Ø Dry air filter, fuel oil, lubricating oil filter, start motor, and equipped with self-charging generator;
Ø Random information: original technical documents of diesel engines and generators, instructions for generator sets, testreports, etc.

400V 230V Open Type Generator Multifunctional 200Kva With ATS 0


Generator Supply Scope
Brand new water cooled diesel engine
100% copper wire brushless alternator, single bearing, IP21/22, H insulation class
Base Frame
Heavy duty steel base frame
40℃ for open type, 50℃ for soundproof type
Vibration Damper
Vibration damper between Engine/Alternator and base frame
Industrial silencer with flexible bellow and elbow
Standard Air filter, Oil filter, Fuel filter and oil-water separator
Electric start and 24V charger. 12/24V storage batteries
Fuel Tank
Average 8 hours base fuel tank
Tool Kits & Manuals
Standard tool kits and complete operation/maintenance/manuals for Generator/Engine/Alternator/control panel, etc.

400V 230V Open Type Generator Multifunctional 200Kva With ATS 1400V 230V Open Type Generator Multifunctional 200Kva With ATS 2

400V 230V Open Type Generator Multifunctional 200Kva With ATS 3


400V 230V Open Type Generator Multifunctional 200Kva With ATS 4400V 230V Open Type Generator Multifunctional 200Kva With ATS 5

Now we have 60 technicians, 25 engineers and 8 senior engineers. We have 12 branches in China and 20 offices in Africa, Southeast Asia.
new factory covers 30,000 m³, located in shandong, the largest city in central China. Titan products are submit to CE, GS, IS08525, GB/T2820-97 and quality certified by IS09001 and ISO14001 management. We are OEM factory of Cummins, Perkins, MTU,
Doosan, MAN, Liebherr, Googol, Stamford, Marathon, Leroy somer and Engga etc.
