Steel Mobile Light Plant Generator Heavy Duty Genset Lighting Tower

Place of Origin China
Brand Name CNMC
Certification EPA/CE/ISO
Model Number CN350GF
Minimum Order Quantity 1 set
Price USD 2500-3000/set
Packaging Details wooden case packing
Delivery Time 7 days
Payment Terms L/C, T/T
Supply Ability 1000 sets per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Frame Steel Fuel Capacity Large
Lighting LED Power Output High
Power Source Electric Safety Features High
Suspension Heavy Duty Towing Capacity High
Trailer Type Generator Warranty 1 Year
Weight Capacity Heavy Wheels Heavy Duty
Highlight

Steel Light Plant Generator

,

Mobile Light Plant Generator

,

Heavy Duty Genset Lighting Tower

Leave a Message
Product Description



Steel Mobile Light Plant Generator Heavy Duty Genset Lighting Tower 0


Good Quality Mobile Trailer Mounted Towable Generator 350kw 300KW Portable Water Cooled Diesel Generator



Diesel generator Specifications
1. Powered by reliable engines
2. Branded alternator
3. Open type, silent type or super silent type generator
4. ISO, CE certified

Genset specs:
Engine Brands: Powered by Cummins,Powered by Perkins,Powered by Lovol,Powered by Deutz,Powered by Doosan, Powered by Mitsubishi, Powered by Kubota or other reliable Chinese engines such as Fawde and Laidong.
Alternator:
Brands: By Stamford, By Leroy Somer, By Mecc Alte and Keypower brushless alternator
Rated output: 8 to 2,000kW/10 to 2,500kVA
Rated voltage: L-N 110 to 277V, L-L 220 to 480V
Rated frequency: 50/60Hz
Phase: 3-phase, 4-wire or 1-phase, 2-wire
Connection: y or other type connection




Diesel Generator Technical Data
Genset CN350GF Prime Power (KW) 350
Rated frequency(Hz) 50/60 Prime Power (KVA) 437.5
Rated speed(Rpm) 1500/1800 Phase 3 Phase
Voltage 220/380V,230/400V,
240/415V,120/240V
N.W (KG) 3500
Rated Current 576A Size (L*W*H) mm 3300*1250*1850
Diesel Engine Technical Data
Brand/Original Yuchai Type Water Cool,
Electric start
Engine Item No. YC6T550L-D21 Cylinder No. 6
Displacement (L) 16.35 Bore and Stoke (MM) 145*165
Prime Power (KW) 368 Fuel Consumption 195(g/kw.h)
Standby power (KW) 405 Combustion Direct Injection
Governor Electronic Aspiration Type Turbocharged and air intercooled
Alternator Technical Data
Brand/ Original SHANHUA/Stamford copy/ Stamford original/Marathon/Leroy-Somer
Alternator Model HLF350 Protection IP23
Alternator Type Brushless sel-excited Insulation Class H
Phase / wire 3-phase& 4 line Factor 0.8
Control Module Specifications



Digital Control Module suitable for a wide variety of single, diesel or gas, gen-set applications.
Monitoring an extensive number of engine parameters, the module will display
warnings, shutdown and engine status information on the back-lit LCD screen and illuminated LEDs.



The control module gives digital readouts of:
Generator voltage Output frequency Engine hours run
Engine speed Battery voltage
The control module has indicators for failure information:
High water temperature Failure to start Battery charger failure
Automatic shutdown occurs under:
Low engine oil pressure High engine water temperature
Over speed/Low speed Failure to start after three attempts

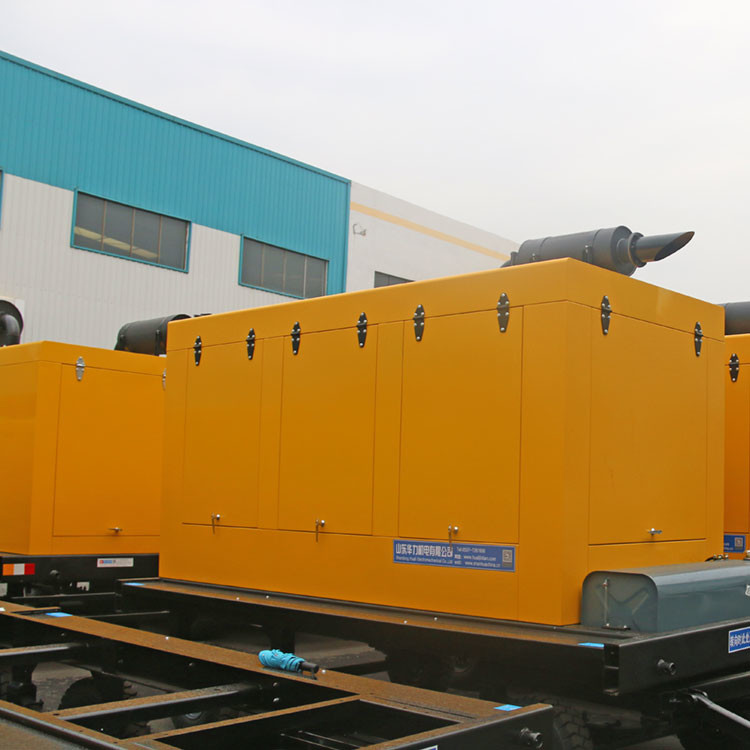

Steel Mobile Light Plant Generator Heavy Duty Genset Lighting Tower 1

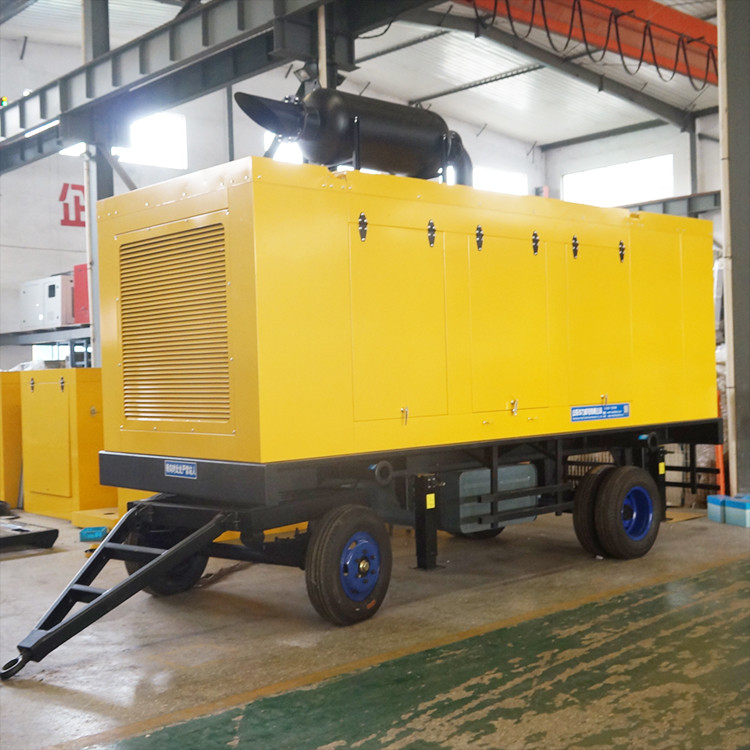

Steel Mobile Light Plant Generator Heavy Duty Genset Lighting Tower 2

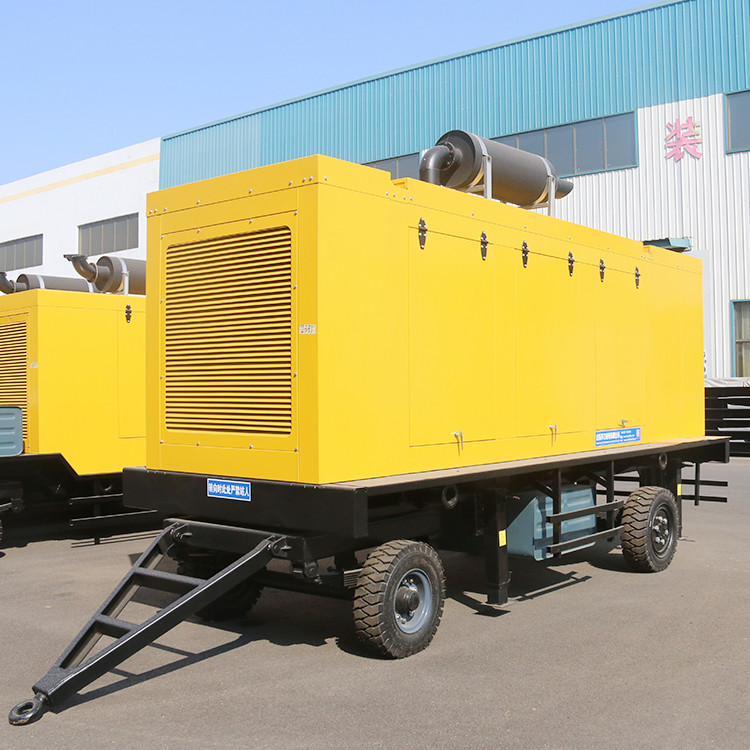

Steel Mobile Light Plant Generator Heavy Duty Genset Lighting Tower 3

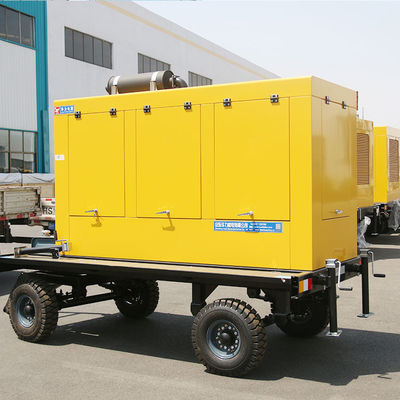

Steel Mobile Light Plant Generator Heavy Duty Genset Lighting Tower 4

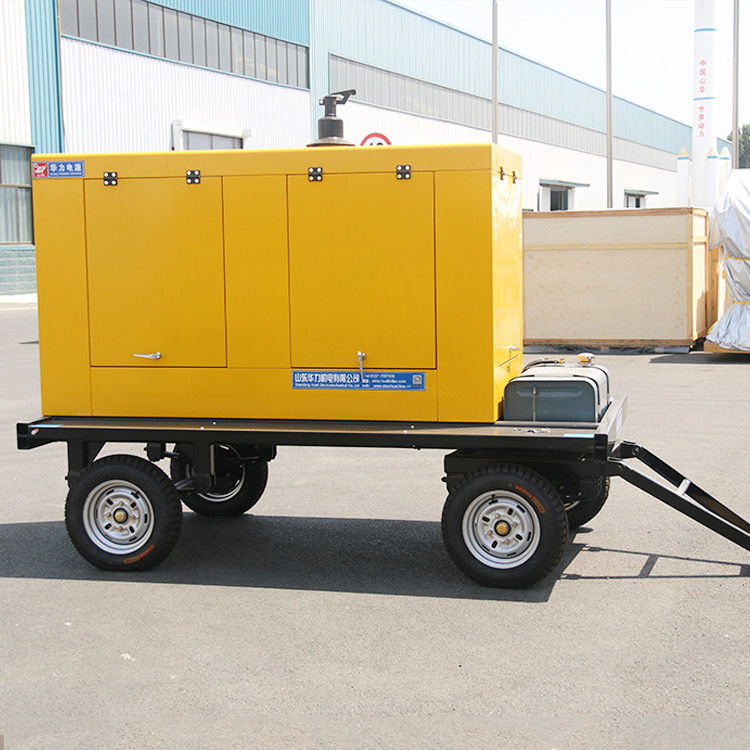

Steel Mobile Light Plant Generator Heavy Duty Genset Lighting Tower 5

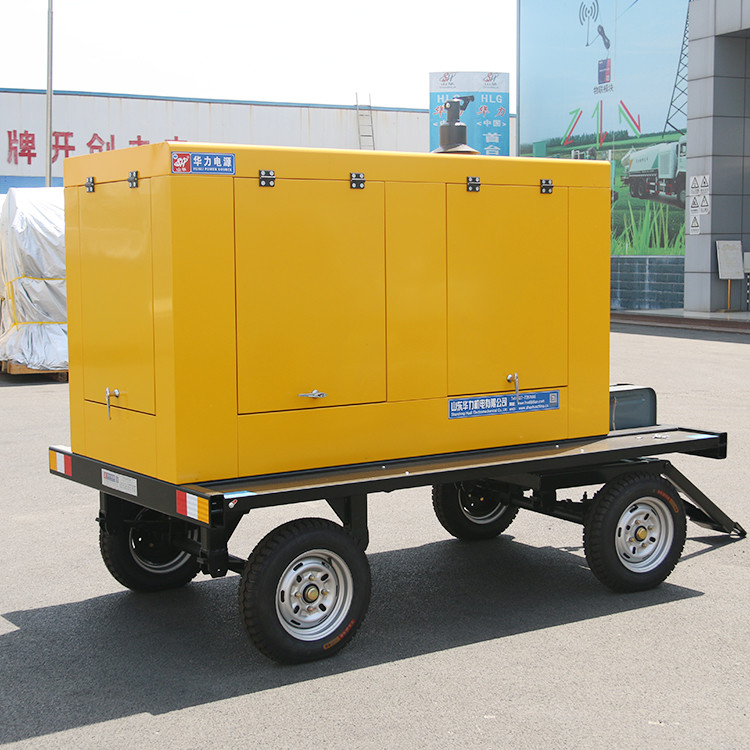

Steel Mobile Light Plant Generator Heavy Duty Genset Lighting Tower 6
