Movable Generator Light Tower 350Kw 320Kva Portable Trailer Type With Wheels

  • Movable Generator Light Tower 350Kw 320Kva Portable Trailer Type With Wheels
  • Movable Generator Light Tower 350Kw 320Kva Portable Trailer Type With Wheels
  • Movable Generator Light Tower 350Kw 320Kva Portable Trailer Type With Wheels
  • Movable Generator Light Tower 350Kw 320Kva Portable Trailer Type With Wheels
  • Movable Generator Light Tower 350Kw 320Kva Portable Trailer Type With Wheels
  • Movable Generator Light Tower 350Kw 320Kva Portable Trailer Type With Wheels
Place of Origin China
Brand Name CNMC
Certification EPA/CE/ISO
Model Number CN320GF
Minimum Order Quantity 1 set
Price USD 2500-3000/set
Packaging Details wooden case packing
Delivery Time 7 days
Payment Terms L/C, T/T
Supply Ability 1000 sets per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Accessories Battery, Oil, Tool Kit Color Black
Dimensions L*W*H: 1200*800*900mm Frequency 50Hz
Fuel Tank Capacity 25L Fuel Type Gasoline
Net Weight 200kg Noise Level 68dB
Power Electric Rated Output 5000W
Start Mode Electric Trailer Type Generator
Voltage 220V Wheel Size 13 Inch
Wheel Type Pneumatic
Highlight

Movable Generator Light Tower

,

Generator Light Tower Portable

,

Trailer Type Tower Generator
Leave a Message
Product Description

Factory Direct Sale 350Kw 320Kva Portable Trailer Type Mobile Diesel Generator With Wheels Movable Diesel Generator

Main Assemblies:

  • 1, Diesel Engine (Cummins Brand)
  • 2, Generator/Alternator (With AVR)
  • 3, Standard Control Panel (Ordinary Type, LCD Type, ATS Type )
  • 4, Common Base with Canopy(Including Base Oil Tank)

Standard Accessories:

  • 1, Starting Battery and Connector Wire
  • 2, The Vibration Reduction Rubber Gasket
  • 3, Silencer
  • 4, Exhaust Elbow
  • 5, 8-hour Oil Tank
  • 6, Spare Part Case
  • 7, Technical Data
  • 8, Water Tank Radiator,The belt-driving Cooling Fan ,Fan Safety Shield
  • 9, Dry-type Air Filter
  • 10, Fuel Filter
  • 11, Lubricating Oil Filter
  • 12, Starting Motor
  • 13, Self-charging Generator
  • 14, Frequency Meter/Water-thermometer/Oil Pressure Gauge/Battery Voltmeter

Optional Accessories:

  • 1, Preheating Start System
  • 2, Diesel Engine Thermal Protection System
  • 3, Jacket Heater
  • 4, Speeding, High Temperature, High Oil Temperature, Low Pressure Alarm System
  • 5, Breaker
  • 6, Antifreeze Liquid
  • 7, Ground Wire
  • 8, Water Temperature Safety Device
  • 9, Machine Oil

Service Conditions:

  • -- Ambient Temperature: -25°C~40°C
  • -- Altitude: not exceed 1000 Meter
  • -- Rated Voltage: 230/380V or any voltage between 220-440V
  • -- Rated Frequency: 50Hz/60Hz
  • -- Insulation Class: B/F/H
  • -- Working Duty: S1(Continuous)
  • -- Humidity: Lower than 95%
Diesel Generator Technical Data
Genset CN320GF Prime Power (KW) 352
Rated frequency(Hz) 50/60 Prime Power (KVA) 320
Rated speed(Rpm) 1500/1800 Phase 3 Phase
Voltage 220/380V,230/400V,
240/415V,120/240V		 N.W (KG) 3500
Rated Current 576A Size (L*W*H) mm 3300*1250*1850
Diesel Engine Technical Data
Brand/Original Yuchai Type Water Cool,
Electric start
Engine Item No. YC6T550L-D21 Cylinder No. 6
Displacement (L) 16.35 Bore and Stoke (MM) 145*165
Prime Power (KW) 320 Fuel Consumption 195(g/kw.h)
Standby power (KW) 281.6 Combustion Direct Injection
Governor Electronic Aspiration Type Turbocharged and air intercooled
Alternator Technical Data
Brand/ Original SHANHUA/Stamford copy/ Stamford original/Marathon/Leroy-Somer
Alternator Model CN350 Protection IP23
Alternator Type Brushless sel-excited Insulation Class H
Phase / wire 3-phase& 4 line Factor 0.8
Control Module Specifications



Digital Control Module suitable for a wide variety of single, diesel or gas, gen-set applications.
Monitoring an extensive number of engine parameters, the module will display
warnings, shutdown and engine status information on the back-lit LCD screen and illuminated LEDs.


The control module gives digital readouts of:
Generator voltage Output frequency Engine hours run
Engine speed Battery voltage
The control module has indicators for failure information:
High water temperature Failure to start Battery charger failure
Automatic shutdown occurs under:
Low engine oil pressure High engine water temperature
Over speed/Low speed Failure to start after three attempts

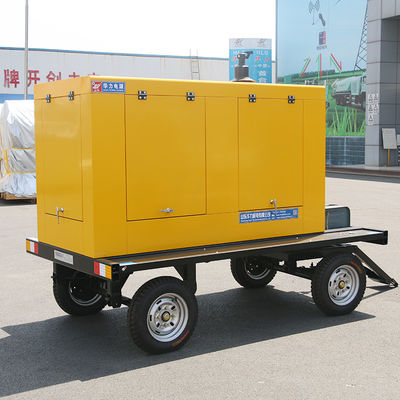

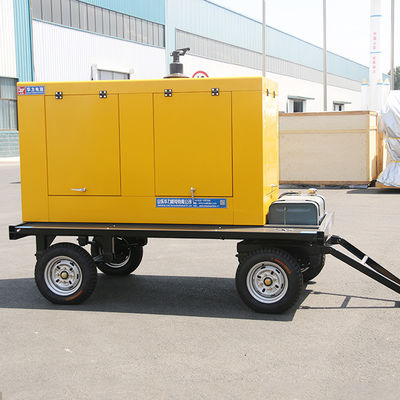

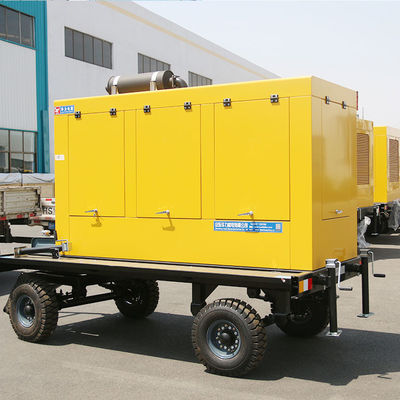

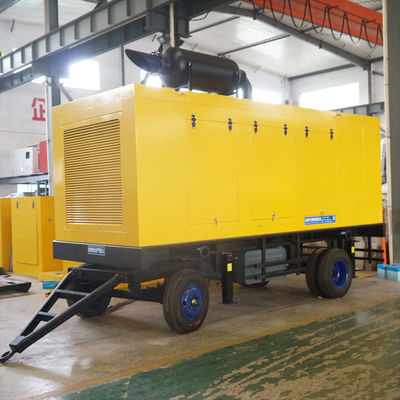

Movable Generator Light Tower 350Kw 320Kva Portable Trailer Type With Wheels 0

Movable Generator Light Tower 350Kw 320Kva Portable Trailer Type With Wheels 1

Movable Generator Light Tower 350Kw 320Kva Portable Trailer Type With Wheels 2

Movable Generator Light Tower 350Kw 320Kva Portable Trailer Type With Wheels 3

Movable Generator Light Tower 350Kw 320Kva Portable Trailer Type With Wheels 4

Movable Generator Light Tower 350Kw 320Kva Portable Trailer Type With Wheels 5

Movable Generator Light Tower 350Kw 320Kva Portable Trailer Type With Wheels 6

Movable Generator Light Tower 350Kw 320Kva Portable Trailer Type With Wheels 7

Movable Generator Light Tower 350Kw 320Kva Portable Trailer Type With Wheels 8
