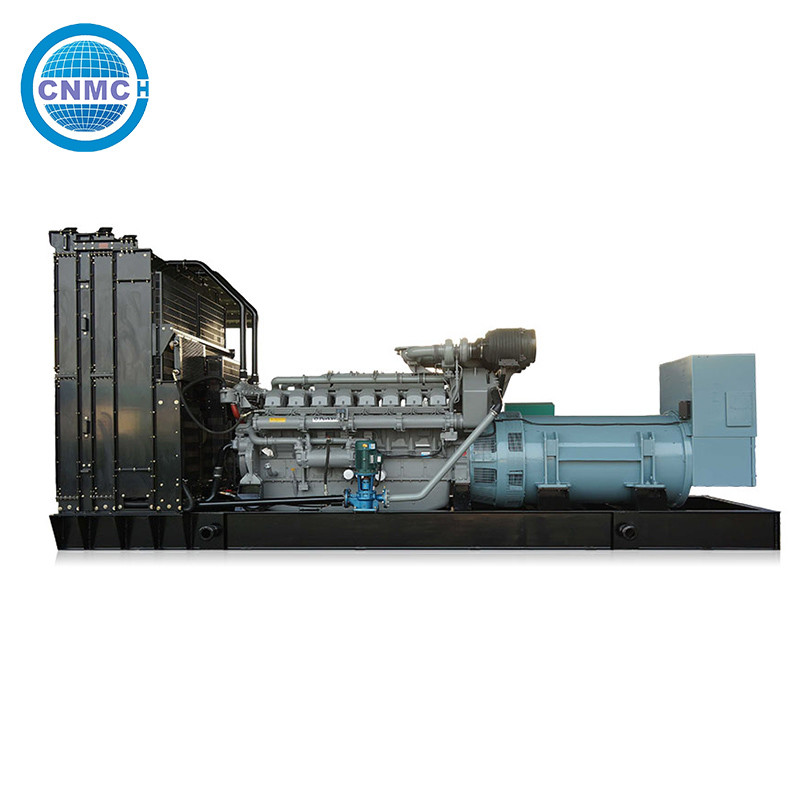

Brushless Container Diesel Generator Set IP23 IP44 1875kva 1500Kw

  • Brushless Container Diesel Generator Set IP23 IP44 1875kva 1500Kw
Place of Origin CHINA
Brand Name CNMC
Certification CE
Model Number CN1500GF
Minimum Order Quantity 1 SET
Price negotiable
Delivery Time 5-8work day
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 100set one week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Container Size 20ft/40ft Phase Single/Three
Power 20-1000KW Protection Grade IP23/IP44
Speed Regulation Electronic Governor/Mechanical Governor Type Container Diesel Generator
Voltage Regulation AVR/PMG Control System Automatic/Manual
Cooling System Water/Air Emission Standard EU Stage II/EPA Tier 2/EPA Tier 3/EPA Tier 4
Frequency 50Hz/60Hz Fuel Diesel
Fuel Consumption Low Power Rating 20kW-1000kW
Rated Voltage 220V/380V/400V/415V/440V/480V/660V/1140V Running Time Long
Starting System Electric/Manual Warranty 1 Year
Highlight

Brushless Container Diesel Generator

,

Container Diesel Generator IP23

,

IP44 Container Generator Set
Leave a Message
Product Description

Brushless Container Diesel Generator 1875kva 1500 Kw Diesel Generator Set 2000 Kva Silent Container Water Cooled.

Products Description

Our factory provides all over the word comprehensive solution for prime/standby power generation from 2kva to 4000kva.We designing and installing power generation solution to our clients.Our diesel generators are widely use inmines,communications,army,ports,highway, railway,hotels,shopping mall and so on.





Diesel generator Details

  • Model HL1000GF
  • Power 1000KVA/800KW
  • Frequency 50/60HZ
  • Voltage 380/220v(voltage can be customized)
  • Optional Type Open/soundproof/trailer
  • Size of Open type 4350*1800*2350mm
  • Weight of Open type 8000kg
  • With Diesel Engine
  • Brand&model Cummins KTA38-G5
  • Cylinders 12 V type
  • Bore*Stroke 159*159mm
  • Displacement 38L
  • Fuel Consumption at 100% Load 208g/kw.h
  • Speed Governor ECM
  • With Alternator
  • Optional Brands Stamford/Leroy Somer/Mecc Alte/Marathon
  • Exciter type Single bearing,brushless,Self-excited
  • Power factor 0.8
  • Voltage adjust range ≥5%
  • Insulation Grade H
  • Protection Grade IP23
  • With Controller
  • Optional brands Deepsea/ComAp/Smartgen



Brushless Container Diesel Generator Set IP23 IP44 1875kva 1500Kw 0



Silent diesel generator



Genset Main Technical Data:





Genset Model ASM2063
Prime Power 1500KW/1875KVA
Standby Power 1650KW/2063KVA
Frequency/Speed 50Hz/1500rpm
Available Voltage 220/380V,230/400V,110/220V,240/415V, 254/440V, 277/480V
Phases Three phases, four wires
Optional brands Deepsea/ComAp/Smartgen



With Cummins Engine Data:



Manufacturer Shanghai MHI Engine Co., Ltd.
Model S16R-PTA2-C
Engine speed 1500rpm
Cylinder quantity 16V
Displacement 65.4L



Alternator Specifications:

Manufacturer Leroy-somer
Model LSA52.3S6
Output power prime 1500KW
VOLTAGE REGULAION ± 1%
Insulation H

Brushless Container Diesel Generator Set IP23 IP44 1875kva 1500Kw 1Brushless Container Diesel Generator Set IP23 IP44 1875kva 1500Kw 2Brushless Container Diesel Generator Set IP23 IP44 1875kva 1500Kw 3Brushless Container Diesel Generator Set IP23 IP44 1875kva 1500Kw 4Brushless Container Diesel Generator Set IP23 IP44 1875kva 1500Kw 5Brushless Container Diesel Generator Set IP23 IP44 1875kva 1500Kw 6Brushless Container Diesel Generator Set IP23 IP44 1875kva 1500Kw 7
