1.2mw 1500kva Container Diesel Generator 380v Soundproof Water Cooled

  • 1.2mw 1500kva Container Diesel Generator 380v Soundproof Water Cooled
Place of Origin CHINA
Brand Name CNMC
Certification CE
Model Number CN1200GF
Minimum Order Quantity 1 SET
Price negotiable
Delivery Time 5-8work day
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 100set one week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Container Size 20ft/40ft Voltage Regulation AVR/PMG
Control System Automatic Control System Emission Standard EU Stage II/EPA Tier 2/EPA Tier 3/EPA Tier 4
Fuel Diesel Fuel Consumption Low
Power Rating 20kW-1000kW Rated Voltage 220V/380V/400V/415V/440V/480V/660V/1140V
Starting System Electric Start Warranty 1 Year
Cooling System Water Cooled Frequency 50/60Hz
Installation Containerized Noise Level Low Noise
Phase 3 Phase Power 10-1000KW
Protection System Overload Protection System Speed Regulation Stepless Speed Regulation
Voltage 220/380V/400/415V/440V/480V
Highlight

1.2mw Container Diesel Generator

,

Container Diesel Generator Soundproof

,

Water Cooled Containerized Generator Set
Leave a Message
Product Description

1.2mw 1500kva Container Diesel Generator 380v Soundproof Water Cooled Genset Diesel Generators With EPA CE.

Products Description

1. Good quality open type diesel generator price with world famous brand engine, such as CUMMINSS, PERKINSS, , DEUTZ, WEICHAI, YUCHAI,low oil consumption and low emission.

2. Alternator "STAMFORD" "MARATHON" "Leroy Somer" Brand 100% copper brushless alternator.Protection Class: IP23, Insulation Class:H

3. 8-24 hours fuel tank

4. Super silent: 65-79dB(A)-7M

5. It adopts advanced design idea and advanced technology. Featured with good economic performance, low oil consumption, small volume, compact structure, great power, running stability, easy-installation, easy-operation and maintenance.

6. Automatic controller with ATS. can also connect to grid.

7. It is galvanized. Moistureproof and derusting processing, effectively protect the genset from humid wea





Diesel generator Details

  • Model HL1000GF
  • Power 1000KVA/800KW
  • Frequency 50/60HZ
  • Voltage 380/220v(voltage can be customized)
  • Optional Type Open/soundproof/trailer
  • Size of Open type 4350*1800*2350mm
  • Weight of Open type 8000kg
  • With Diesel Engine
  • Brand&model Cummins KTA38-G5
  • Cylinders 12 V type
  • Bore*Stroke 159*159mm
  • Displacement 38L
  • Fuel Consumption at 100% Load 208g/kw.h
  • Speed Governor ECM
  • With Alternator
  • Optional Brands Stamford/Leroy Somer/Mecc Alte/Marathon
  • Exciter type Single bearing,brushless,Self-excited
  • Power factor 0.8
  • Voltage adjust range ≥5%
  • Insulation Grade H
  • Protection Grade IP23
  • With Controller
  • Optional brands Deepsea/ComAp/Smartgen



1.2mw 1500kva Container Diesel Generator 380v Soundproof Water Cooled 0

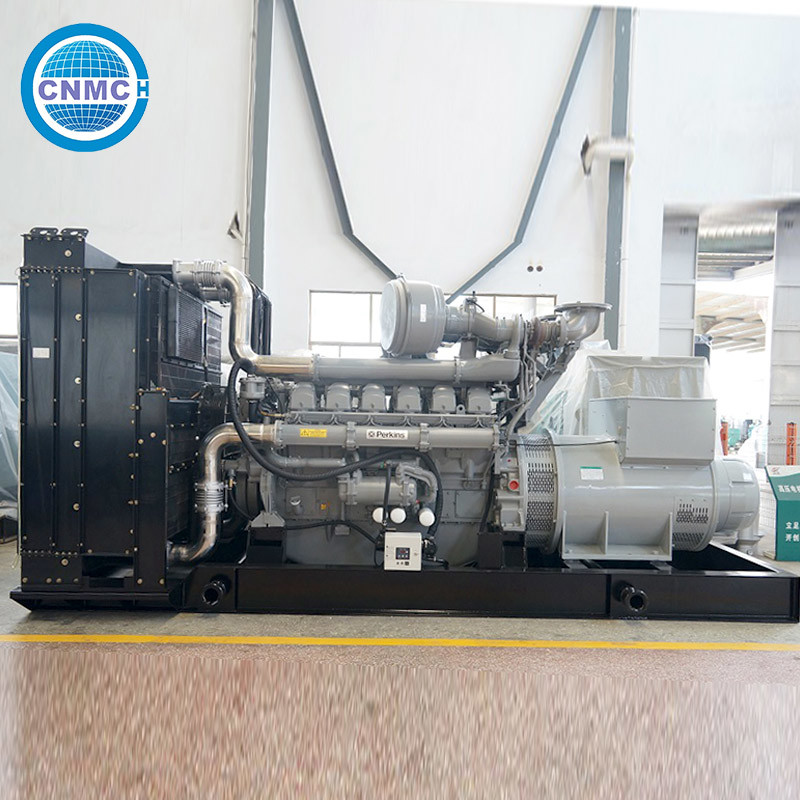

Silent diesel generator



Genset Main Technical Data:





Genset Model CN1200GF
Prime Power 1200KW/1500KVA
Standby Power 1320KW/1650KVA
Frequency/Speed 50Hz/1500rpm
Available Voltage 220/380V,230/400V,110/220V,240/415V, 254/440V, 277/480V
Phases Three phases, four wires
Optional brands Deepsea/ComAp/Smartgen



With Cummins Engine Data:



Engine speed 1500rpm
Cylinder quantity 16V
Displacement 65.4L



Alternator Specifications:

Manufacturer Leroy-somer
Model LSA52.3S6
Output power prime 1500KW
VOLTAGE REGULAION ± 1%
Insulation H

1.2mw 1500kva Container Diesel Generator 380v Soundproof Water Cooled 11.2mw 1500kva Container Diesel Generator 380v Soundproof Water Cooled 21.2mw 1500kva Container Diesel Generator 380v Soundproof Water Cooled 31.2mw 1500kva Container Diesel Generator 380v Soundproof Water Cooled 41.2mw 1500kva Container Diesel Generator 380v Soundproof Water Cooled 51.2mw 1500kva Container Diesel Generator 380v Soundproof Water Cooled 61.2mw 1500kva Container Diesel Generator 380v Soundproof Water Cooled 7
