Doosan Container Diesel Generator 3000KW 3750KVA Multipurpose

Place of Origin CHINA
Brand Name CNMC
Certification CE
Model Number CN1200GF
Minimum Order Quantity 1 SET
Price negotiable
Delivery Time 5-8work day
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 100set one week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Control System Automatic/Manual Cooling System Air/Water Cooled
Efficiency High Frequency 50Hz/60Hz
Fuel Diesel Noise Level Low
Power 20-1000kW Protection System Overload/Low Oil Pressure/High Water Temperature
Speed 1500rpm/1800rpm Starting System Electric/Manual
Type Container Diesel Generator Voltage 380V/400V/415V/440V/480V
Warranty 1 Year
Highlight

Doosan Container Diesel Generator

,

Container Diesel Generator 3000KW

,

Multipurpose Diesel Generator Container

Leave a Message
Product Description

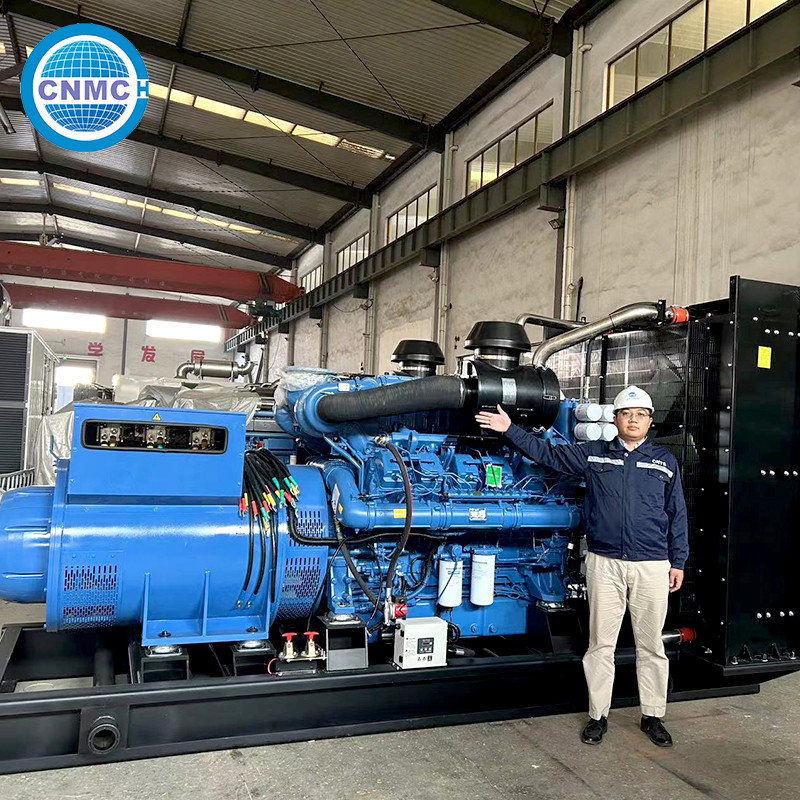

Doosan Container Diesel Generator Cummins Engines 3000Kw 3750kva Diesel Engine Heavy Duty Diesel Generator.

Products Description


  • TECHNICAL PERFORMANCE
    1.Several voltages range for parallel: 380-440V for 50HZ and 190-240V & 380-480V for 60HZ

    2.The parallel capacity is very large. Generally, the power range is from 10kVA-3800kVA, which can realize 256 units for parallel operation at most.

    3.The power supply is very flexible. The quantity can be decided to start according to loading capacity gan be started or stopped according to loading capacity.

    4.Automation is very high. It integrates the protection, measurement, remote control, remote signaling, telemetry, and signal of the electrical system to realizes the comprehensive automation.



Doosan Container Diesel Generator 3000KW 3750KVA Multipurpose 0

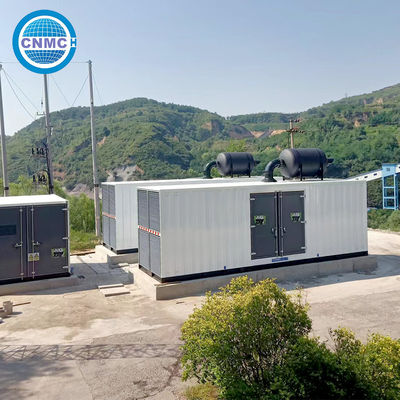

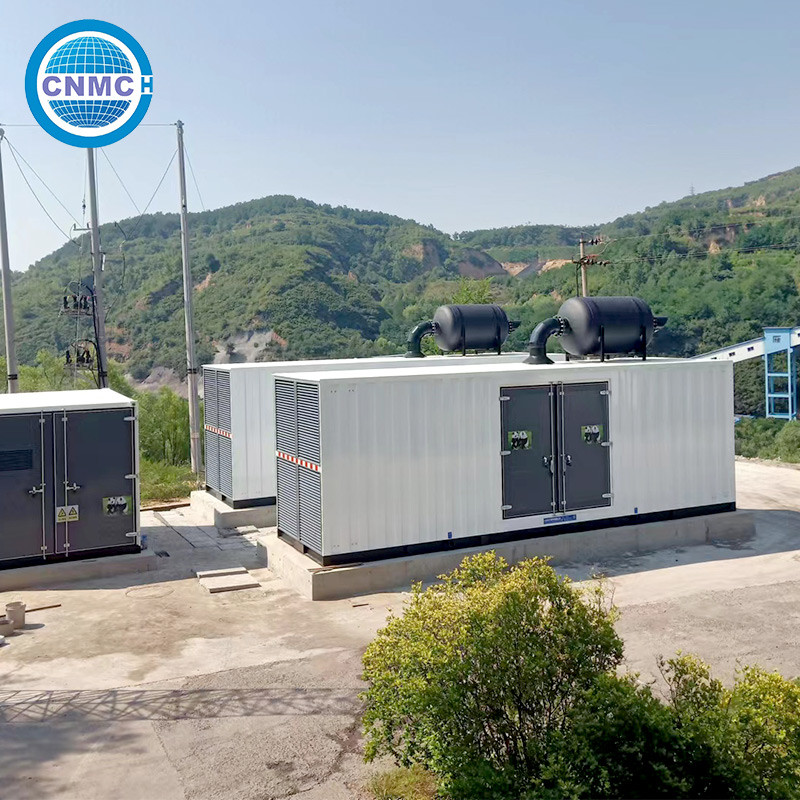

Silent diesel generator



Genset Main Technical Data:





Genset Model CN3000GF
Prime Power 3000KW/3750KVA
Standby Power 3300KW/4125KVA
Frequency/Speed 50Hz/1500rpm
Available Voltage 220/380V,230/400V,110/220V,240/415V, 254/440V, 277/480V
Phases Three phases, four wires
Optional brands Deepsea/ComAp/Smartgen



With Cummins Engine Data:



Engine speed 1500rpm
Cylinder quantity 16V
Displacement 65.4L



Alternator Specifications:

Manufacturer Leroy-somer
Model LSA52.3S6
Output power prime 1500KW
VOLTAGE REGULAION ± 1%
Insulation H
