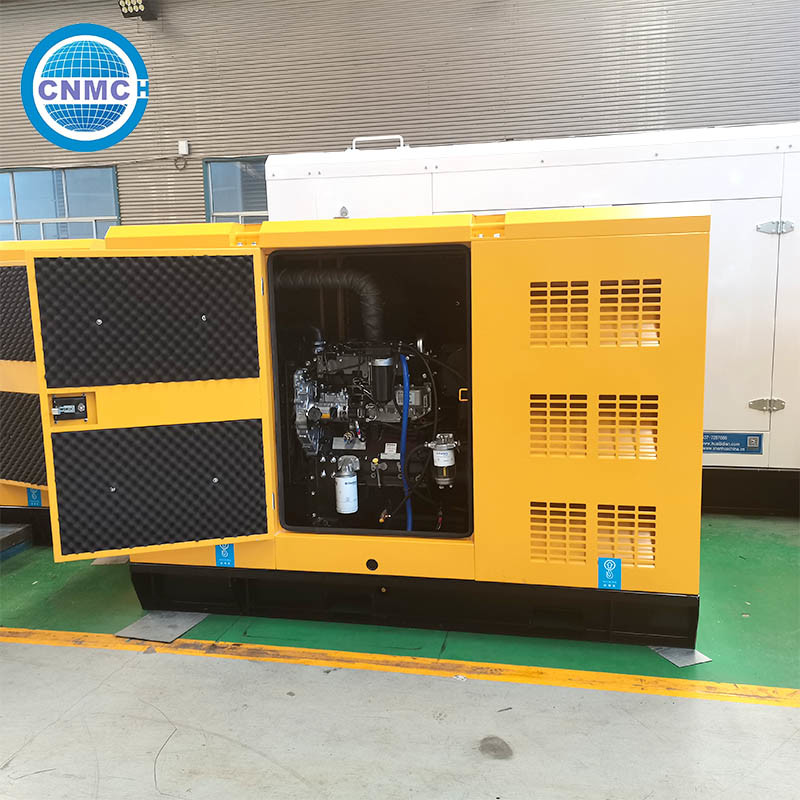

CE Industrial Cummins Silent Generator Stable Diesel Generator With Cummins Engine

Place of Origin CHINA
Brand Name CUMMINS
Certification CE
Model Number CN100GF
Minimum Order Quantity 1 set
Price usd 2500-3000/set
Packaging Details wooden case
Delivery Time 7-10 work days
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 1000

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand Cummins Control Automatic Control
Cooling Water Cooling Frequency 50/60Hz
Fuel Diesel Startup Electric Start
Structure Open/Silent/Trailer Warranty 1 Year
Highlight

CE Cummins Silent Generator

,

Industrial Cummins Silent Generator

,

Stable Diesel Generator With Cummins Engine

Leave a Message
Product Description

Industrial 30kva 35 Kw 40kw 80kva 120kva 160kva ATS Power Silent 200kva 250kva Diesel Generator With Cummins Engine



Engine Features:

1. Genuine Cummins industrial disel engine

2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection

3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler

4. Machinery or electronic governing

5. Fuel injection pump

6. Electric motor starting system

7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner

8. Low discharge, and low fuel consumption

9. Installed conveniently and maintain easily



Alternator Features:

1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, ENGGA

2. Brushless, 4 poles, rotation magnet

3. IP21-23(NEMA1) enclose is standard for all industrial alternators

4. H class insulation system

5. AVR self-regulated, voltage regulation rate: ≤±1%

6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts

7. Wide range of flange adaptors and single bearing disc coupling

8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528

9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof



Digital Control panel

Controller Brand: Smartgen, Deepsea,ComAp

Control Panel: English interface,LED screen and touch buttons.

Main Functions:

1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.

2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.

3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown



Super Soundproof/Silent Box:

1. Excellent ventilation

2. Oil tank mounted on base frame for 12 Hours working

3. Highly Corrosion Resistant construction

4. Excellent Access for Maintenance

5. Security and Safety

6. 1m<80DBA / 7m<70DBA



Accessories

1) Standard accessories: Standard 40 radiator mounted on skid, Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, Standard tools kit, operation manual and document.

2) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer.





Model number
Silent Type Diesel Generator Set
Output power
20kw to 1200kw
Power factor (PF)
COSΦ=0.8(lag)
Output voltage(OV)
400V/440V/230V/220V/110V
Output current
36A--1800A
Normal frequency
50HZ/60HZ
Rated speed
1500rpm/1800rpm
Diesel oil type
(standard) 0 × light diesel (normal temperature)
Size
2000×900×1300(L×W×H mm)
Weight
1055kg
Steady state voltage regulation rate (%)
≤±1
Voltage fluctuation rate(%)
≤±0.5
Transient voltage regulation(%)
+20~-15
Voltage settling time(S)
≤1
Steady-state frequency control
≤±1
Frequency jitter(%)
≤±0.5
Transient frequency fluctuation(%)
+10~-7
Frequency stabilization time(s)
≤3
Fuel consumption(MCR)
205g/kW·h
Noise(LP7M)
90dB(A)
