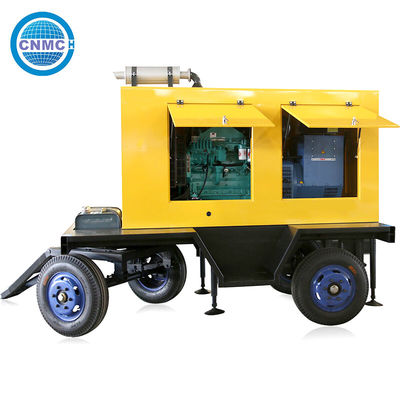

Mobile Trailer Type Generator 150KVA 120kw Multi Function Durable

Place of Origin China
Brand Name CNMC
Certification EPA/CE/ISO And So On
Model Number CN150GF
Minimum Order Quantity 1
Price USD8000-USD15000
Packaging Details Wooden case
Delivery Time 30 days
Payment Terms T/T, L/C, Western Union
Supply Ability 10000

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output Power 100kw Rated Current 900A
Frequency 50HZ/60HZ Warranty 3months-1year
Model Number CN150GF Alternator 100% Copper Alternator
Type Trailer Type Phase 1 Phase/3 Phase
Starting System Electric Strater Brand Cummins Perkins
Color White/Blue/Yellow
Highlight

Mobile Trailer Type Generator

,

Trailer Type Generator 150KVA

,

Multi Function Mobile Diesel Generator

Leave a Message
Product Description

Mobile Trailer Type Generator Portable 150KVA Diesel Generator Trailer Price 120kw Diesel Generator



CN150-GF is a reliable, powerful and compact in-line 6 cylinder diesel engine. It's designed to power a wide range of stand-by and prime power generator sets.

This 16 litre diesel engine utilizes dual-stage turbochargers and heavy-duty steel pistons to provide excellent power density.

It features a proven combustion technology with high-pressure unit injectors, resulting in high fuel efficiency and low exhaust emission levels.

The engine also features a compact and low weight design that is well-balanced, providing smooth operation with low noise and vibration. It's designed for easily accessible service points.

A wide range of options is available, including a heavy-duty frame, cooling package and air-filter that will suit a variety of installations.


Genset specs:
Engine Brands: Powered by Cummins,Powered by Perkins,Powered by Lovol,Powered by Deutz,Powered by Doosan, Powered by Mitsubishi, Powered by Kubota or other reliable Chinese engines such as Fawde and Laidong.
Rated output: 2 to 2,000kW/2 to 2,500kVA
Rated voltage: L-N 110 to 277V, L-L 220 to 480V
Rated frequency: 50/60Hz
Cooling method: closed water-cooled or air-cooled
Starting method: electric start or recoil start
Rated speed: 1,500/1,800/3,000/3,600rpm
Noise level: 56 to 75dB, 7 meters away

Alternator:
Brands: By Stamford, By Leroy Somer, By Mecc Alte and Keypower brushless alternator
Rated output: 8 to 2,000kW/10 to 2,500kVA
Rated voltage: L-N 110 to 277V, L-L 220 to 480V
Rated frequency: 50/60Hz
Phase: 3-phase, 4-wire or 1-phase, 2-wire
Connection: y or other type connection
Rated speed: 1,500/1,800rpm
Excitation: harmonic excitation or phase compound or brushless
Voltage regulation: AVR automatic
1.0% voltage regulation in static conditions (maximum)
Protection class: IP23
Control panel: Deepsea, ComAp, Smartgen

Description:

Genset model CN150GF
Prime power (KW/KVA) 150/188
Standby power (KW/KVA) 165/206
Frequency & voltage 50HZ, 400V
No. of Phase 3
Genset type Soundproof/silent type
Reference Dimension & Weight
(W*H, mm)/KGS
3500*1100*1800; 2100kgs



DIESEL ENGINE
Engine CUMMINS brand 6CTAA8.3-G2
Rated output 183KW
Rated Speed 1500RPM
Engine Type Vertical in-line, four stroke
No. of cylinder 6
Bore*stroke 114*135mm
Aspiration method Turbocharged after air-air cooled
Governor Electrical
Starting method Electric starting
Cooling method Forced water cooled
Displacement 8.3L
Compression ratio 16.5:1
Fuel consumption 205g/kw.h
Speed stability ≤5%
Total lubrication system capacity 24L
Coolant capacity(without radiator) 12.3L
Starter motor DC24V
Alternator AC24V
ALTERNATOR
Alternator brand & model Stamford/China reputed brand
Type Brushless & self-excited
No. of phase 3
Voltage 400V
Frequency 50HZ
Power Factor 0.8
Insulation Grade H
Protection Grade IP22/23
Altitude ≤1000m
