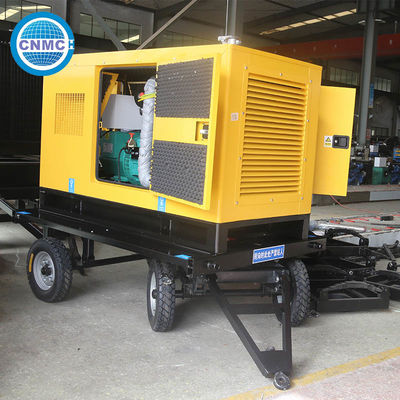

200kw 250kva Trailer Type Generator Mobile GenSet Multipurpose Automatic For Industrial

Place of Origin China
Brand Name CUMMINS PERKINS
Certification CE ISO
Model Number CN150GF
Minimum Order Quantity 1
Price USD8000-USD15000
Packaging Details Wooden case
Delivery Time 30 days
Payment Terms T/T, L/C, Western Union
Supply Ability 10000/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Warranty 400V Cooling System Type Water Cooling System
Frequency 50HZ/60HZ Model Number CN100GF
Speed 1500/1800RPM Engine 6BT5.9-G2
CONTROLLER BRAND Deepsea/Smartgen/ComAp/etc Protection Automatic
Output Power 100kw Options ATS,Soundproof Canopy
Supply Ability 100 Set/Sets Per Month
Highlight

Mobile Gen Set Multipurpose

,

Mobile Gen Set Automatic

,

Industrial 250 Kva Mobile Generator

Leave a Message
Product Description

Top Quality Cummins Silent Generator 200kw/250kva Power Genset Trailer Diesel Generators

200kw 250kva Trailer Type Generator Mobile GenSet Multipurpose Automatic For Industrial 0



Prime power: PRODUCT INFORMATION

This rating is for the supply of continuous electrical power (at variable load). There is no limit on the annual hours of operation and 10% overload power can be supplied for 1 hour in 12.

Standby power:

This rating is for the supply of continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted.

General Features:

1. Every generator set is subjected to a comprehensive test program which includes 50% load, 75% load,100% load, 110% load and the checking and proving of all control and safety shut-down functions;

2. 24V DC start motor;

3. Equipped 24V high performance maintenance-free lead-acid starting batteries and connecting with cables;

4. Equipped with industrial silencer and flexible exhaust hose;

5. Designed to Comply with ISO8528/GB2820;

6. Powered by Original UK PERKINS engine, Stamford/Leroy Somer/Meccalte/Marathon alternator and DeepSea/ComAp/SmartGen control panel.



Cummins Diesel Generator 50KVA

Genset Technical Data
Genset Model CN50GF
Rated Voltage 208/220/230/240V
Rated frequency 60HZ
P.F(COS) 0.8
Prime Power 45KVA
Standby Power 50KVA
Diesel Engine Technical Data
Engine Model Cummins 4BT3.9-G2
No. of Cylinders 6 cylinders, Vertical in line
Aspiration Turbocharged
Bore×Stroke 102mm x120mm
Displacement 3.9L
Compression ratio 17.3:1
Prime/Standby Power/Speed 40KW/44KW / 1800rpm
Speed Governor electrical
Cooling System Forced water cooling cycle
Fuel Consumption at 100% Load 221g/kwh@1800rpm
Alternator Data
Optional brands Stamford/Leroy Somer/Marathon/WellPower
Prime power 45KVA
Frequency/speed 60Hz/1800RPM
Exciter type Single bearing, Brushless, Self-excited with AVR
Power factor 0.8
Voltage adjust range ≥5%
Voltage regulation NL-FL ≤±1%
Insulation Grade H
Protection Grade IP23
Control Panel
Optional brands Deespea/Smartgen/ComAp
