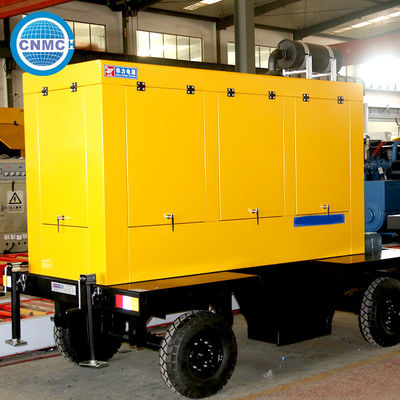

50HZ 60HZ Trailer Type Generator Diesel Mobile Generator Electric Portable Construction Generator

Place of Origin China
Brand Name CNMC
Certification EPA/CE/ISO And So On
Model Number CN150GF
Minimum Order Quantity 1
Price USD8000-USD15000
Packaging Details Wooden case
Delivery Time 30 days
Payment Terms T/T, L/C, Western Union
Supply Ability 10000/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Voltage 400/230V Rated Current 900A
Frequency 50HZ/60HZ Warranty 3months-1year
Model Number CN100GF Alternator Stamford
Type Trailer Type Phase 1 Phase/3 Phase
CONTROLLER BRAND DeepSea/Smartgen/BISON Starting System Electric Strater
Brand Cummins Perkins EXCITATION TYPE BRUSHLESS
Engine Power 100kw
Highlight

50HZ Diesel Mobile Generator

,

60HZ Diesel Mobile Generator

,

Electric Portable Construction Generator

Leave a Message
Product Description

Portable Cummins 100kw Trailer Type Generator Silent Generator 125kva Diesel Generator Price

50HZ 60HZ Trailer Type Generator Diesel Mobile Generator Electric Portable Construction Generator 0



Electrical Parameters
Wave distortion: <10%
Voltage fluctuation: <0.5%
Voltage / frequency fluctuation: <=0.5%
AVR self-regulated, voltage regulation rate: <=+- 1%
Radio interference restraining accords with stipulation of VDE0875-N and ISO8528

Genset specs:
Engine Brands: Powered by Cummins,by Perkins,by Lovol,by Deutz,by Doosan, by Mitsubishi, by Kubota or other reliable Chinese engines such as Fawde and Laidong.
Rated output: 2 to 2,000kW/2 to 2,500kVA
Rated voltage: L-N 110 to 277V, L-L 220 to 480V
Rated frequency: 50/60Hz
Cooling method: closed water-cooled or air-cooled
Starting method: electric start or recoil start
Rated speed: 1,500/1,800/3,000/3,600rpm
Noise level: 56 to 75dB, 7 meters away

Alternator:
Brands: By Stamford, By Leroy Somer, By Mecc Alte and Keypower brushless alternator
Rated output: 8 to 2,000kW/10 to 2,500kVA
Rated voltage: L-N 110 to 277V, L-L 220 to 480V
Rated frequency: 50/60Hz
Phase: 3-phase, 4-wire or 1-phase, 2-wire
Connection: y or other type connection
Rated speed: 1,500/1,800rpm
Excitation: harmonic excitation or phase compound or brushless
Voltage regulation: AVR automatic
1.0% voltage regulation in static conditions (maximum)
Protection class: IP23
Control panel: Deepsea, ComAp, Smartgen

Description:

Genset model CN100GF
Prime power (KW/KVA) 100/125
Frequency & voltage 50HZ, 400V
No. of Phase 1/3
Genset type Soundproof/silent type
Reference Dimension & Weight
(W*H, mm)/KGS
3200*1000*1500; 1100kgs



DIESEL ENGINE
Engine CUMMINS brand 6CTAA8.3-G2
Rated output 100KW
Rated Speed 1500RPM
Engine Type Vertical in-line, four stroke
No. of cylinder 6
Bore*stroke 114*135mm
Aspiration method Turbocharged after air-air cooled
Governor Electrical
Starting method Electric starting
Cooling method Forced water cooled
Displacement 8.3L
Compression ratio 16.5:1
Fuel consumption 205g/kw.h
Speed stability ≤5%
Total lubrication system capacity 24L
Coolant capacity(without radiator) 12.3L
Starter motor DC24V
Alternator AC24V
ALTERNATOR
Alternator brand & model Stamford/China reputed brand
Type Brushless & self-excited
No. of phase 3
Voltage 400V
Frequency 50HZ
Power Factor 0.8
Insulation Grade H
Protection Grade IP22/23
Altitude ≤1000m

50HZ 60HZ Trailer Type Generator Diesel Mobile Generator Electric Portable Construction Generator 1

50HZ 60HZ Trailer Type Generator Diesel Mobile Generator Electric Portable Construction Generator 2



50HZ 60HZ Trailer Type Generator Diesel Mobile Generator Electric Portable Construction Generator 3

50HZ 60HZ Trailer Type Generator Diesel Mobile Generator Electric Portable Construction Generator 450HZ 60HZ Trailer Type Generator Diesel Mobile Generator Electric Portable Construction Generator 550HZ 60HZ Trailer Type Generator Diesel Mobile Generator Electric Portable Construction Generator 650HZ 60HZ Trailer Type Generator Diesel Mobile Generator Electric Portable Construction Generator 750HZ 60HZ Trailer Type Generator Diesel Mobile Generator Electric Portable Construction Generator 850HZ 60HZ Trailer Type Generator Diesel Mobile Generator Electric Portable Construction Generator 9
