Water Cooling Trailer Type Generator Set Multipurpose 150kVA
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Speed | 1500/1800 RPM | Cooling System Type | Water Cooling System |
|---|---|---|---|
| Supply Ability | 50 Units Per Month | Warranty | 3months-1year |
| Model Number | CN100GF | Alternator | Stamford Alternator |
| Phase | 1 Phase/3 Phase | CONTROLLER BRAND | DeepSea/Smartgen/BISON |
| Brand | Cummins Perkins | EXCITATION TYPE | BRUSHLESS |
| Output Power | 100kw | Cooling Method | Water Cooling |
| Control Panel | Deepsea DSE6020 | ||
| Highlight | Water Cooling Trailer Type Generator,Trailer Type Generator Multipurpose,150kVA Trailer Generator Set |
||
Product Description

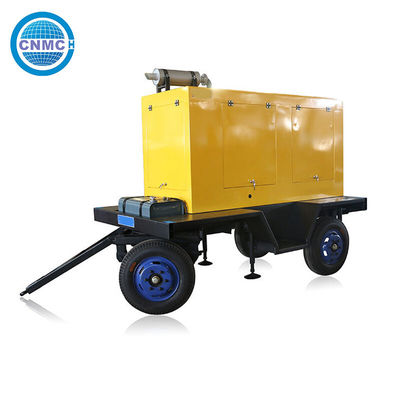

Stamford Alternator Silent Type Cummins 150kVA Trailer Type Generator Set Diesel Generators
Stamford Alternator 150kVA Trailer type Cummins Generator Set
The Cummins diesel engine is produced They special produce the B series, C series, L sereis, 6ZTAA series and QSZ series Cummins diesel engine for diesel generator rate output from 150kVA to 500kVA.
Diesel generator Specifications
125kVA diesel generator with Cummins diesel engine model 6BTAA5.9-G12 and Stamford alternator model UCI274 F prime output at 125kVA, standby output 150kVA.
Genset specs:
Engine Brands: Powered by Cummins,Powered by Perkins,Powered by Lovol,Powered by Deutz,Powered by Doosan, Powered by Mitsubishi, Powered by Kubota or other reliable Chinese engines such as Fawde and Laidong.
Rated output: 2 to 2,000kW/2 to 2,500kVA
Rated voltage: L-N 110 to 277V, L-L 220 to 480V
Rated frequency: 50/60Hz
Cooling method: closed water-cooled or air-cooled
Starting method: electric start or recoil start
Rated speed: 1,500/1,800/3,000/3,600rpm
Noise level: 56 to 75dB, 7 meters away
Alternator:
Brands: By Stamford, By Leroy Somer, By Mecc Alte and Keypower brushless alternator
Rated output: 8 to 2,000kW/10 to 2,500kVA
Rated voltage: L-N 110 to 277V, L-L 220 to 480V
Rated frequency: 50/60Hz
Phase: 3-phase, 4-wire or 1-phase, 2-wire
Connection: y or other type connection
Rated speed: 1,500/1,800rpm
Excitation: harmonic excitation or phase compound or brushless
Voltage regulation: AVR automatic
1.0% voltage regulation in static conditions (maximum)
Protection class: IP23
Control panel: Deepsea, ComAp, Smartgen
Description:
| 100KW/125KVA Cummins diesel generator | ||
| Diesel Generator | Genset Model | HG100GF |
| Rated Frequency | 50Hz | |
| Power Factor | 0.8 | |
| Rated Voltage | 400/230V or as per your requirement | |
| Rated Power(KW/KVA) | 40/50 | |
| Standby Power(KW/KVA) | 44/55 | |
| Phase/Wire | 3-phase,4-wire | |
| Open type Overall Size(mm) | 1800×800×1400 | |
| Open type Weight(kg) | 800 | |
| Diesel Engine | Model | 4BTA3.9-G2 |
| Type | water-cooled,inline,4-stroke,direct injection,wet cylinder liner,1500rpm | |
| Rated Power(KW/KVA) | 60/75 | |
| Intake Type | Turbocharged | |
| No. of Cylinder | 4 | |
| Bore×Stroke(mm) | 102×120 | |
| Piston Speed(m/s) | 7.9 | |
| Compression Ratio | 17.3:1 | |
| Noise Level(dBA) | ≤100 | |
| Exhaust Temperature(℃) | 84.3 | |
| Lube Oil Capacity(L) | 16 | |
| Rated Fuel Consumption(L/h) | 9 | |
| Displacement(L) | 3.9 | |
| Governing Type | Electrical | |
| Alternator | Model | UCI 224D (STAMFORD) |
| Rated Power(KW/KVA) | 40/50 | |
| Excitation Type | Brushless | |
| Insulation Class | H | |
