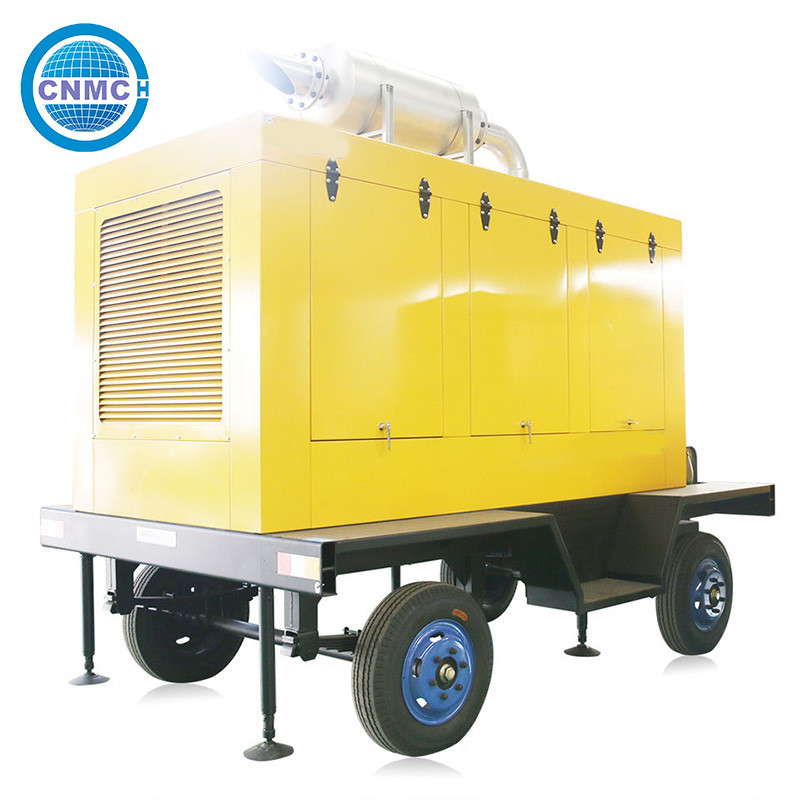

Mobile Industrial Portable Generator Electric Power 400V 230V

Place of Origin China
Brand Name CNMC
Certification EPA/CE/ISO And So On
Model Number CN30GF
Minimum Order Quantity 1
Price 3500usd-10000usd
Packaging Details wooden case
Delivery Time 10days
Payment Terms T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability 100set/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Voltage 400/230V Frequency 50/60Hz
Warranty 1 Year Place Of Origin Shandong, China
Brand Name CNMC Speed 1500/1800rpm
Control Panel Digital Control Panel Cooling System Water Cooled
Efficiency High Fuel Diesel
Model YANGDONG Diesel Generator Noise Level ≤85dB(A)
Operation Mode Automatic/Manual Phase 3
Power 20-1000KW Starting System Electric Start
Voltage 220V/400V Fuel Type Diesel
Generator Type Diesel Product Name PERKINS Diesel Generator
Start Type Electric Voltage Regulation Automatic
Fuel Tank Capacity 100L Power Output 400KW
Dimension 1800*800*1300mm Rated Current 50/60Hz
Weight 1000KG
Highlight

Mobile Industrial Portable Generator

,

Industrial Portable Generator 400V

,

230V Mobile Electric Power Generators

Leave a Message
Product Description

Diesel Generators Yangdong Y495D Engine Trailer 24kw Diesel Generator Price 30kva three phase Diesel Generator



We mainly manufactures and sells diesel generator sets, generator sets power for 3-2000kW,

the power of domestic diesel generator set is 3-2500kW, the mobile power station is 24-300kW,

the Marine emergency diesel generator set is 24-500kW and all kinds of imported diesel generator sets.

Over the years, we always adhere to high standards and strict product quality,

according to the price of survival, quality development enterprise principle, heavy contract, keep promise, honest, combined with advanced technology and test method, refinement and good quality, has won many repeat customers,

won the trust and support from all walks of life, my company's good reputation, high integrity,

sophisticated technology and equipment.



our company is one of the leading and largest world-wide producers and exporters for Diesel Generator (land diesel power generator&marine diesel generating set) and Gasoline Generator set from 1kva up to 2500kva. Transformed from a state owned enterprise and founded in 2005, Newtec's Factory and generators assembling centers have more than two decades of experience in the design, research and manufacturing of diesel genset in strict compliance with ISO and CE standards. Up to being now, more than 20,000 sets of high quality generaotr set from Newtec Power have been working well in many fields including railways, oil fields, Schools, hospitals, banks, supermarkets, industries, tall buildings, sea ports and military bases etc.





Mobile Industrial Portable Generator Electric Power 400V 230V 0



Diesel Generator Technical Parameters
Genset Model:CN-30GF
Rated Power:24KW/30KVA
Frequency:50HZ
Rated Speed:1500r/min
Rated Voltage:400v/380v/230v/220v/110v
Rated Current:43.2A
Phase:3 phase 4 wire
Start method:DC24V electric start
Open Type Size(L*W*h):1700×750×820mm
Weight:370KG
Engine Technical Parameters
Engine Brand:YANGDONG
Engine Model:Y495D
Rated Power:27KW
Number Of Cylinders:4 vertical in-line
Bore*Stroke:95*105mm
Start Mode:Electric start
Displacement:2.997L
Fuel Consumption:240g/kW·h
Alternator Technical Parameters
Optional Brands:Stamford/Leroy Somer/Mecc Alte/Marathon
Voltage adjust range:≥5%
Rated power factor:0.8
Protect Grade:IP23
Insulation Class:H
Controller
Optional brands
Deepsea/ComAp/Smartgen
The standard configuration of the generator set is as follows:
1. Industrial water-cooled diesel engine;
2. Single bearing anti-drip generator, IP22 protection, insulation class H;
3. 40°C ambient temperature radiator, double-layer heat dissipation;
4. Electric start;
5. Standard air filter;
6. Outlet switch;
7. The base is equipped with anti-vibration pads;
8. Muffler;
9. Battery;
10. Air switchgear (manual);
11. User manual.
