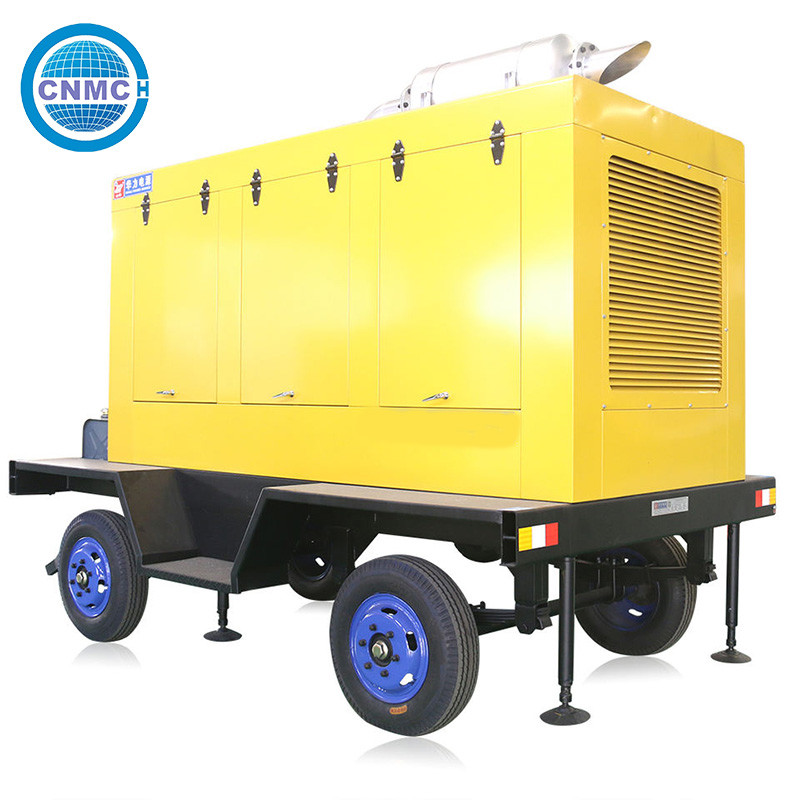

Rainproof Mobile Industrial Generators , 100kva 80Kw Movable Trailer Diesel Generator

  • Rainproof Mobile Industrial Generators , 100kva 80Kw Movable Trailer Diesel Generator
Place of Origin China
Brand Name CNMC
Certification EPA/CE/ISO And So On
Model Number CN80GF
Minimum Order Quantity 1
Price 3500usd-10000usd
Packaging Details wooden case
Delivery Time 10days
Payment Terms T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability 100set/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Place Of Origin Shandong, China Brand Name CNMC
Cooling System Water Cooled Model YANGDONG Diesel Generator
Noise Level ≤105dB(A) Phase 3 Phase
Power 20-1000kW Starting System Electric Start/Manual Start
Fuel Tank Capacity 100L-1000L Control System Automatic/Manual
Frequency 50/60Hz Service Life Long
Type Trailer Diesel Generator Dimension Customized
Excitation Mode AVR/PMG Fuel Consumption ≤208g/kw.h
Power Factor 0.8 Rated Frequency 50Hz/60Hz
Rated Power 20KW-1000KW Rated Speed 1500rpm/1800rpm
Rated Voltage 220V/380V/400V/415V/440V/660V/1140V Weight Customized
Highlight

Rainproof Mobile Industrial Generators

,

Mobile Industrial Generators 100kva

,

Movable Trailer Diesel Generator
Leave a Message
Product Description

High Quality Yangdong Power Generator 80Kw Diesel Rain Proof 100kva Generator Movable Trailer 80kw Generator

We mainly manufactures and sells diesel generator sets, generator sets power for 3-2000kW,

the power of domestic diesel generator set is 3-2500kW, the mobile power station is 24-300kW,

the Marine emergency diesel generator set is 24-500kW and all kinds of imported diesel generator sets.

Over the years, we always adhere to high standards and strict product quality,

according to the price of survival, quality development enterprise principle, heavy contract, keep promise, honest, combined with advanced technology and test method, refinement and good quality, has won many repeat customers



Why Choose Us:
1, Since 2000, with over 20years manufacturer experience.
2, Rich experience in OEM orders.
3, Advanced production equipment.
4,Own design team, can help you custom the packaging.





Rainproof Mobile Industrial Generators , 100kva 80Kw Movable Trailer Diesel Generator 0



Diesel Generator Technical Parameters
Genset Model:CN-80GF
Rated Power:80KW
Frequency:50HZ
Rated Speed:1500r/min
Rated Voltage:380v
Rated Current:100A
Phase:3 phase 4 wire
Start method:DC24V electric start
Silent Type Size(L*W*h):2400*1100*1600mm
Weight:800KG
Engine Technical Parameters
Engine Brand:YANGDONG
Engine Model:YD4GZLD
Rated Power:100KW
Number Of Cylinders:6 cylinder
Bore*Stroke:110*118mm
Start Mode:Electric start
Displacement:9L
Fuel Consumption:≤245g/kW·h
Alternator Technical Parameters
Optional Brands:Stamford/Leroy Somer/Mecc Alte/Marathon
Power:40KW
Rated power factor:0.8
Protect Grade:IP23
Insulation Class:H
Controller
Optional brands
Deepsea/ComAp/Smartgen
The standard configuration of the generator set is as follows:
1. Industrial water-cooled diesel engine;
2. Single bearing anti-drip generator, IP22 protection, insulation class H;
3. 40°C ambient temperature radiator, double-layer heat dissipation;
4. Electric start;
5. Standard air filter;
6. Outlet switch;
7. The base is equipped with anti-vibration pads;
8. Muffler;
9. Battery;
10. Air switchgear (manual);
11. User manual.





Rainproof Mobile Industrial Generators , 100kva 80Kw Movable Trailer Diesel Generator 1Rainproof Mobile Industrial Generators , 100kva 80Kw Movable Trailer Diesel Generator 2Rainproof Mobile Industrial Generators , 100kva 80Kw Movable Trailer Diesel Generator 3Rainproof Mobile Industrial Generators , 100kva 80Kw Movable Trailer Diesel Generator 4Rainproof Mobile Industrial Generators , 100kva 80Kw Movable Trailer Diesel Generator 5
