Small Portable YANGDONG Diesel Generator Stable Multipurpose

Place of Origin China
Brand Name CNMC
Certification EPA/CE/ISO And So On
Model Number CN10GF
Minimum Order Quantity 1
Price 3500usd-10000usd
Packaging Details wooden case
Delivery Time 10days
Payment Terms T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability 100set/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Diesel Generator Brand YANGDONG
Control System Automatic Control Cooling System Water Cooling
Frequency 50HZ/60HZ Fuel Diesel
Noise Level Low Noise Power 5-3000KW
Protection Grade IP23 Speed 1500RPM/1800RPM
Starting System Electric Start Voltage 380V/220V
Warranty 1 Year
Highlight

Small YANGDONG Diesel Generator

,

YANGDONG Diesel Generator Stable

,

Multipurpose Small Portable Diesel Generator

Leave a Message
Product Description

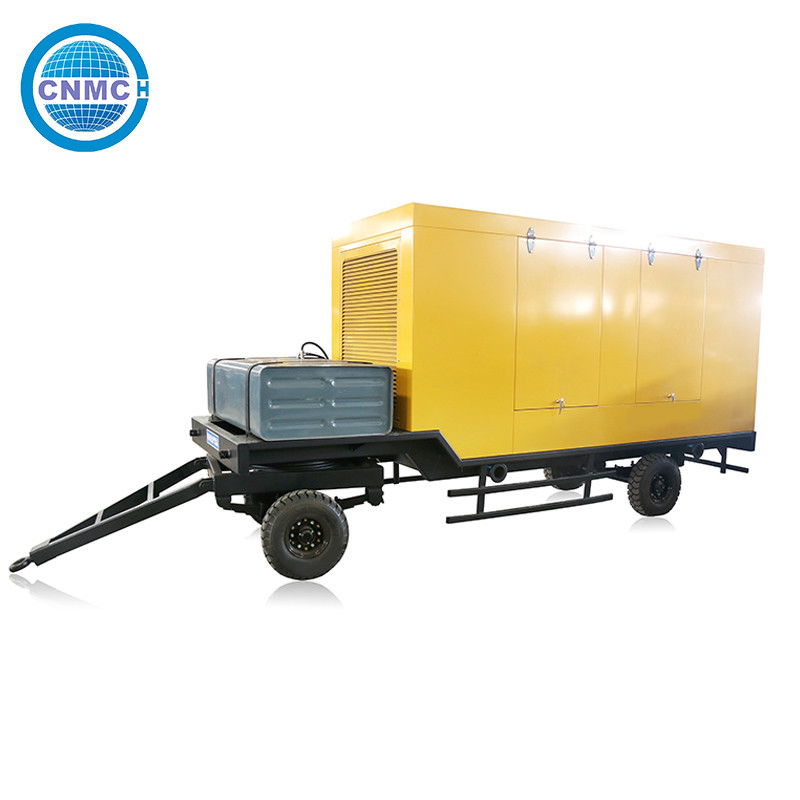

Small 8kw Yangdong Power Diesel Generator 10 Kva Diesel Generator Trailer Diesel Generator

our company is one of the leading and largest world-wide producers and exporters for Diesel Generator (land diesel power generator&marine diesel generating set) and Gasoline Generator set from 1kva up to 2500kva. Transformed from a state owned enterprise and founded in 2005, Newtec's Factory and generators assembling centers have more than two decades of experience in the design, research and manufacturing of diesel genset in strict compliance with ISO and CE standards. Up to being now, more than 20,000 sets of high quality generaotr set from Newtec Power have been working well in many fields including railways, oil fields, Schools, hospitals, banks, supermarkets, industries, tall buildings, sea ports and military bases etc.





Small Portable YANGDONG Diesel Generator Stable Multipurpose 0

YangDong ENGINE


Generating Sets
Generator Main Technical Data



Generator Model
CN-10GF



Prime power
10KVA /8KW



Rated Voltage
400V



Rated Frequency
50HZ



Rated Current
14A



Phase and Wire
3P4W



Rated Speed
1500RPM



Dimensions (L×W×H)(mm):
1140×700×800



Generator Weight—Silent Type (kg):
230KG



Engine Specificcation



Engine Model
YD380D



Number of Cylinders
3 cylinders in line



Cycle
4 Stroke



Aspiration
Turbocharged and Charge Air Cooled



Bore×Stroke
80*90mm



Standby Power/Speed
11KW/1500rpm



Speed Governor
Mechanical control of motor speed



Cooling System
Water cooled



Starter Motor
DC12V



Alternator Specificcation



sOptional Brand
sunshine



Power factor
0.8



Frequency/speed
50Hz/1500rpm



Insulation / Temperature rise:
H/H



Protection Grade
IP23



Total Harmonic Distortion (THD)
< 5%



Voltage accuracy:
0.0025



Monitor Control System



Optional Brand
DSE/Smartgen/COMAP
