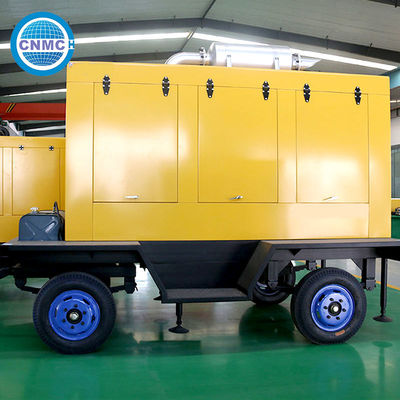

CE Cummins Trailer Type Generator Multi Function 400kw 500kva For House

  • CE Cummins Trailer Type Generator Multi Function 400kw 500kva For House
  • CE Cummins Trailer Type Generator Multi Function 400kw 500kva For House
Place of Origin China
Brand Name CNMC
Certification EPA/CE/ISO And So On
Model Number CN500GF
Minimum Order Quantity 1 set
Price USD 2500-3000/set
Packaging Details wooden case packing
Delivery Time 7 days
Payment Terms L/C, T/T
Supply Ability 1000 sets per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Trailer Diesel Genertor Type Trailer
Engine International Brand Engine And Chinese Brand Engine Options Automatic Transfer Switch
Generator Type Household Power Portable Trailer Diesel Generator Color Customers' Request
Controller Smartgen DeepSea Keyword Gnerator
Control Panel LCD Digital Display Use Industrial And House
Highlight

CE Trailer Type Generator

,

Trailer Type Generator Multi Function

,

House Cummins Trailer Generator
Leave a Message
Product Description

China Cheap Price 400kw 500kva Trailer Type Diesel Generator Cummins Engine Trailer Diesel Generator



Diesel generator Specifications
1. Powered by reliable engines
2. Branded alternator
3. Open type, silent type or super silent type generator
4. ISO, CE certified

Genset specs:
Engine Brands: Powered by Cummins,Powered by Perkins,Powered by Lovol,Powered by Deutz,Powered by Doosan, Powered by Mitsubishi, Powered by Kubota or other reliable Chinese engines such as Fawde and Laidong.
Rated output: 2 to 2,000kW/2 to 2,500kVA
Rated voltage: L-N 110 to 277V, L-L 220 to 480V
Rated frequency: 50/60Hz
Cooling method: closed water-cooled or air-cooled
Starting method: electric start or recoil start
Rated speed: 1,500/1,800/3,000/3,600rpm
Noise level: 56 to 75dB, 7 meters away

Alternator:
Brands: By Stamford, By Leroy Somer, By Mecc Alte and Keypower brushless alternator
Rated output: 8 to 2,000kW/10 to 2,500kVA
Rated voltage: L-N 110 to 277V, L-L 220 to 480V
Rated frequency: 50/60Hz
Phase: 3-phase, 4-wire or 1-phase, 2-wire
Connection: y or other type connection
Rated speed: 1,500/1,800rpm
Excitation: harmonic excitation or phase compound or brushless
Voltage regulation: AVR automatic
1.0% voltage regulation in static conditions (maximum)
Protection class: IP23
Control panel: Deepsea, ComAp, Smartgen



Genset model CN500GF
Genset rated power 400KW/500KVA
Rated voltage 400/230V (adjustable)
Rated current 720 Amps
Frequency 50 Hz
Power factor 0.8 Lagging
Connecting type 3 phase 4 wire
Cooling system Closed cycle water-cooled with fan, water tank
Overall dimension (L×W×H) mm 3100×1100×1650
Gross weight (kg) 3200
Diesel Engine
Brand YUCHAI
Model YC6T660-D31
Engine type 6 cylinders vertical in Line, 4 stroke,
Aspiration Turbocharged and intercooled
Rotating speed 1500 RPM
Engine cooling system Water-cooled
Fuel system Electronic control injection
Starting method By 24V batteries
Engine filter system Dry type air filter,fuel filter, oil filter, water filter
Displacement(L) 16.35
Bore×Stroke(mm) 145×165
Compression ratio 14.0:1
100% Load fuel consumption (l/h) ≤100.9
Lube capacity(L) 52
Alternator
Brand SHANHUA
Model HLF400
Excite type Brushless self-excited AVR regulation
Connecting type 3 phase 4 pole
Steady frequency change 0.50%
No load voltage ≥95%-105%
Steady voltage ≤±1%
Insulation class Class H
Protection grade IP23
