Movable Small Trailer Generator , 50kw-100kw Commercial Portable Generator
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Place Of Origin | China | Packaging Details | Export Plywood Case |
|---|---|---|---|
| Supply Ability | 50 Units Per Month | Warranty | 3months-1year |
| Model Number | CN100GF | Alternator | Stamford Alternator |
| Type | 3 Phase 4 Wire | Phase | 1 Phase/3 Phase |
| CONTROLLER BRAND | DeepSea/Smartgen/BISON | Brand | Cummins Perkins |
| EXCITATION TYPE | BRUSHLESS | Output Power | 100kw |
| Cooling Method | Water Cooling | Control Panel | Deepsea DSE6020 |
| Highlight | Movable Small Trailer Generator,Small Trailer Generator Commercial,100kw Commercial Portable Generator |
||
Product Description

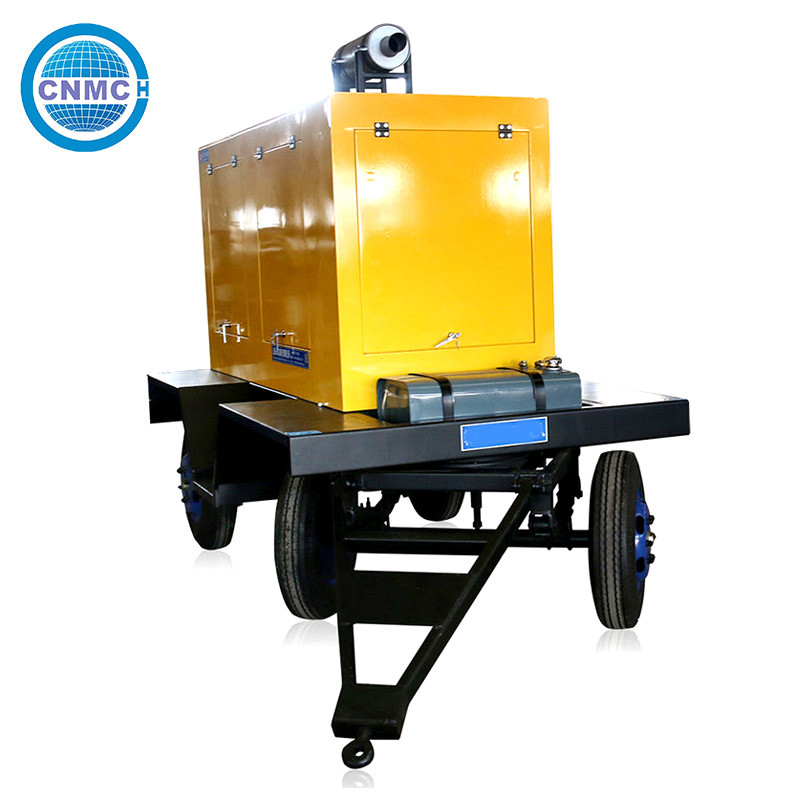

Mobile Trailer Type Generator 50kw To 100kw Silent Type Diesel Power Generator With Wheels And Canopy
The Cummins diesel engine is produced They special produce the B series, C series, L sereis, 6ZTAA series and QSZ series Cummins diesel engine for diesel generator rate output from 150kVA to 500kVA.
Diesel generator Specifications
125kVA diesel generator with Cummins diesel engine model 6BTAA5.9-G12 and Stamford alternator model UCI274 F prime output at 125kVA, standby output 150kVA.
Genset specs:
Engine Brands: Powered by Cummins,Powered by Perkins,Powered by Lovol,Powered by Deutz,Powered by Doosan, Powered by Mitsubishi, Powered by Kubota or other reliable Chinese engines such as Fawde and Laidong.
Rated output: 2 to 2,000kW/2 to 2,500kVA
Rated voltage: L-N 110 to 277V, L-L 220 to 480V
Rated frequency: 50/60Hz
Cooling method: closed water-cooled or air-cooled
Starting method: electric start or recoil start
Rated speed: 1,500/1,800/3,000/3,600rpm
Noise level: 56 to 75dB, 7 meters away
Alternator:
Brands: By Stamford, By Leroy Somer, By Mecc Alte and Keypower brushless alternator
Rated output: 8 to 2,000kW/10 to 2,500kVA
Rated voltage: L-N 110 to 277V, L-L 220 to 480V
Rated frequency: 50/60Hz
Phase: 3-phase, 4-wire or 1-phase, 2-wire
Connection: y or other type connection
Rated speed: 1,500/1,800rpm
Excitation: harmonic excitation or phase compound or brushless
Voltage regulation: AVR automatic
1.0% voltage regulation in static conditions (maximum)
Protection class: IP23
Control panel: Deepsea, ComAp, Smartgen
Description:
| 100KW/125KVA Cummins diesel generator | ||
| Diesel Generator | Genset Model | HG100GF |
| Rated Frequency | 50Hz | |
| Power Factor | 0.8 | |
| Rated Voltage | 400/230V or as per your requirement | |
| Rated Power(KW/KVA) | 40/50 | |
| Standby Power(KW/KVA) | 44/55 | |
| Phase/Wire | 3-phase,4-wire | |
| Open type Overall Size(mm) | 1800×800×1400 | |
| Open type Weight(kg) | 800 | |
| Diesel Engine | Model | 4BTA3.9-G2 |
| Type | water-cooled,inline,4-stroke,direct injection,wet cylinder liner,1500rpm | |
| Rated Power(KW/KVA) | 60/75 | |
| Intake Type | Turbocharged | |
| No. of Cylinder | 4 | |
| Bore×Stroke(mm) | 102×120 | |
| Piston Speed(m/s) | 7.9 | |
| Compression Ratio | 17.3:1 | |
| Noise Level(dBA) | ≤100 | |
| Exhaust Temperature(℃) | 84.3 | |
| Lube Oil Capacity(L) | 16 | |
| Rated Fuel Consumption(L/h) | 9 | |
| Displacement(L) | 3.9 | |
| Governing Type | Electrical | |
| Alternator | Model | UCI 224D (STAMFORD) |
| Rated Power(KW/KVA) | 40/50 | |
| Excitation Type | Brushless | |
| Insulation Class | H | |
