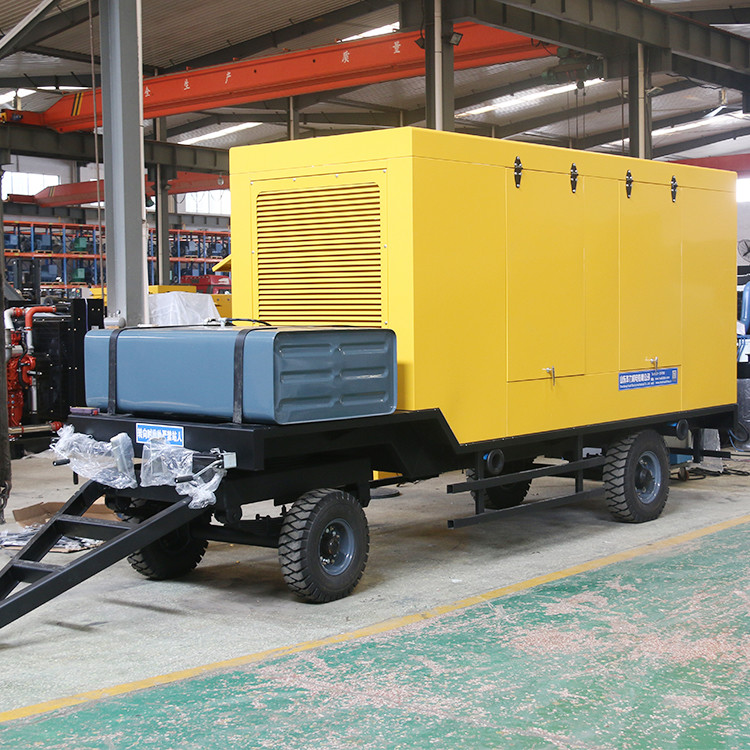

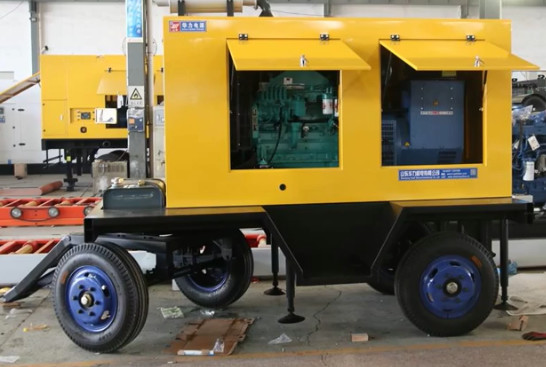

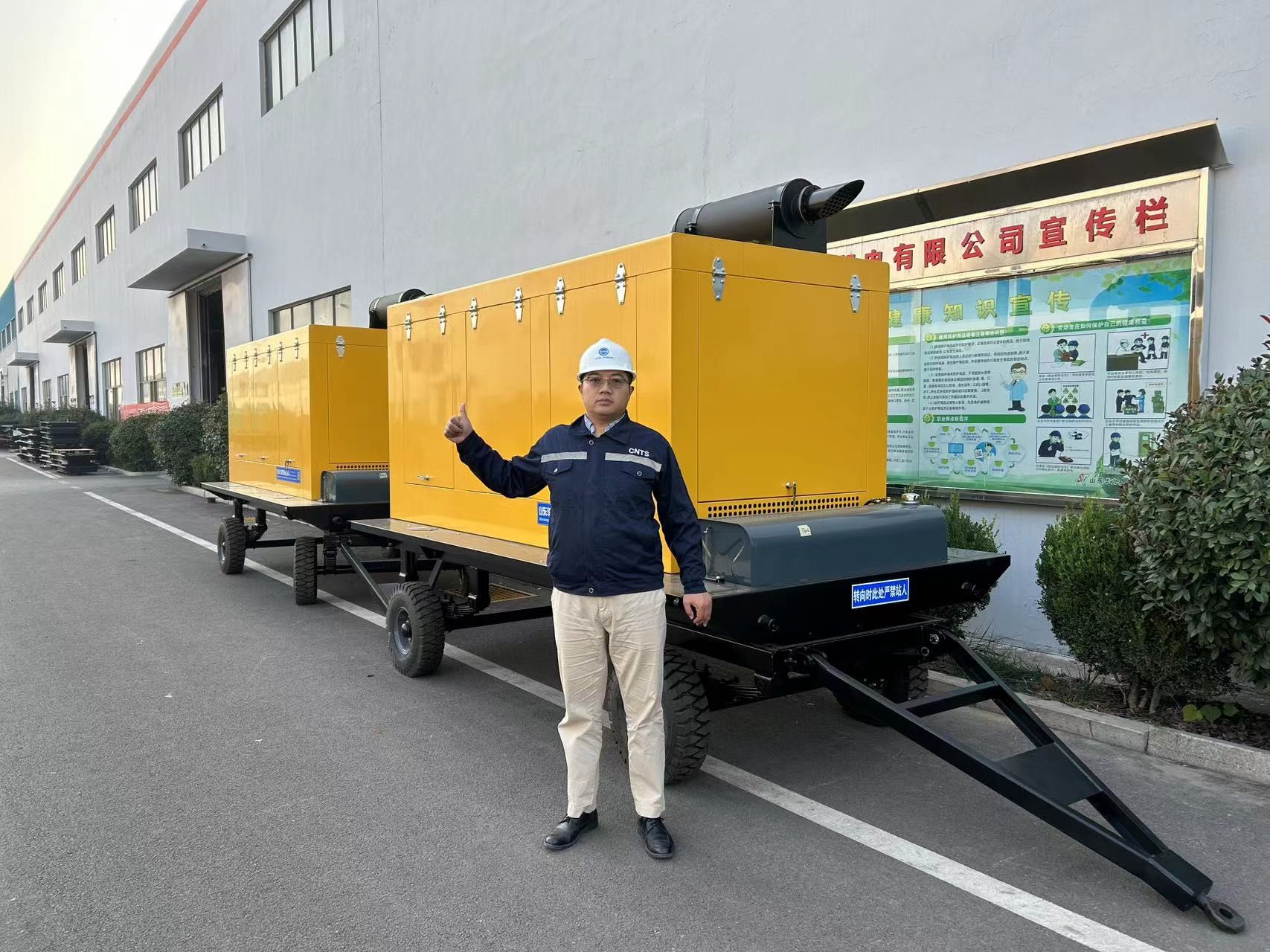

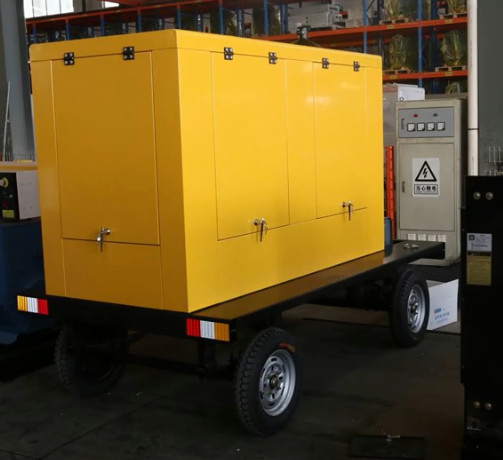

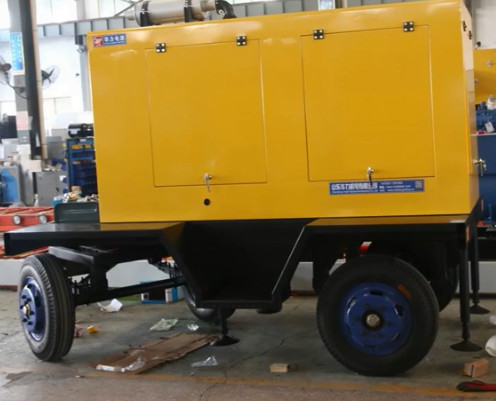

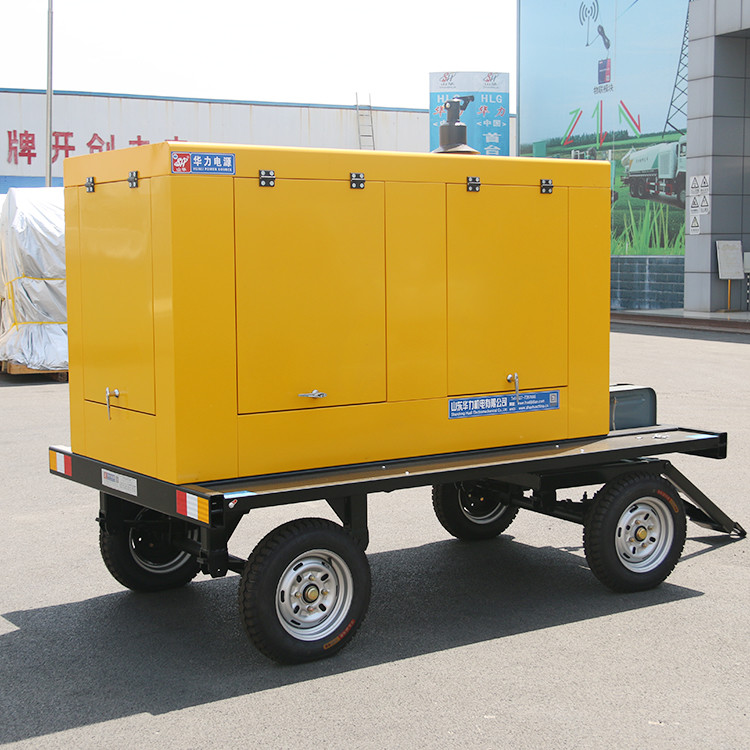

Industrial 50Hz Trailer Diesel Generator , Stable Mobile Generator Set 120KW 150KVA

Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Trailer Diesel Genertor | Type | Generator |
---|---|---|---|
Engine | CUMMINS PERKINS | Options | Automatic Transfer Switch |
Generator Type | Household Power Portable Trailer Diesel Generator | Color | Customers' Request |
Controller | Smartgen DeepSea | Keyword | Gnerator |
Control Panel | LCD Digital Display | Use | Industrial And House |
Capacity | High | Durability | High |
Efficiency | High | Fuel | Gasoline |
Maintenance | Low | Noise Level | Low |
Portability | Low | Power | High |
Reliability | High | Safety | High |
Size | Large | Warranty | Long |
Weight | Heavy | ||
Highlight | Industrial Trailer Diesel Generator,50Hz Trailer Diesel Generator,Stable Mobile Generator Set |
Factory Price Cheap 120KW 150KVA 50Hz Rated Power Trailer Diesel Generator Brand Engine Portable Generator Set
Diesel generator Specifications
1. Powered by reliable engines
2. Branded alternator
3. Open type, silent type or super silent type generator
4. ISO, CE certified
Genset specs:
Engine Brands: Powered by Cummins,Powered by Perkins,Powered by Lovol,Powered by Deutz,Powered by Doosan, Powered by Mitsubishi, Powered by Kubota or other reliable Chinese engines such as Fawde and Laidong.
Rated output: 2 to 2,000kW/2 to 2,500kVA
Rated voltage: L-N 110 to 277V, L-L 220 to 480V
Rated frequency: 50/60Hz
Cooling method: closed water-cooled or air-cooled
Starting method: electric start or recoil start
Rated speed: 1,500/1,800/3,000/3,600rpm
Noise level: 56 to 75dB, 7 meters away
Alternator:
Brands: By Stamford, By Leroy Somer, By Mecc Alte and Keypower brushless alternator
Rated output: 8 to 2,000kW/10 to 2,500kVA
Rated voltage: L-N 110 to 277V, L-L 220 to 480V
Rated frequency: 50/60Hz
Phase: 3-phase, 4-wire or 1-phase, 2-wire
Connection: y or other type connection
Rated speed: 1,500/1,800rpm
Excitation: harmonic excitation or phase compound or brushless
Voltage regulation: AVR automatic
1.0% voltage regulation in static conditions (maximum)
Protection class: IP23
Control panel: Deepsea, ComAp, Smartgen
200kw Diesel Generator | ||
Genset Model | Silent Type | CN200GF |
Prime Power(kva) | 250 | |
Standby Power(kva) | 275 | |
Rated Current(A) | 360 | |
Overall Size(mm) | Length(mm) | 2540 |
Width(mm) | 950 | |
Height(mm) | 1550 | |
Gross Weight(kg) | 2080 |
iesel Engine | Brand | |
Model | 6LTAA8.9-G2 | |
Type | water-cooled,4-stroke,direct injection,1500rpm | |
Rated Power(kVA) | 300 | |
Intake Type | Turbocharged | |
No.of Cylinder | 6.L | |
Bore x Stroke(mm) | 114*135 | |
Compression ratio | 15:1 | |
Mechanical Governor Rate | ≤ 5% | |
Electronic Governor Rate | ≤ 1% | |
Exhaust Temperature(°C) | 541 | |
Lub oil Capacity(L) | 20 | |
Rated Fuel Consumption | 46.8L/h | |
Displacement(L) | 8.9 | |
Starting method | DC24V Electric starter | |
Governing Type | Electric governor |
ernator | Brand | Stamford |
Model | UCI274H | |
Rated Power(kVA) | 250 | |
Power Efficiency | 93.90% | |
Voltage Regulation | automatic | |
Excitation Type | Brushless | |
Insulation Class | H |
