80KW Quiet Trailer Type Generator Soundproof With Steel Frame

Place of Origin	China
Brand Name	CNMC
Certification	EPA/CE/ISO And So On
Model Number	CN80GF
Minimum Order Quantity	1 set
Price	USD 2500-3000/set
Packaging Details	wooden case packing
Delivery Time	7 days
Payment Terms	L/C, T/T
Supply Ability	1000 sets per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Product Name	Trailer Type Generator	Type	Trailer
Engine	CUMMINS PERKINS	Options	Automatic Transfer Switch
Generator Type	Diesel Generator	Color	Customers' Request
Controller	Smartgen DeepSea	Keyword	Generator Set
Control Panel	LCD Digital Display	Certification	CE/EAP/ISO
Axle Type	Single Axle	Body Type	Enclosed
Brakes	Electric	Dimensions	8' X 8' X 10'
Frame Type	Steel	Fuel Capacity	50 Gallons
Hitch Type	Gooseneck	Lighting	LED
Power Source	Electric	Tire Size	225/75R15
Towing Capacity	10,000 Lbs	Warranty	1 Year
Weight	1000 Lbs
Highlight	80KW Trailer Type Generator , Trailer Type Generator Soundproof , Steel Quiet Trailer Generator

Leave a Message

Product Description

Brand Diesel Engine 80KW Rated Power Trailer Diesel Generator Set Silent Trailer Gensets Silent Diesel Generator Set

80KW Quiet Trailer Type Generator Soundproof With Steel Frame 0

Main Assemblies:

1, Diesel Engine (Cummins Brand)
2, Generator/Alternator (With AVR)
3, Standard Control Panel (Ordinary Type, LCD Type, ATS Type )
4, Common Base with Canopy(Including Base Oil Tank)

Standard Accessories:

1, Starting Battery and Connector Wire
2, The Vibration Reduction Rubber Gasket
3, Silencer
4, Exhaust Elbow
5, 8-hour Oil Tank
6, Spare Part Case
7, Technical Data
8, Water Tank Radiator,The belt-driving Cooling Fan ,Fan Safety Shield
9, Dry-type Air Filter
10, Fuel Filter
11, Lubricating Oil Filter
12, Starting Motor
13, Self-charging Generator
14, Frequency Meter/Water-thermometer/Oil Pressure Gauge/Battery Voltmeter

Optional Accessories:

1, Preheating Start System
2, Diesel Engine Thermal Protection System
3, Jacket Heater
4, Speeding, High Temperature, High Oil Temperature, Low Pressure Alarm System
5, Breaker
6, Antifreeze Liquid
7, Ground Wire
8, Water Temperature Safety Device
9, Machine Oil

Service Conditions:

-- Ambient Temperature: -25°C~40°C
-- Altitude: not exceed 1000 Meter
-- Rated Voltage: 230/380V or any voltage between 220-440V
-- Rated Frequency: 50Hz
-- Insulation Class: B/F/H
-- Working Duty: S1(Continuous)
-- Humidity: Lower than 95%

Diesel Generator Application

We produce and export 8-2000kw diesel generator sets. Diesel generator sets are widely used in field construction, high-rise buildings, schools, hospitals, industrial and mining enterprises, farms, villages and other places where electricity is needed.

Genset Model	CN80GF-80KW
Prime Power/Standby power	5KW to 3000KW
Frequency/Speed	50hz/1500 rpm	60hz/1800rpm
Voltage	380V-415V	110v-480v
Phase	Three phase	Single phase
Fuel type	Diesel	Gas

Engine Data:

Engine Brand	International Brand	Cummins, Perkins,.MTU,Doosan,Misubishi
Engine Brand	China Mainland Brand	Cummins,Perkins,Yuchai,,MTU
Model	80kw
Frequency	50hz/1500 rpm		60hz.1500rpm
Speed governor	Mechanical	Electric	ECM

Alternator Data:

Alternator	Famous brand	Stamford ,Leroy Somer,Mecc Alte,Marathon
	China Brand	Shanhua
Power Range	8kw to 3000kw
Insulation class	H
Phase/Wire	3 phase/ 4 wire	1 phase/ 2 wire

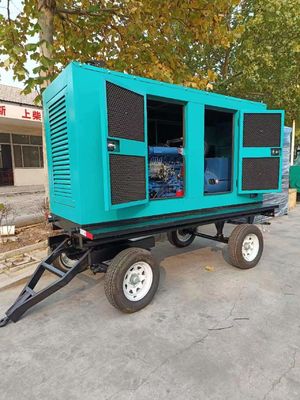

80KW Quiet Trailer Type Generator Soundproof With Steel Frame 1

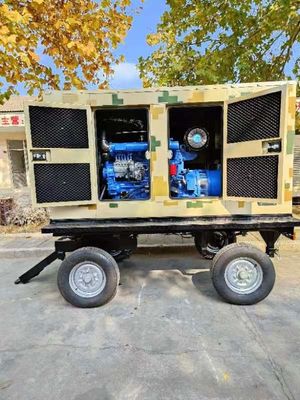

80KW Quiet Trailer Type Generator Soundproof With Steel Frame 2

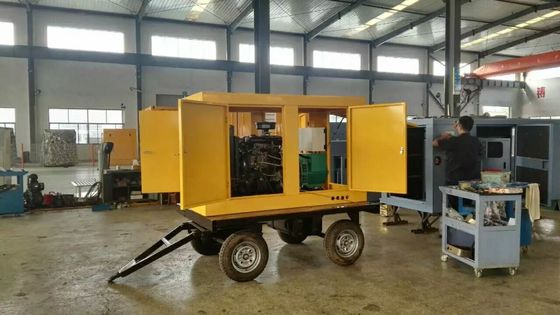

80KW Quiet Trailer Type Generator Soundproof With Steel Frame 3

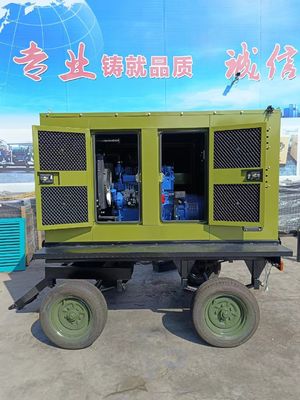

80KW Quiet Trailer Type Generator Soundproof With Steel Frame 4

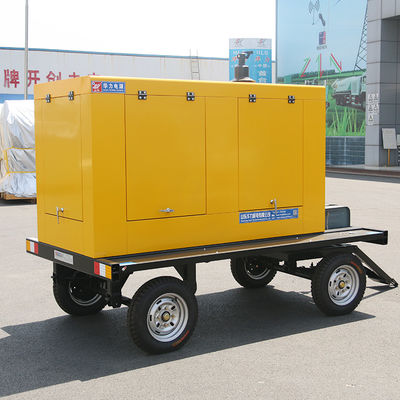

80KW Quiet Trailer Type Generator Soundproof With Steel Frame 5

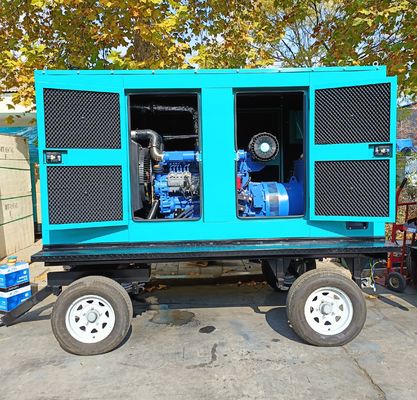

80KW Quiet Trailer Type Generator Soundproof With Steel Frame 6

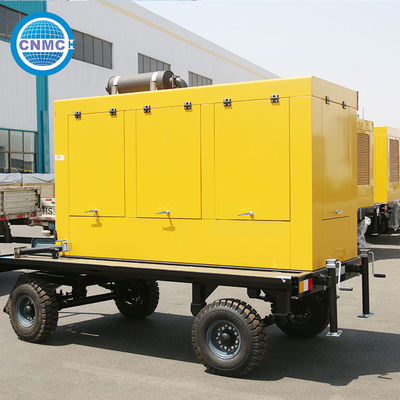

80KW Quiet Trailer Type Generator Soundproof With Steel Frame 7

80KW Quiet Trailer Type Generator Soundproof With Steel Frame 8

80KW Quiet Trailer Type Generator Soundproof With Steel Frame 9
