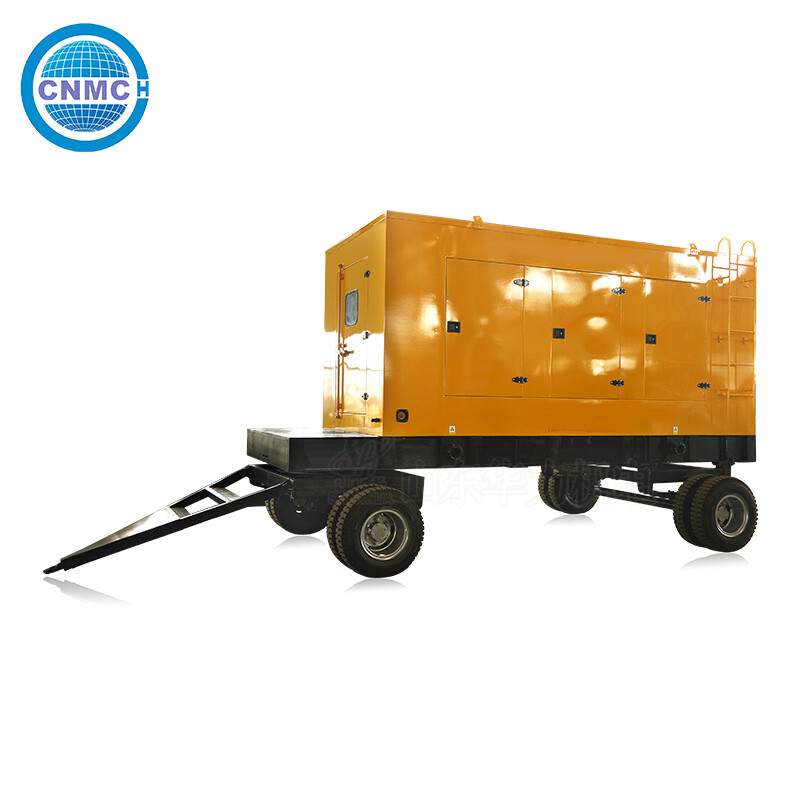

Practical Mobile Power Generator Mounted On Trailer 1500RPM 1800RPM
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Genset Model | CN80GF | Max.Power | 88KW |
|---|---|---|---|
| Frequency | 50HZ/60HZ | Brand Name | CNMC |
| Speed | 1500RPM/1800RPM | Engine Cylinder | 4/L |
| Cooling Method | Water-cooling System | ||
| Highlight | Practical Mobile Power Generator,Mobile Power Generator 1500RPM,1800RPM Generator Mounted On Trailer |
||
Product Description
EPA CE Certification Soundproof Diesel Generator Perkin Cummins Engine 100kva 80kw Trailer Generator Price
Alternator:
Brands: By Stamford, By Leroy Somer, By Mecc Alte and Keypower brushless alternator
Rated output: 8 to 2,000kW/10 to 2,500kVA
Rated voltage: L-N 110 to 277V, L-L 220 to 480V
Rated frequency: 50/60Hz
Phase: 3-phase, 4-wire or 1-phase, 2-wire
Connection: y or other type connection
Rated speed: 1,500/1,800rpm
Excitation: harmonic excitation or phase compound or brushless
Voltage regulation: AVR automatic
1.0% voltage regulation in static conditions (maximum)
Protection class: IP23
Control panel: Deepsea, ComAp, Smartgen
| Model | 400V / 50Hz / 1500RPM | Diesel Engine | Silent type Dimension (L*W*H)(mm*mm*mm) | ||
| Standby | Prime | Model | Brand | ||
| (KVA/KW) | (KVA/KW) | ||||
| YD-12 | 12/9.6 | 11/8.8 | YSAD380G | YANGDONG | 1860*900*1000 |
| YD-15 | 15 /12 | 13.5/10.8 | YD480G | 1900*900*1000 | |
| YD-25 | 25/20 | 22.5/18 | YSD490G | 2100*950*1100 | |
| YD-30 | 30/24 | 27.5/22 | Y4100G | 2200*990*1250 | |
| YD-38 | 37.5/30 | 35/28 | Y4102G | 2200*990*1250 | |
| Model | 120V - 240V 60Hz / 1800RPM | Diesel Engine With EPA tire 4 | Silent type Dimension (L*W*H)(mm*mm*mm) | ||
| Standby | Prime | Model | Brand | ||
| (KVA/KW) | (KVA/KW) | ||||
| YD-18 | 17.5/14 | 16/13 | YD385ZLD (EPA) | YANGDONG | 1860*900*1000 |
| YD-25 | 25/20 | 22.5/18 | YD480ZLD (EPA) | 1900*900*1000 | |
| YD-30 | 30/24 | 27.5/22 | YND485ZLD (EPA) | 2100*950*1100 | |
| YD-44 | 44/35 | 40/32 | YSD490ZLD (EPA) | 2200*990*1250 | |
| YD-46 | 46/37 | 42.5/34 | YSD490ZLD (EPA) | 2200*990*1250 | |
Controller syste
1. PLC-800 model Standard control panel, including digital genset control model:HGM170, voltmeter, frequency meter, ampere meter, water temperature gauge, oil temperature gauge, oil pressure gauge, emergency button, preheating button, battery voltage gauge, running calculagraph, fuel level meter, circuit breaker
2. PLC-8000 (AMF) model Standard control panel, including digital LED genset control model:HGM6120, key switch, fuel level meter, Power indicator lamp, circuit breaker
Optional: Automatic transfer switch (ATS)
Automatic parallel operation system
Accessories
Standard accessories: Standard 40 radiator mounted on skid. Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wire, Standard tool kit, operation manual and document
