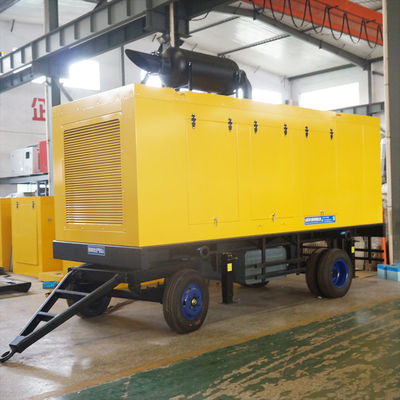

50HZ 60HZ Trailer Type Generator Water Cooling 125KW 150KVA 400V

Place of Origin China
Brand Name CNMC
Certification EPA/CE/ISO And So On
Model Number CN150GF
Minimum Order Quantity 1
Price USD8000-USD15000
Packaging Details Wooden case
Delivery Time 30 days
Payment Terms T/T, L/C, Western Union
Supply Ability 10000/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Smartgen HGM1780 Rate Voltage 400V
Product Name Product Name Model Number CN100GF
Frequency 50HZ/60HZ Phase 1 Phase/3 Phase
CONTROLLER BRAND DeepSea/Smartgen/BISON Brand Cummins Perkins
EXCITATION TYPE BRUSHLESS Cooling Method Water Cooling
Control Panel Deepsea DSE6020 Payment Terms T/T, L/C
Delivery Time 25 Working Days After Received Your Payment
Highlight

50HZ Trailer Type Generator

,

60HZ Trailer Type Generator

,

Water Cooling 150 KVA Trailer Generator

Leave a Message
Product Description

Trailer Diesel Generator Main specifications of generating set:



Genset Genset Model CN28GF
Standby power(KVA / KW) 28/22
Continuous power(KVA / KW) 25/20
Rate Voltage 400v
Rate Frequency 50Hz
Controller Model Deep-sea DSE3110
Open Dimension(MM)
Open Weight(KGS)
Silent Dimension(MM)
Silent Weight(KGS)
Engine Engine Brand Cummins
Engine model 4B3.9-G2
Engine Characters Water-cooled,in line,4-stroke,direction,wet cylinder liner,1500rpm
Engine Prime Power 24kw
Engine Standby Power 27kw
Aspiration Natural
Cylinder 4
Bore x stroke (mm) 102 x 120
Displacement (L) 3.9
Compression Ratio 16.5:1
Frequency Regulation, Stead State Mechanical speed governing ratio 5%, Electronic speed governing ratio 1%
Exhaust Gas Temperature(℃) 380
Fuel Consumption
2)At Prime Power (L/h) 6.7
3) At 75% Prime Power (L/h) 5.2
4)At 50% Prime Power (L/h) 4
Lube Oil Capacity (L) 11
Lube Consumption (g/kw.h) < 1 with 100h of operation,< 0.4 after 100h of operation
Genset Water Coolant Capacity 18
Alternator Alternator Brand Stamford
Model PI144E
Continuous Output 20kw/25kva
Type 4 Pole, Rotating Field
Exciter type Brushless, Self-excited
Voltage regulator AVR.440
Voltage regulation ±1.0% with 4%engine governing
Insulation Class H
Protection IP23
Rated Power factor 0.8
Winding leads 12
Waveform distortion No-load < 1.5%
Altitude ≤1000m





Features of generator powered by Cummins:



Industrial water-cooled diesel engine

Single bearing alternator with insulation class H and IP 23

50 centigrade thermometer ambient temperature radiator with double deck

Electronic governor



Standard air filter

controller DSE3110

Merlin Gerin/ABB circuit breaker

Steel base frame with anti-vibration mounting

Daily fuel tank 9dB muffler



24V batteries

Flexible fuel lines & lube oil drain cock

Users manual






Benefits of silent generator:

1. A soundproof canopy can significantly reduce the noise level
2. All series of soundproof generator sets can be lifted from eye-lifting hooks on the top.
3. High-quality coating suitable for all weather conditions and avoids rusting for a long period of time.
4. More compact and strong structure, muffle built-in lower noise level.
5. Enlarge the area of air intake and discharge.
6.Separated output cable box, easy for cable connections (especially suitable for construction, leases).
7.Outdoor box with full spray treatment, higher climate-proof.
8.External emergency stop button, easy to operate.
9.Inside the canopy using fire-retardant sound-absorbing material
10.Adapt to all weather conditions
11.Ease of installation, operation, and maintenance.



Open Diesel Generator Relative products:


Open or Silent diesel generator set power by Cummins, Perkins, Deutz and Chinese power brand, power range from 8KVA to 2000KVA.



Open Diesel Generator Inspection:


1) Each generator shall be tested at the manufacturer’s workshop before shipment.
2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the customer in advance of the test date notification.
3) All accompanying documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters, and the Performance Index.


Open Diesel Generator Guarantee:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Open Diesel GeneratorOur Service:

2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What’s the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What’s the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
