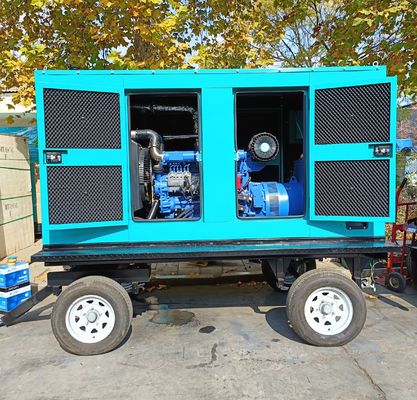

CUMMINS Mobile Trailer Type Generator Three Phase 50Hz 250kva 200kw With ATS

  • CUMMINS Mobile Trailer Type Generator Three Phase 50Hz 250kva 200kw With ATS
Place of Origin China
Brand Name CUMMINS PERKINS
Certification CE ISO
Model Number CN100GF
Minimum Order Quantity 1
Price USD8000-USD15000
Packaging Details Wooden case
Delivery Time 30 days
Payment Terms T/T, L/C, Western Union
Supply Ability 10000/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Current 360A Cooling System Type Water Cooling System
Frequency 50HZ Weight 1300KG
Speed 1500RPM Prime Power 200kw/250kva
Protection Automatic Alternator Brand Stamford
Phase 3 Phase
Highlight

CUMMINS Trailer Type Generator

,

Trailer Type Generator ATS

,

Three Phase Cummins Mobile Generator
Leave a Message
Product Description

CUMMINS Three Phase 50Hz 250kva 200kw Diesel Generator Silent Type Durable Power GeneratorsWith ATS


6LTAA8.9-G2 Diesel Engine
Belt drive system : Belt drive system with tensioner offering automatic belt tension.
Maintenance: Both cylinder bore and cylinder head valve guide tube can be repaired by resisting.
Connecting rod: Alloy steel with high strength and inclined cutting.
Crankshaft: Alloy steel with whole bearing supporting and bearing and round corner harden.
Cylinder block: Dragon door style cylinder block without liner and with water pump turbo house resisted.
Fuel system: AD fuel injection pump with electrical governor or mechanical governor.
Garret turbocharger: Bypass high efficient turbocharger.
Piston: Silicon- aluminium alloy piston with dual Ni-resist and oil cooling.
Starting function: Be started at -12℃ without assistant installation; Be started at -35℃ with assistant installation.
Fuel consumption: Excellent fuel consumption with B.S.F.C 215g/kw.h.
Construction characteristic: Simple and compact construction, fewer components and light weight.

Huali Alternator

Wiring design: alternator wiring adopts 2/3 pitch winding unique technology new sine winding design, to avoid excessive neutral currents under the circumstances of the generator asymmetric load, nonlinear load, parallel connection
Fully damp design:Rotor complete continuous and stable strong damp structure design, strengthen the alternator anti- interference capability, to ensure the alternator stable running and non oscillation under different working condition
Excitation system design: unique orthogonal brushless harmonic excitation principle design excitation system, to ensure alternator
self-excitation and dynamic self-following future, unique AVR design to ensure good adjusting and control protection
characteristics

Product Paramenters
Prime power(KW)
200
Full load oil consumption(g/kwh)
≤202
Standard power(KW)
220
Oil model
Chinese No.0(Under room temperature)
Generator capacity(KVA)
250
Coolant flow(m3/min)
/
Rated RPM(RPM)
1500
Gas rate(m3/min)
/
Rated voltage(V)
400
Smoke exhaust rate(m3/min)
/
Rated current(A)
360
Air exhaust rate(m3/min)
/
Rated frequency(Hz)
50
Cooling mode
Closed water cooling
Rated power factor
0.8
Oil capacity
27.6
Phase No.
3
Coolant capacity
11.1
Generator reference weight
1700kg
Reference weight(kg)
650
Generator reference size(long*wide*height)
2570*960*1550mm
Alternator model
HLF-200
Engine model
6LTAA8.9-G2
Rated voltage(V)
400
Engine rated power(KW)
220
Rated frequency(Hz)
50
Engine standby power(KW)
240
Rated RMP
1500
Engine structure characteristics
Four-stroke, turbo charger
Power factor
0.8
Cylinder/arrangement
6 cylinder/Line type
Phase and wiring mode
Three-phase star-mode
Bore*stroke(mm)
114*145
Efficiency(%)
95.19
Displacement(L)
8.9
Excitation mode
Brushless excitation
Compression ratio
16.6:1
Insulation grade
H
Start mode
Electronic start
Protection grade
IP21


Reference weight(Kg)
820


Reference weight(Kg)
610
